EXTERNAL EQUIPMENT SETUP
16
EXTERNAL EQUIPMENT SETUP

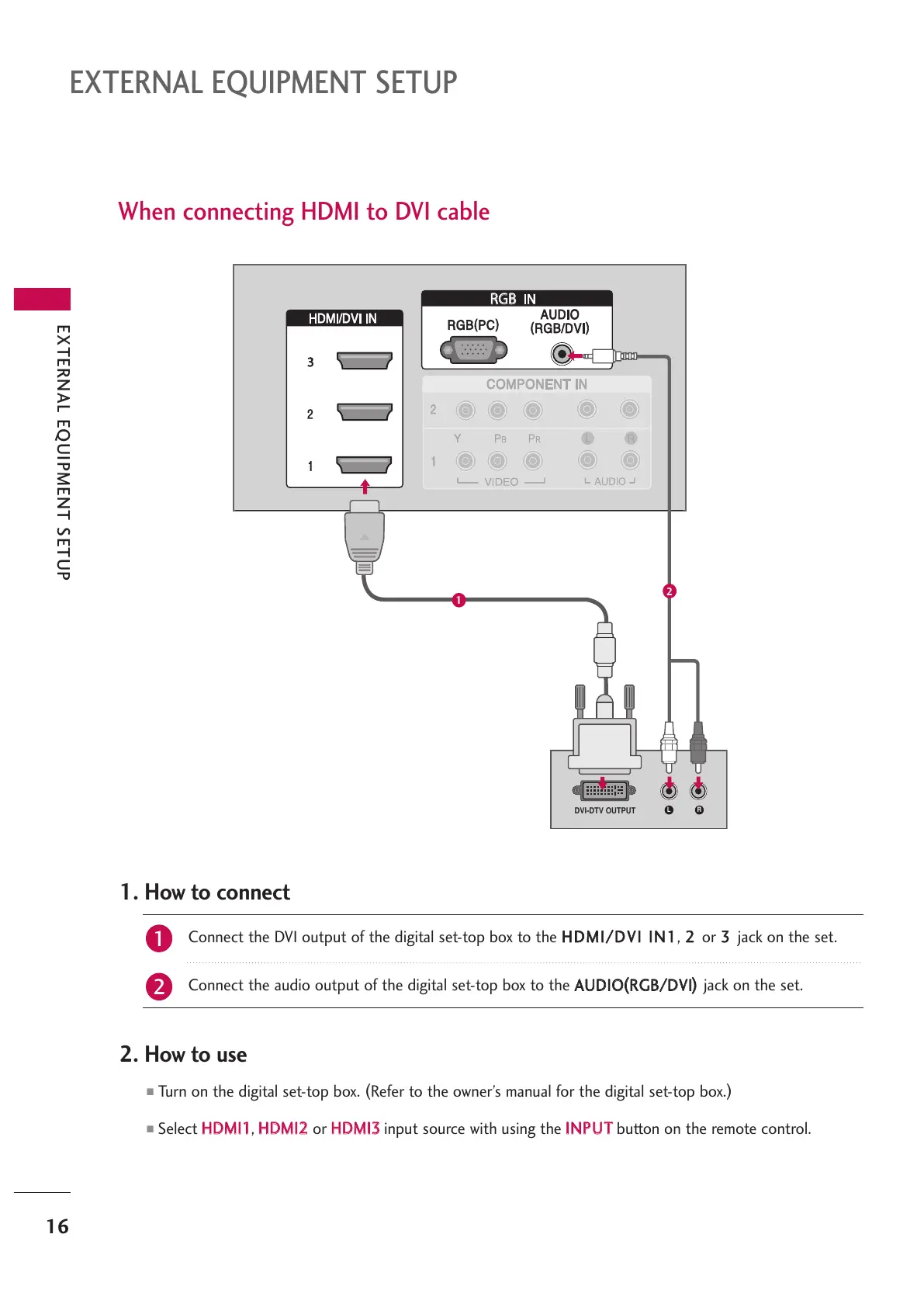

When connecting HDMI to DVI cable
L R
DVI-DTV OUTPUT
RGB
RGB
3
Connect the DVI output of the digital set-top box to the
HHDDMMII//DDVVII IINN11
,
22
or
33
jack on the set.
Connect the audio output of the digital set-top box to the
AAUUDDIIOO
((
RRGGBB//DDVVII
))
jack on the set.
1. How to connect
■
Turn on the digital set-top box.
(
Refer to the owner’s manual for the digital set-top box.
)
■
Select
HHDDMMII11
,
HHDDMMII22
or
HHDDMMII33
input source with using the
IINNPPUUTT
button on the remote control.
2. How to use
2
1
1
2
