LG 55SE3B User Manual

71
TO CONTROL MULTIPLE PRODUCTS
ENGLISH
Communication Parameter
• Baud Rate 9600 BPS
• Data Length 8 bit
• Parity Bit None
• Stop Bit 1 bit
• Flow Control None
• Communication Code ASCII code
• Use a crossed (reverse) cable

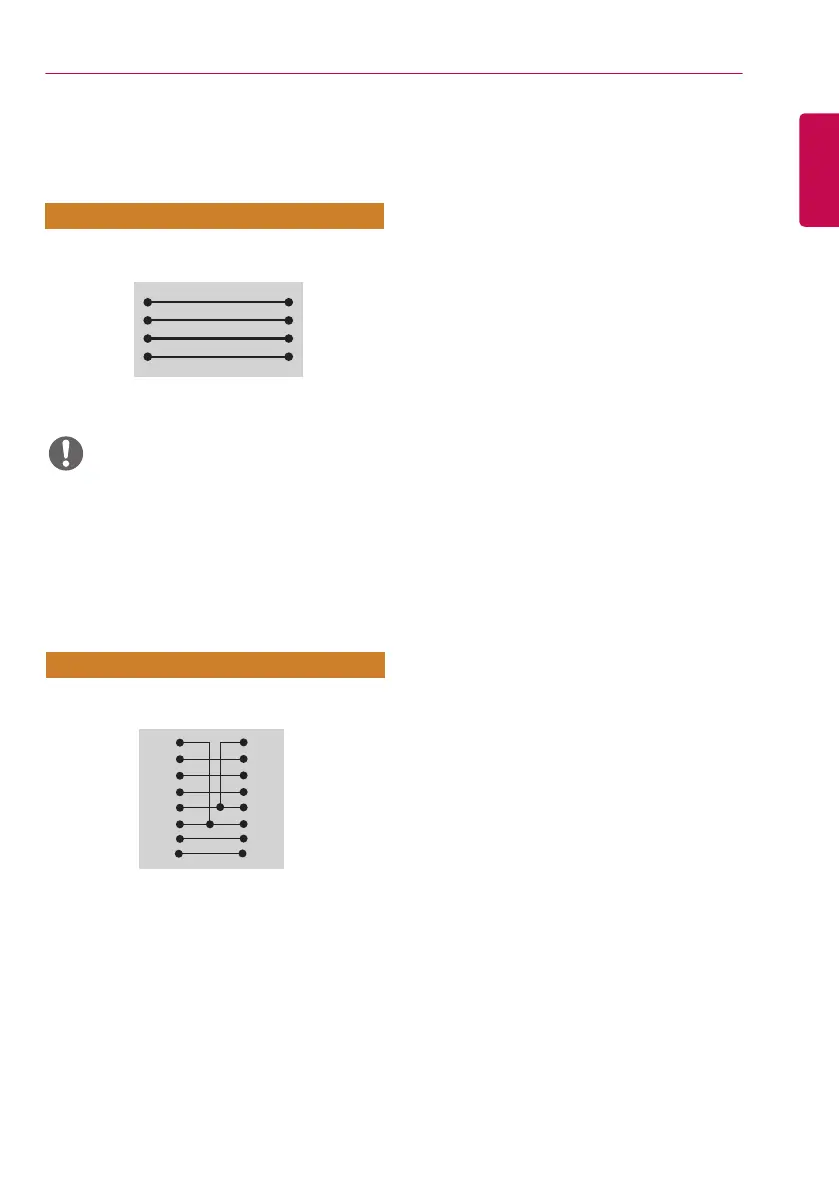

RS-232C Configurations
8-Wire Configurations (Standard RS-232C cable)
PC RS-232C
Gender
DCD
RXD
TXD
GND
DTR
DSR
RTS
CTS
DCD
TXD
RXD
GND
DSR
DTR
CTS
RTS
1
2
3
5
4
6
7
8
1
3
2
5
6
4
8
7
D-Sub 9 D-Sub 9
(Female) (Female)
RS-232C Cable
• When using three-wire connections (non-
standard), an IR daisy chain cannot be used.
• If you want to control multiple units
simultaneously, use 3.5 mm 4-pole cables (sold
separately).
4P Cable
4-Wire Configurations (Standard RS-232C cable)
Set
Set
NOTE
RXD
TXD
GND
IR
TXD
RXD
GND
IR

LG 55SE3B Specifications

General

Panel life	30000 h
Color gamut	68 %
Response time	12 ms
Display diagonal	55 \
Display brightness	350 cd/m²
Display technology	LED
Native aspect ratio	16:9
Supported video modes	1080i, 1080p, 720p
Contrast ratio (dynamic)	5000000:1
Contrast ratio (typical)	1100:1
Display number of colors	1.073 billion colors
Audio input	1
Sound modes	Game, Music, Standard, Movie, News, Sports
Temperature indicator	Yes
USB ports quantity	2
Multi-display supported	-
On Screen Display (OSD) languages	DUT, NOR, ENG, ESP, ITA, SWE, CHI (SIMPL), POR, CHI (TR), FIN, FRE, KOR, RUS, CZE, GRE, DAN, DEU
Product color	Black
Product design	Digital signage flat panel
Panel mounting interface	300 x 300 mm
Certification	UL / cUL / CB / TUV / KC / FCC Class \
RMS rated power	20 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.5 W
Power consumption (typical)	70 W
Sustainability certificates	ENERGY STAR
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 80 %
Cables included	AC, VGA
Package depth	149.86 mm
Package width	1330.96 mm
Package height	812.8 mm
Package weight	21500 g

Weight and Dimensions

Depth	38.6 mm
Width	1238 mm
Height	714.9 mm
Weight	17300 g
