Communication Parameter
• Baud Rate : 9600 BPS
• Data Length : 8 bit
• Parity Bit : None
• Stop Bit : 1 bit
• Flow Control : None
• Communication Code : ASCII code
• Use a crossed (reverse) cable

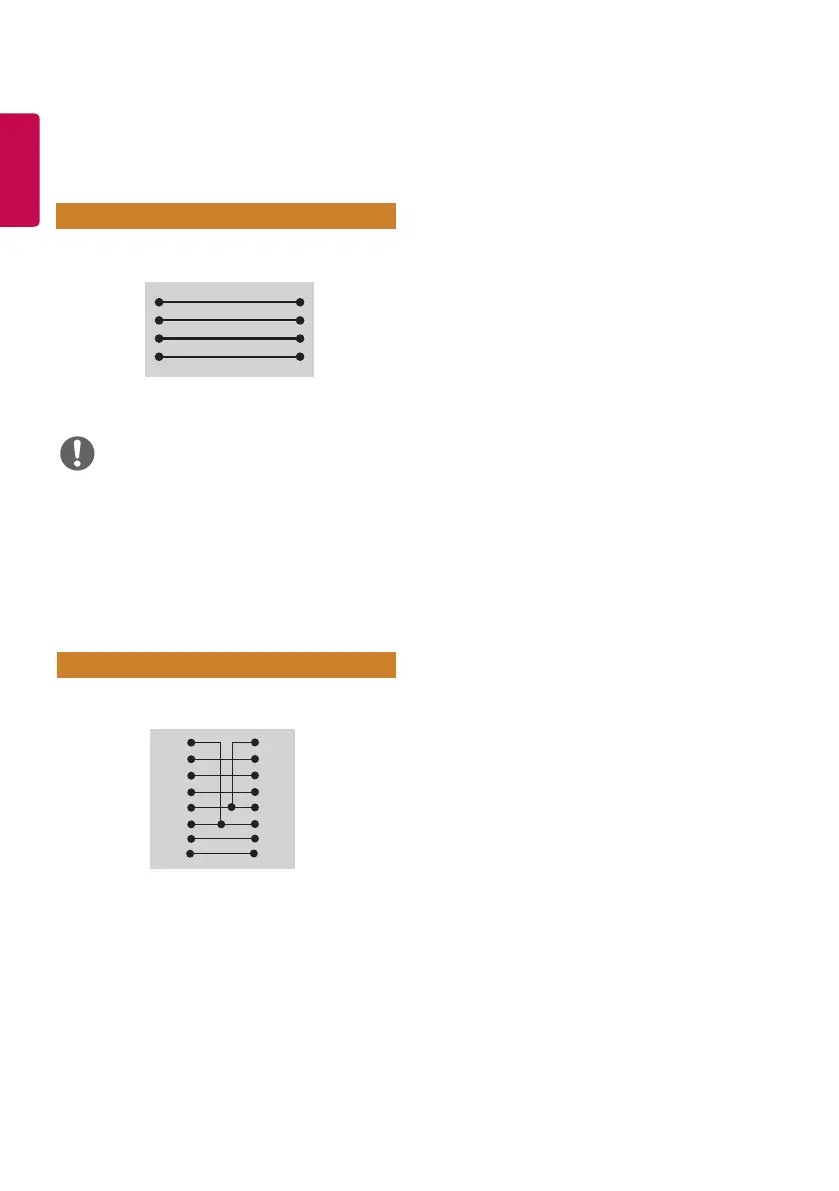

RS-232C Configurations
8-Wire Configurations (Standard RS-232C cable)
PC RS-232C
Gender
DCD
RXD
TXD
GND
DTR
DSR
RTS
CTS
DCD
TXD
RXD
GND
DSR
DTR
CTS
RTS
1
2
3
5
4
6
7
8
1
3
2
5
6
4
8
7
D-Sub 9 D-Sub 9
(Female) (Female)
RS-232C Cable
• When using three-wire connections (non-
standard), an IR daisy chain cannot be used.
• If you want to control multiple units
simultaneously, use 3.5 mm 4-pole cables (sold
separately).
4P Cable
4-Wire Configurations (Standard RS-232C cable)
Set
Set
NOTE
RXD
TXD
GND
IR
TXD
RXD
GND
IR

LG 55SH7DB Specifications

General

Display Size	55 inches
Panel Technology	IPS
Viewing Angle (H x V)	178° x 178°
Operating Hours	24/7
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 60°C
Standby Power Consumption	0.5 W
Frequency	50/60Hz
VESA Mount	300 x 300 mm
Display Type	LCD
Resolution	1920 x 1080 (Full HD)
Contrast Ratio	1200:1
Response Time	12 ms
Input	HDMI, USB
Output	Audio Out
External Control	RS-232C, RJ45
Orientation	Landscape & Portrait
Input Voltage	100-240 V
Bezel Width	11.9 mm (Even Bezel)
