LG A2UN186FA0 - Outdoor Unit Installation and Piping

- 36 -

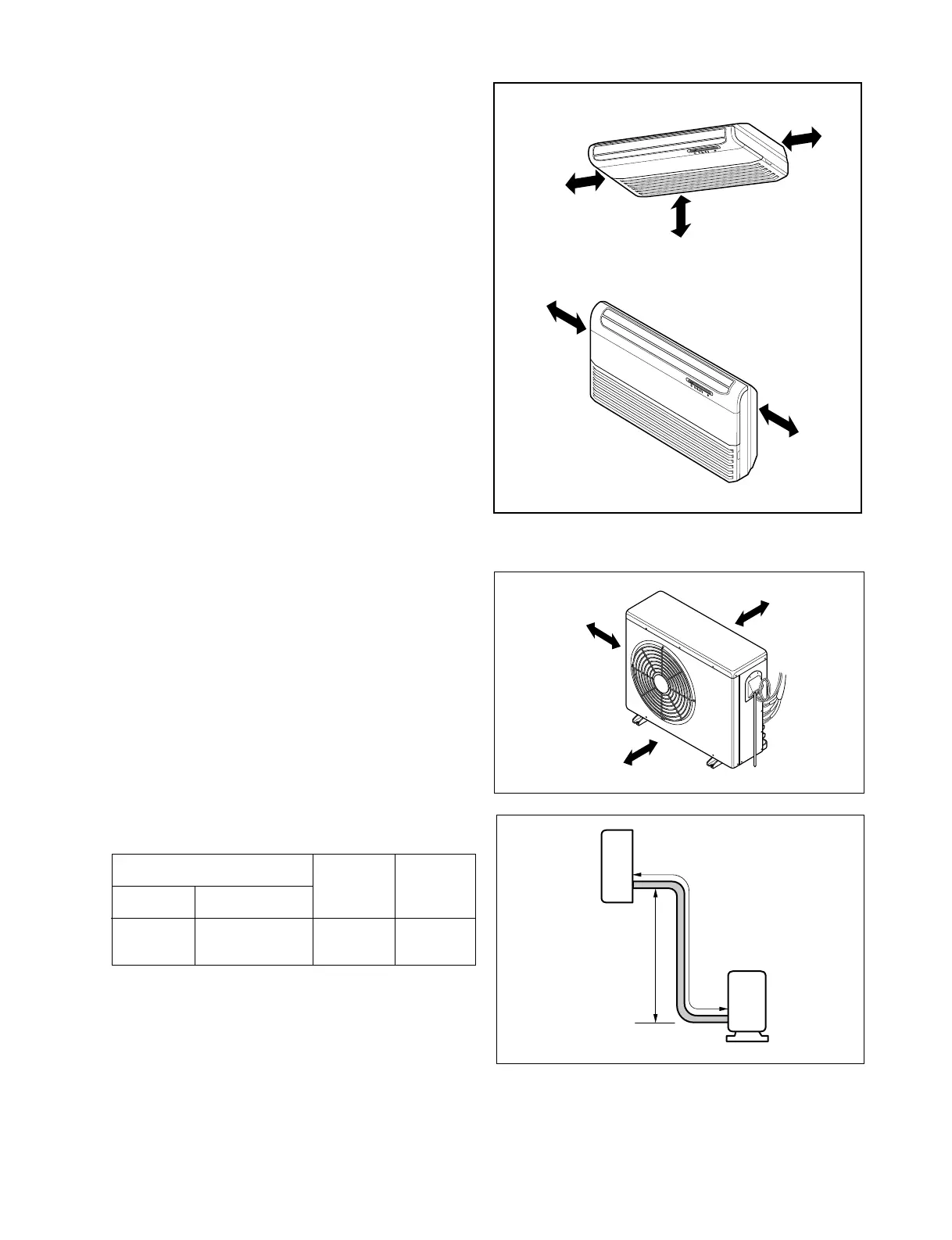

4. Convertible Type Indoor Unit
• There should not be any heat source or steam near the
unit.
• There should not be any obstacles to prevent the air cir-
culation.
• A place where air circulation in the room will be good.
• A place where drainage can be easily obtained.
• A place where noise prevention is taken into considera-
tion.
• Do not install the unit near the door way.
• Ensure the spaces indicated by arrows from the wall,
ceiling, or other obstacles.
More than
20cm
More than eye-level
More than
20cm
R
R
More than
20cm
More than
20cm
(Ceiling installation)
(Floor/Wall installation)
(2) Outdoor unit
• If an awning is built over the unit to prevent
direct sunlight or rain exposure, be careful that
heat radiation from the condenser is not restrict-
ed.
• There should not be any animals or plants which
could be affected by hot air discharged.
• Ensure the spaces indicated by arrows from the
wall, ceiling, fence, or other obstacles.
(3) Piping length and the elevation
more than
20cm
more than
10cm
more than
70cm
A
B
Indoor unit
Outdoor unit
Pipe Size
GAS LIQUID
Max. piping
length
A (m)
Max.
Elevation
B (m)
1/2"(3/8") 1/4" 15 5~7
