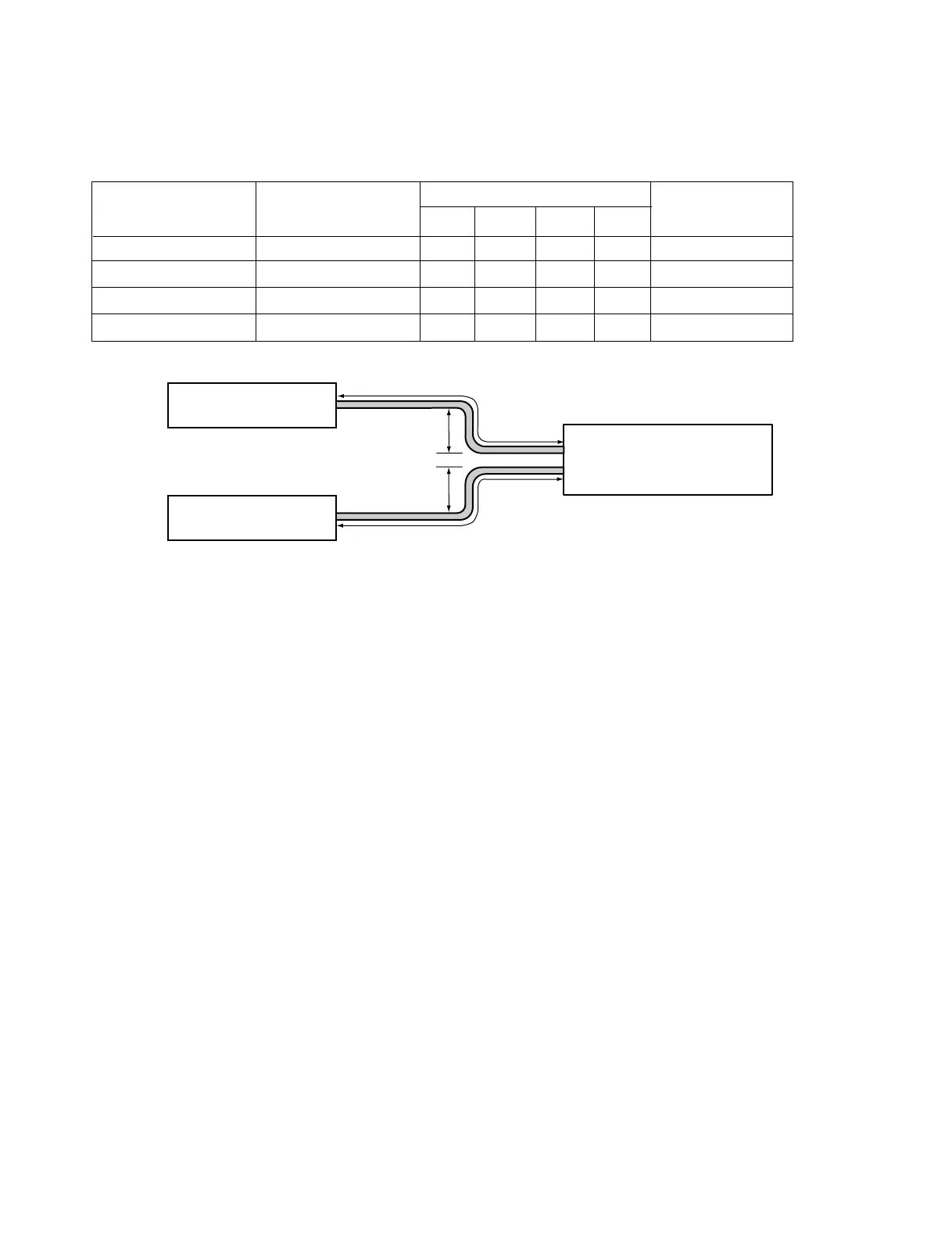

LG A2UN186FA0 - Maximum Length of Pipe and Freon Extra Charge; Charge Amount Per 1 M

- 70 -
INDOOR UNIT
INDOOR UNIT
OUTDOOR UNIT
B(Length)
D(Length)
A(Height)
C(Height)
Capacity STANDARD
CONNECTION TYPE
Charge am't(g)
(Btu/h) LENGTH(m)
AB CD
per 1m
~7000 7.5 7 15 7 15 20
~9000 7.5 7 15 7 15 20
~12000 7.5 7 15 7 15 20
~24000 7.5 7 15 7 15 30
** A, B mean indoor unit higher located than outdoor unit.
C, D mean outdoor unit higher located than indoor unit.
Charge amount per 1m
(5) Maximum Length of Pipe and Freon Extra Charge
