LG A2UN186FA0 - To Remove the Grille from the Chassis; Disassembly of the Parts (Indoor Unit)

- 77 -
Disassembly of the parts (Indoor unit)
(1) Room Type Indoor Unit
Warning :
Disconnect the unit from power supply before mak-
ing any checks.
Be sure the power switch is set to “OFF”.

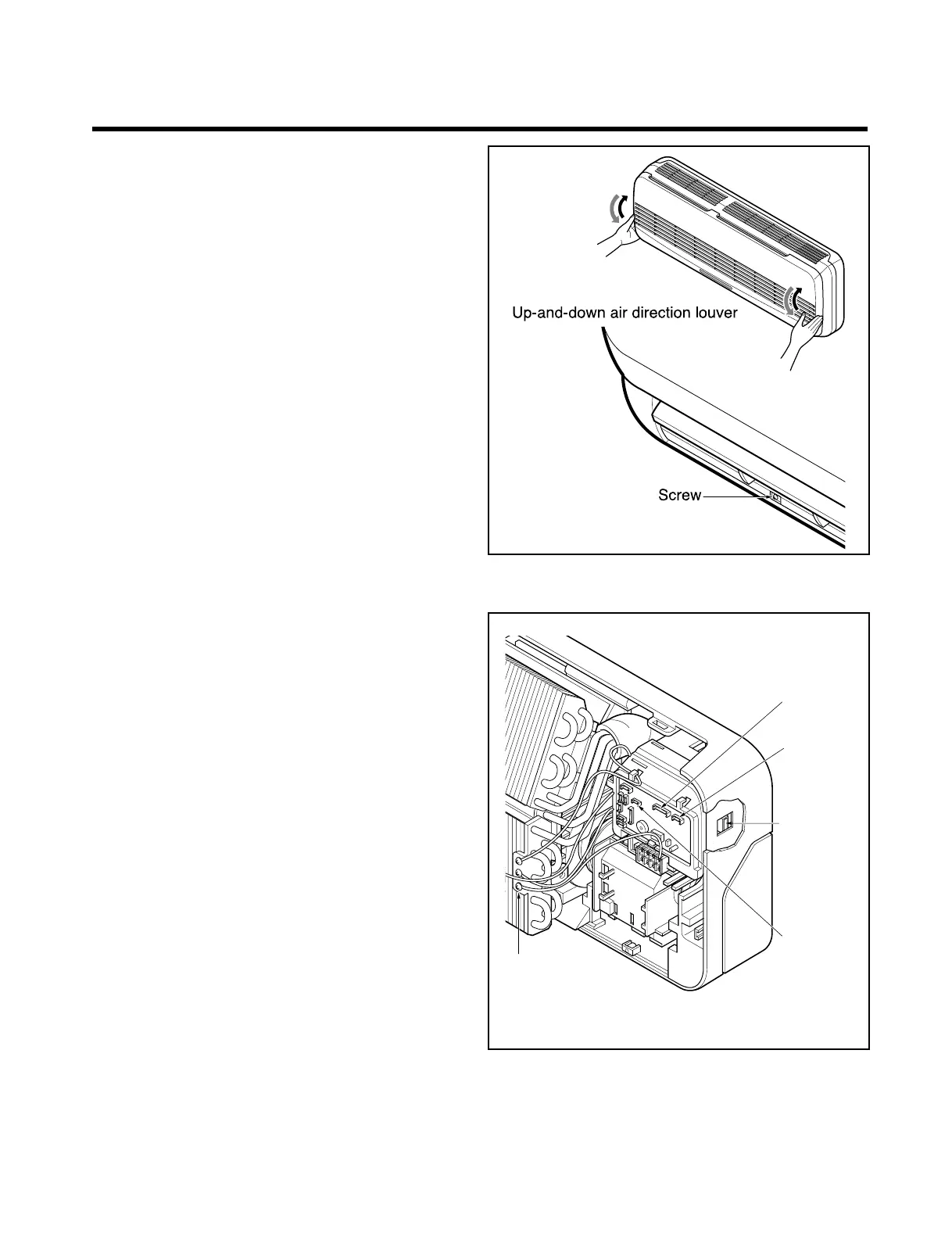

To remove the Grille from the Chassis.
• Set the up-and-down air discharge louver to open
position (horizontally) by finger pressure.
• Remove the securing screws.
• To remove the Grille, pull the lower left and right
side of the grille toward you (slightly tilted) and lift
it straight upward.
1. Before removing the control box, be sure to
take out the wire screwed at the other end.
Display
P.C.B
Conductor
Step Motor
Conductor
Earth
Conductor
Motor
Conductor
Sensor
Conductor
