LG ACC55T - DETAILS AND WAVEFORMS ON SYSTEM TEST AND DEBUGGING; 1) ES6698 FD main clock is at 27 MHz(X501); 2) ES6698 FD reset is high active.

3-9
DETAILS AND WAVEFORMS ON SYSTEM TEST AND DEBUGGING

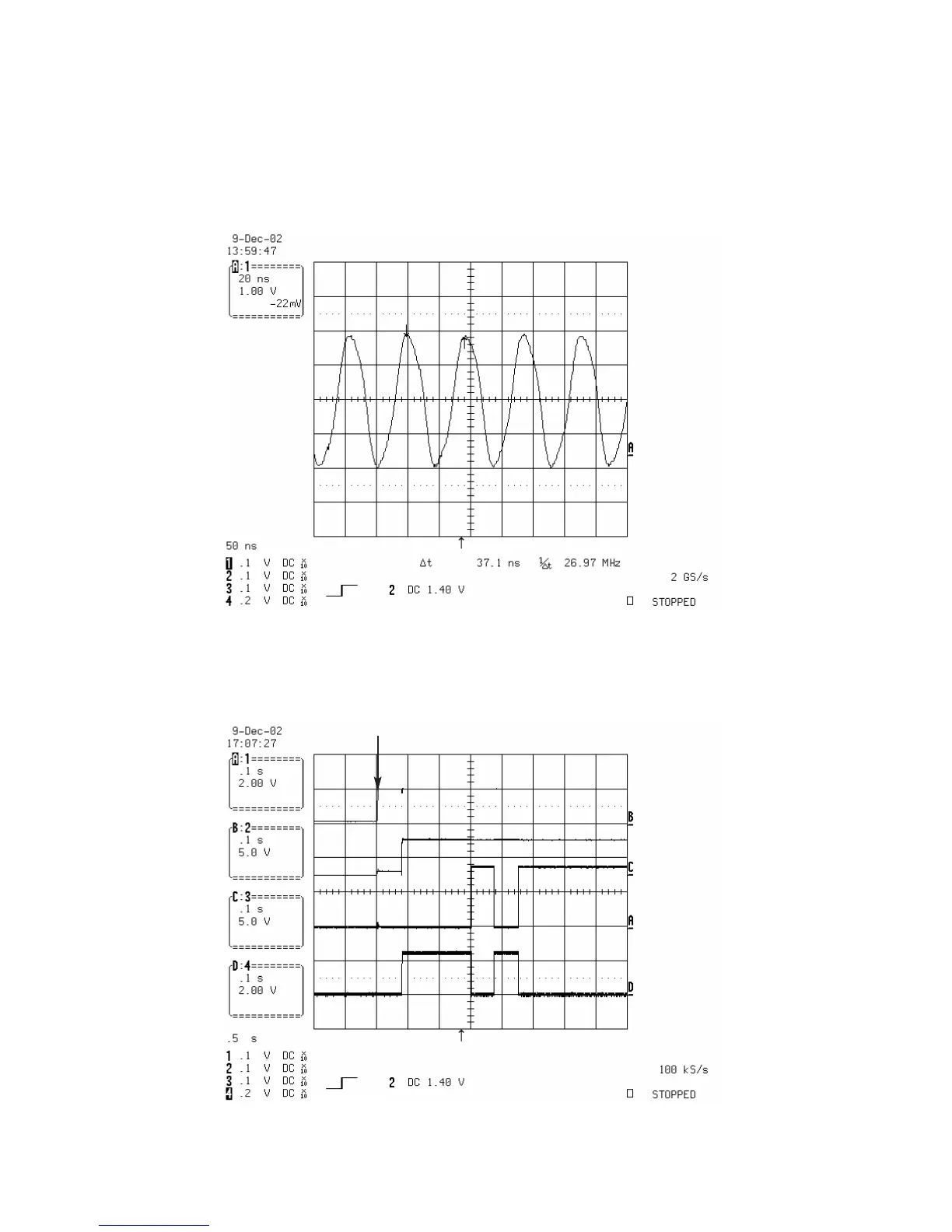

1. SYSTEM 27MHz CLOCK,RESET,FLASH R/W SIGNAL
1) ES6698FD main clock is at 27MHz(X501)
3.8V, 27MHz
FIG 1-1
2) ES6698FD reset is high active.
PWR_CTL(SYSTEM µ-COM)
IC501 PIN83)
5.2VA
Power Cord in
M_RESET(IC501 PIN 207)
URST(IC501 PIN 188)
FIG 1-2
