LG ACC55T - < REFERENCE > RECEIVER ELECTRICAL

5-15
I2S(AUDIO OUT) POWER CONTROL
RF IN
2.8V I2C 3.3V
SMPS
IA8
(BASEBAND IC)
POWER
RX
SWITCH
POWER OSC(44MHz)
AT24C64AN
(EEPROM)
3.3V
AL2212
(RF IC)
I2C
LED AMP
ANT
5-2. RECEIVER(RX) ELECTRICAL

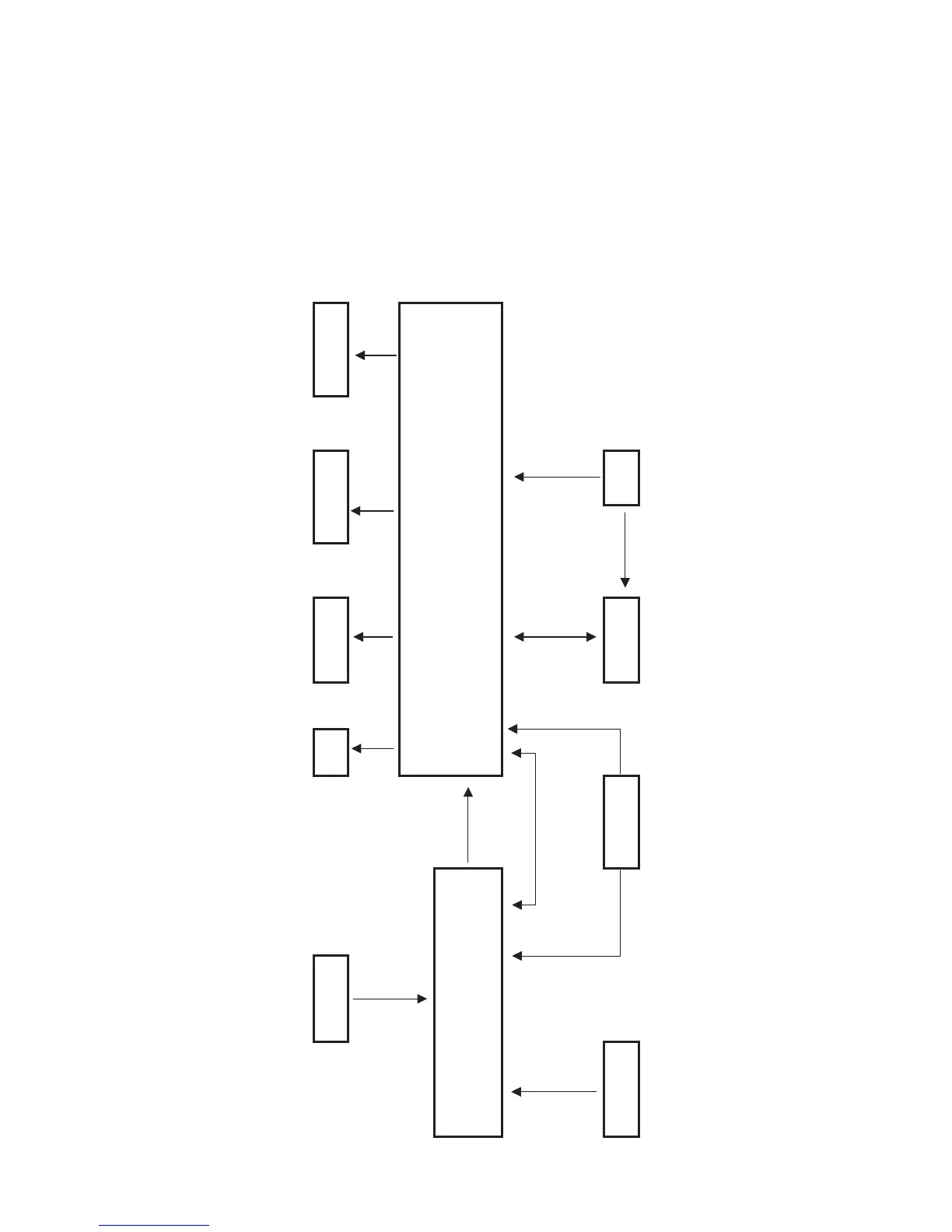

5-2-1. RX MODULE BLOCK DIAGRAM
