5-21
VDDA
GNDA
PLL
GNDA PLL
VDDA
+3.3V
+3.3V
C46 100NF Y5V
EIA0603
R10 3.40K 0000-060
3
L5
600 ohm@100mhz
EIA0805
12
+
C29
22UF
10VDC
EIA3528_A
C48 100NF Y5V
EIA0603
L6
600 ohm@100mhz
EIA0805
12
C33 100PF NPO
EIA0603
C30
100NF
Y5V
EIA0603
C31
100NF
Y5V
EIA0603
C32 1200PF X7R
EIA0603
C34
220PF NPO
EIA0603
U4
DDX-2001
1 2 3 4 5 6 7 8 9
10 11 12 13 14 15
16 17 18 19 20 21 22 23 24 25 26 27 28
SA DDX1A DDX1B DDX2A DDX2B RESET SCL SDA GND PLL_FILTER XTI GNDA VDDA SDI_12 LRCKI
BICKI
GND
VDD VDD
PWDN
DDX3B DDX3A
EAPD
TRISTATE
OCDETECT
FAULT
TWARN
GND
+
C47 22UF 10VDC
EIA3528_B
EAPD
DDX1A DDX1B DDX2A DDX2B
PWDN
TWARN
TRISTAT
E
FAULT
BICLK
LRCLK
SDI_12 MCLK SCL RESET
SDA

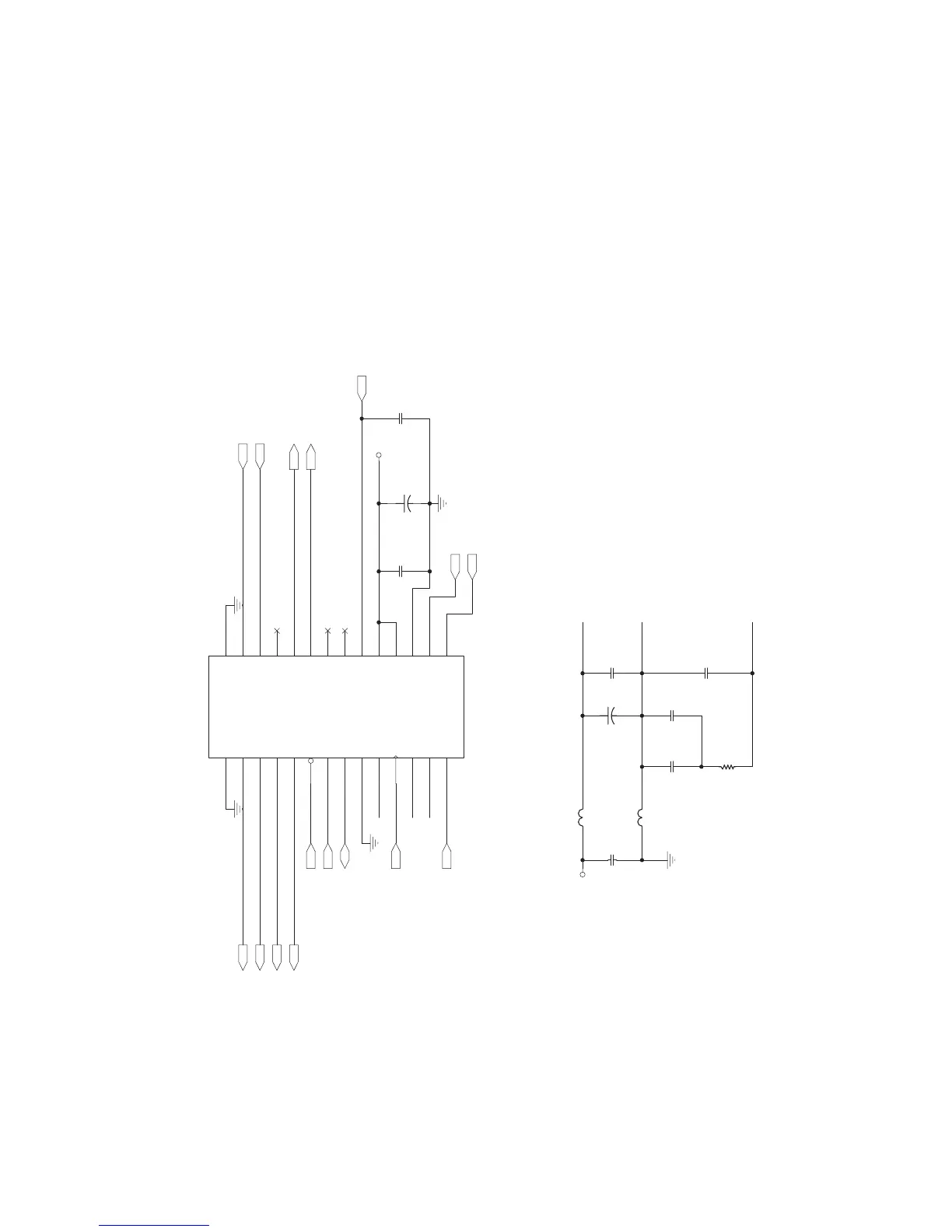

5-2-7. RX AMP SCHEMATIC DIAGRAM_3
