LG Air-Cooled Heat Pump Inverter Scroll Chiller Installation and Owners Manual
Due to our policy of continuous product innovation, some specifications may change without notification.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
DIMENSIONS

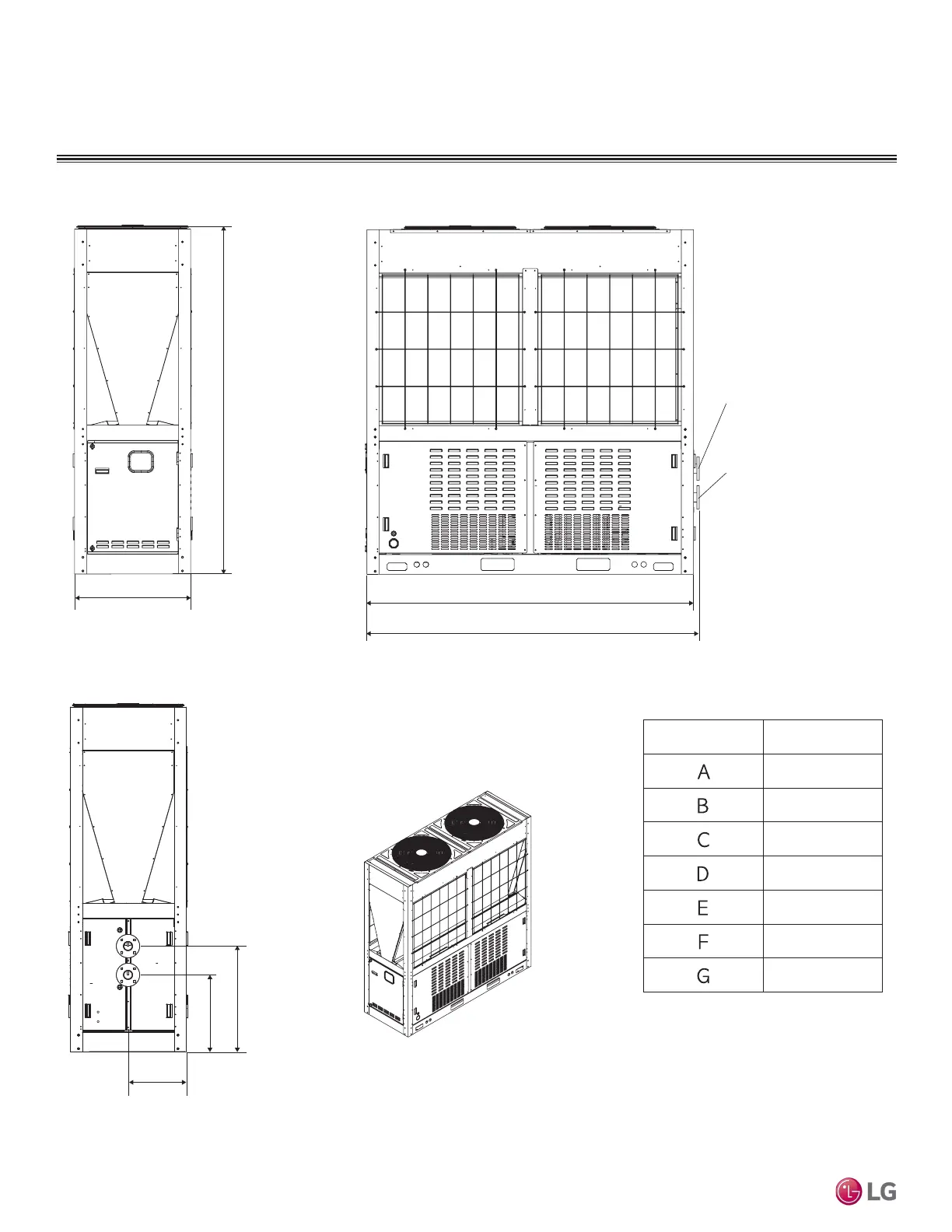

Figure 4: Dimensions for Single Frame Chiller ACHH017VBAB, ACHH017HBAB, ACHH020VBAB, ACHH020HBAB.
D
B
C
A
E
F
G
Water Outlet
(Flanged;
2 inches, 150lb)
Water Inlet
(Flanged;
2 inches, 150lb)
Front
Back
Side
(Unit: Inch)
Label Dimensions
30-1/8
86-17/32
86-5/8
84-13/16
19-31/32
27-9/16
15-1/8
