LG Air-Cooled Heat Pump Inverter Scroll Chiller Installation and Owners Manual
Due to our policy of continuous product innovation, some specifications may change without notification.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
DIMENSIONS

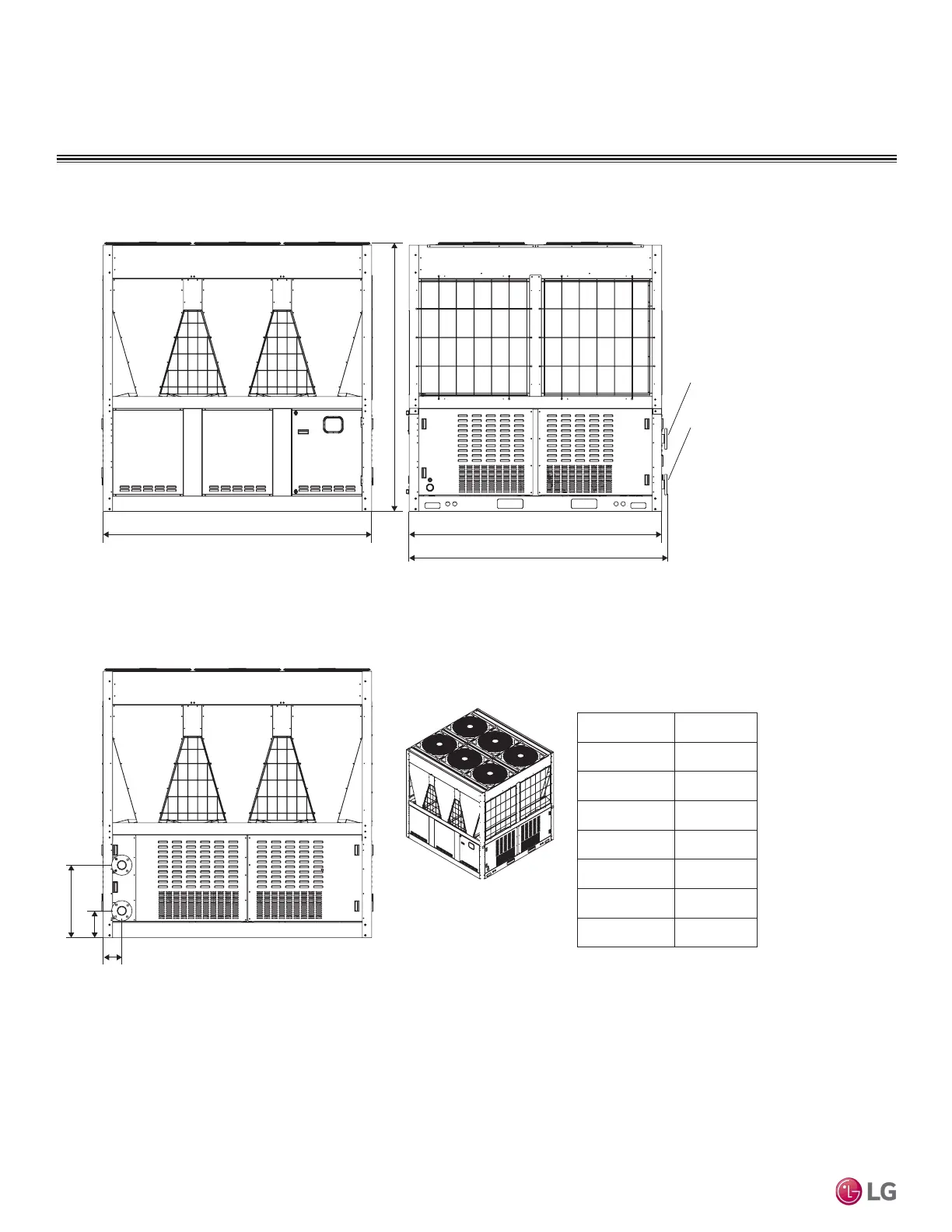

Figure 6: Dimensions for Triple Frame Chiller ACHH050VBAB, ACHH050HBAB, ACHH060VBAB, ACHH040HBAB.
D
B
A
E
G
C
Front view
Rear view
Side view
(Unit : inch)
Classification Dimension
A 90-1/4
B 86-17/32
C 86-5/8
D 84-13/16
E 19-31/32
F 27-9/16
G 15-1/8
Water Inlet
(Flanged, 2-1/2in, 150 lb)
Water Outlet
(Flanged, 2-1/2in, 150 lb)
