LG Air-Cooled Heat Pump Inverter Scroll Chiller Installation and Owners’ Manual
Service Clearance Requirements
Ensure there is enough space around the chiller for maintenance and service. See the figures below for minimum dimensions. Clearances are the
same for all three frame sizes.

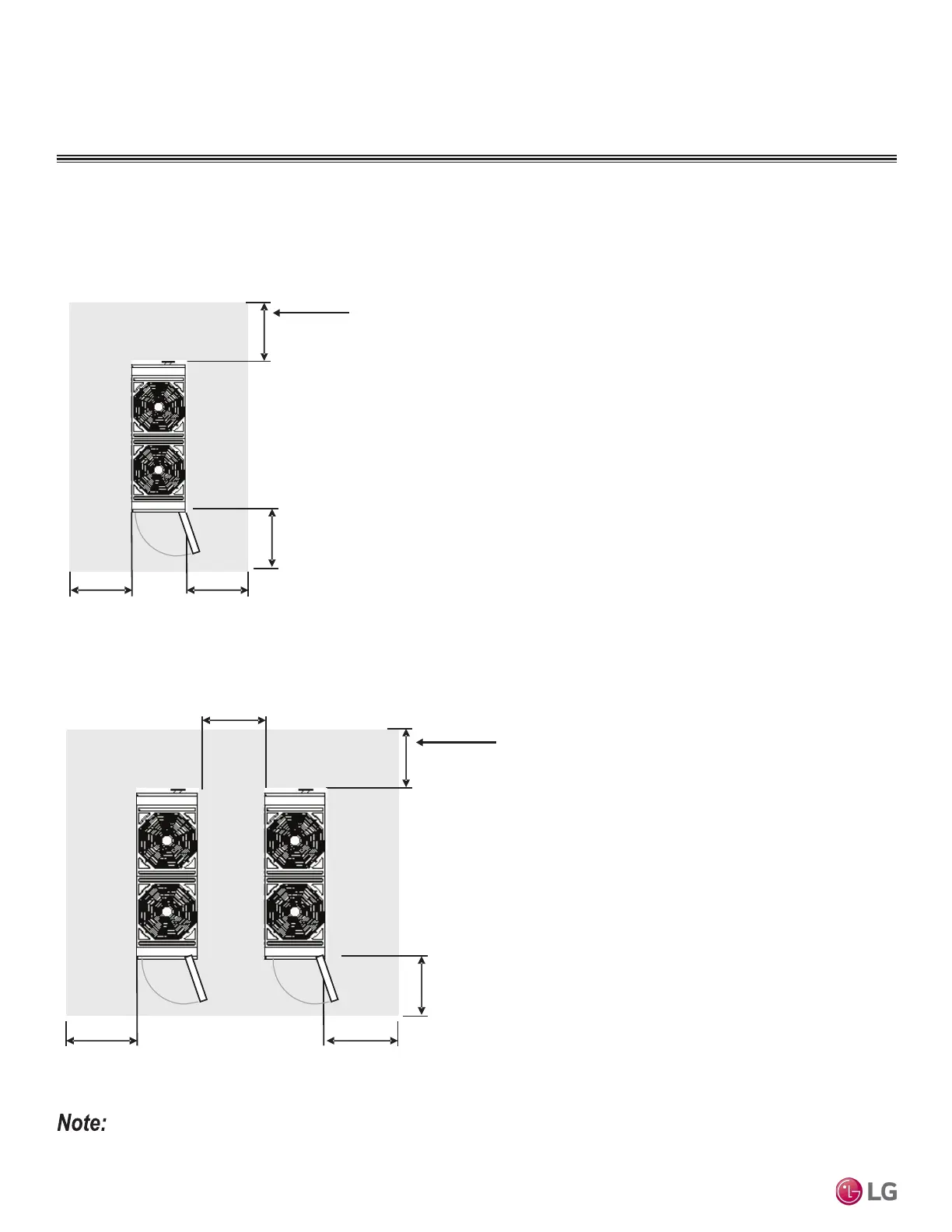

Figure 20: Service Clearance Requirements for One Chiller.
Figure 21: Service Clearance Requirements for Two Chillers.
Service Space
Min. 36
Min. 71
Min. 32Min. 32
(Unit: Inches)
Location where the
water pipes are
installed. Ensure that
there is sufficient
clearance space for
future service mainte-
nance and repair.
Min. 71
Min. 36
Min. 32Min. 32
Min. 24
Service Space
(Unit: Inches)
Location where the
water pipes are
installed. Ensure that
there is sufficient
clearance space for
future service mainte-
nance and repair.
PLACEMENT CONSIDERATIONS
See images above for minimum clearances, or increase clearance space based on NEC or other applicable service or safety codes.
Clearances are the same for all three frame sizes.
