37
Water Piping System Installation
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
P2 T2
P1
T1
LG Supplied
P2 T2
P1
T1
LG Supplied
Leaving Water
Entering Water

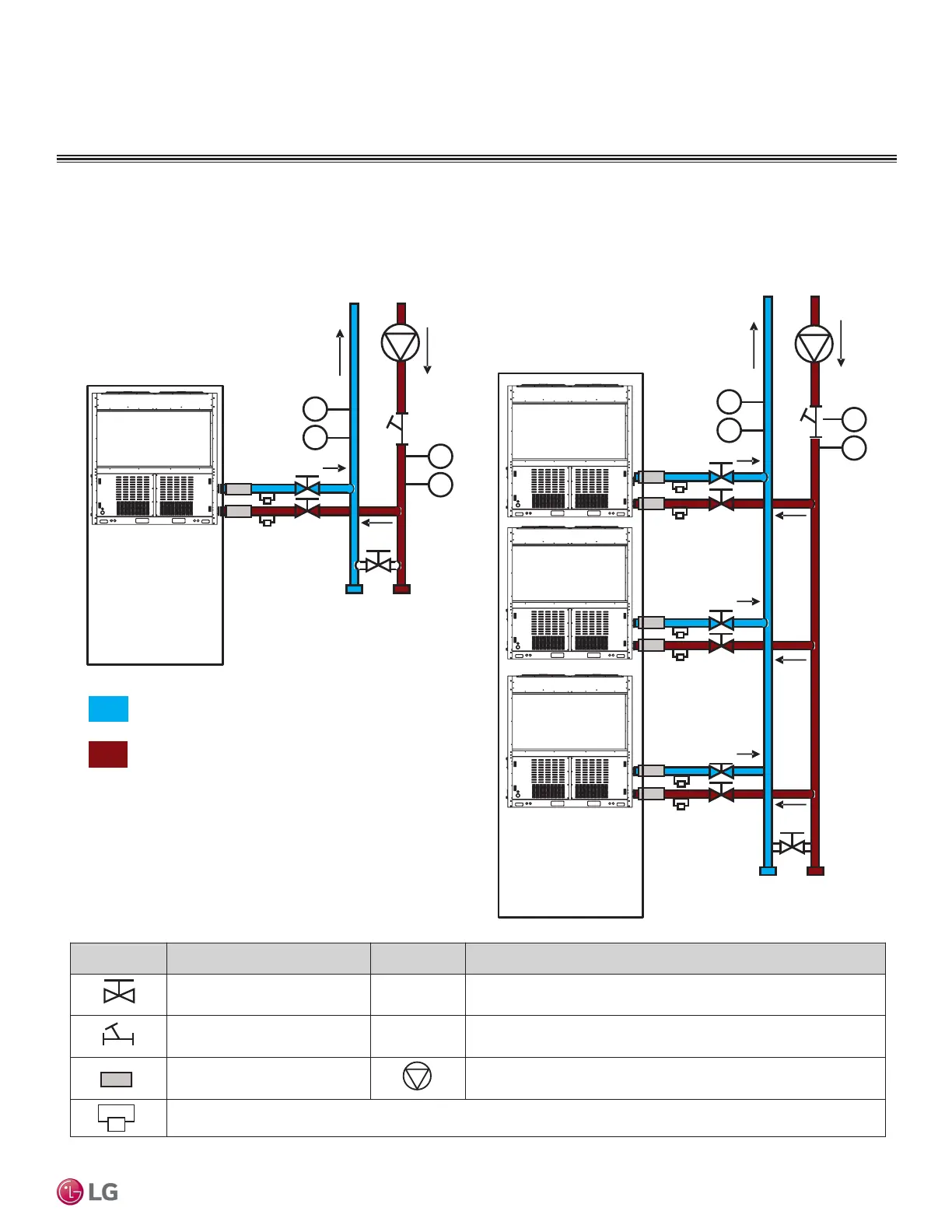

Installation Method B
Independent product installation.
Figure 29: Installation Method B.
Symbol Description Symbol Description (Provided by Others)
Valve (100% Flow)
T1 or T2
Temperature Sensor (1: Inlet, 2: Outlet)
Strainer (50 Mesh)
P1 or P2
* Pressure Gauge (1: Inlet, 2: Outlet)
Flexible Joint
Water Pump (Pump Sized to Meet Minimum to
Maximum Flow for LG Chiller)
Service Port for Cleaning
Optional
*
*
*
*
* Required
WATER PIPE SYSTEM / PIPING
