6 Ceiling Cassette-Type Air Conditioner

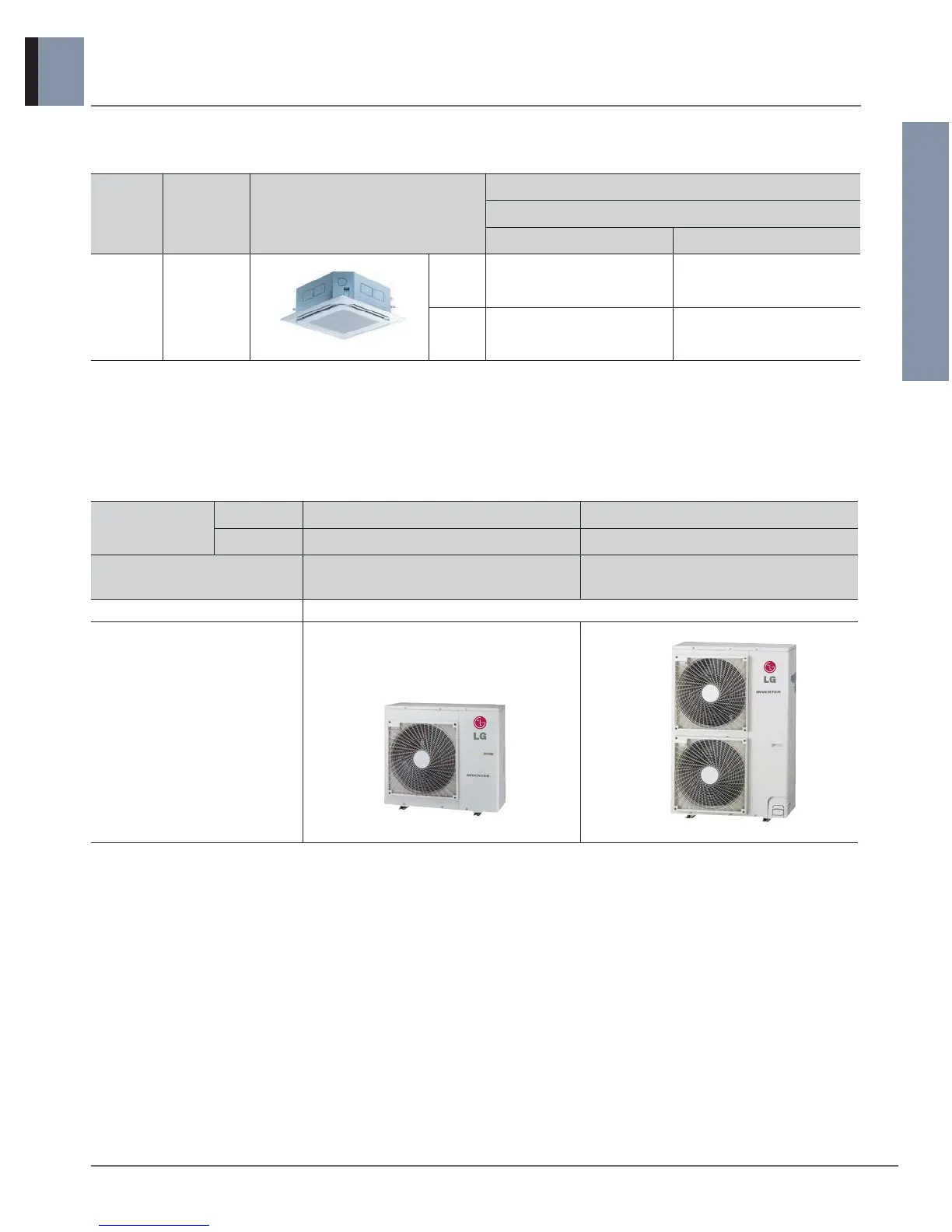

Product Introduction

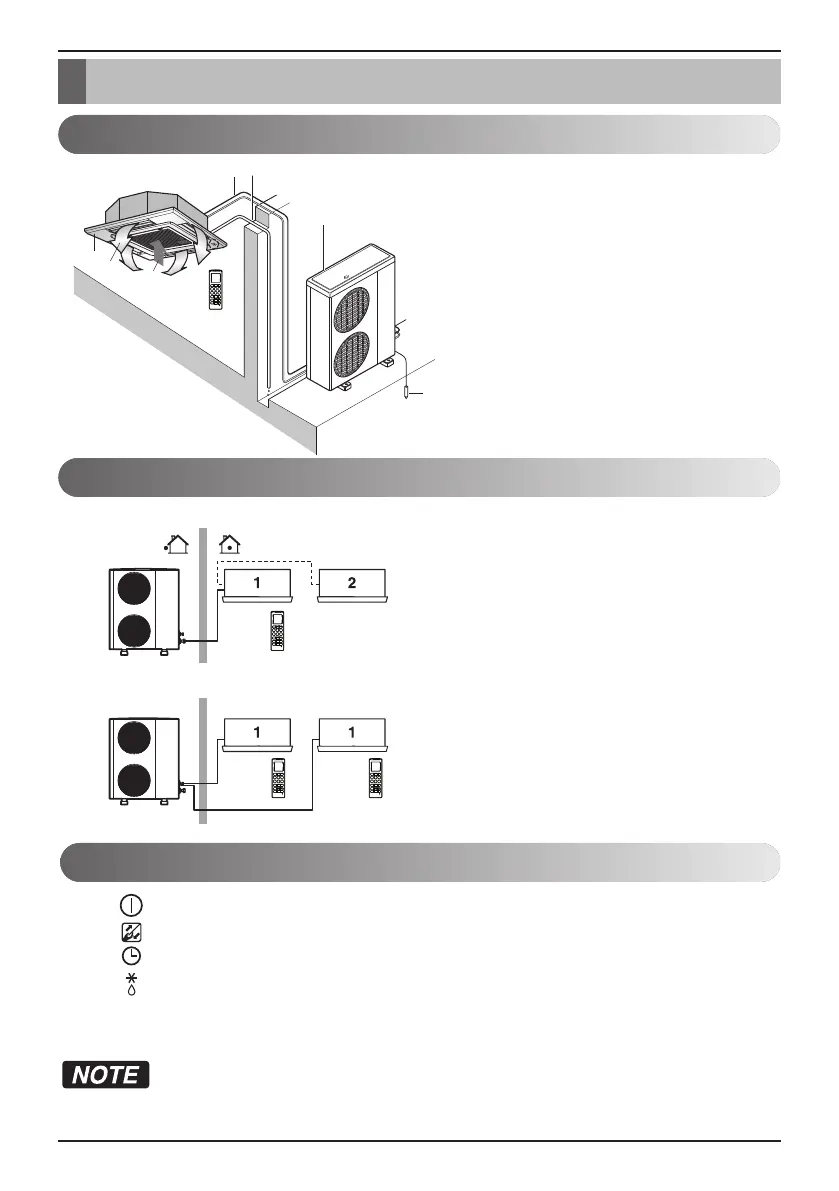

1: Indoor unit
2: Outdoor unit
3: Remote controller
4: Inlet air
5: Discharge air
6: Refrigerant piping, connection
electric wire
7: Drain pipe
8: Ground wire
Wire to ground outdoor unit to
prevent electrical shocks.
Multi system
Pair system or simultaneous operation system
3
6
2
8
: Lights up during the system operation.
Filter Sign : Lights up after 2 400 hours from the time of first operating unit.
Timer : Lights up during Timer operation.
Defrost Mode : Lights up during Defrost Mode or Hot Start operation.(Heat pump model only)
On/Off
1
5
Forced •
: To operate the unit when the remote control can't be used
for any reason.
4
4
7
What to do before operation
Name and function of parts
Product Introduction
• This function may not be supported, depending on the model.
• The feature can be changed according a type of model.
Operation Indication Lamps
If your installation has a customized
control system, ask your LG dealer for
the operation that corresponds to your
system.
1: Unit with remote controller
2: Unit without remote controller (when
used as simultaneous operation)
