DIP Switch Setting - Hydro Kit Medium Temperature
PRE-COMMISSIONING
DIP Switch Settings for Hydro Kit Medium Temperature (K2)
Figure 56 along with Table 12 below outlines the correct positioning
of each DIP switch depending on the functioning of the Hydro Kit
unit. These settings are specific to the Hydro Kit Medium Tempera-
ture (K2) unit.
Always turn off electric power before adjusting DIP switch settings. There
is a risk of electric shock if not turned off.
Guidelines
•DIP switch in the DOWN position is OFF. If it is in the UP position it
is ON (as seen in Figure 56).
•Always set DIP switch #6 to DOWN/OFF.
•Follow DIP switch settings in Table 12 below precisely or unit may
not operate properly.
Figure 56: Hydro Kit Medium Temperature DIP Switch Block
• Do not operate the Hydro Kit unit in Freeze avoidance mode without
the proper amount of antifreeze chemicals added to the water circuit.
• Do not add any antifreeze while operating in the heating mode.

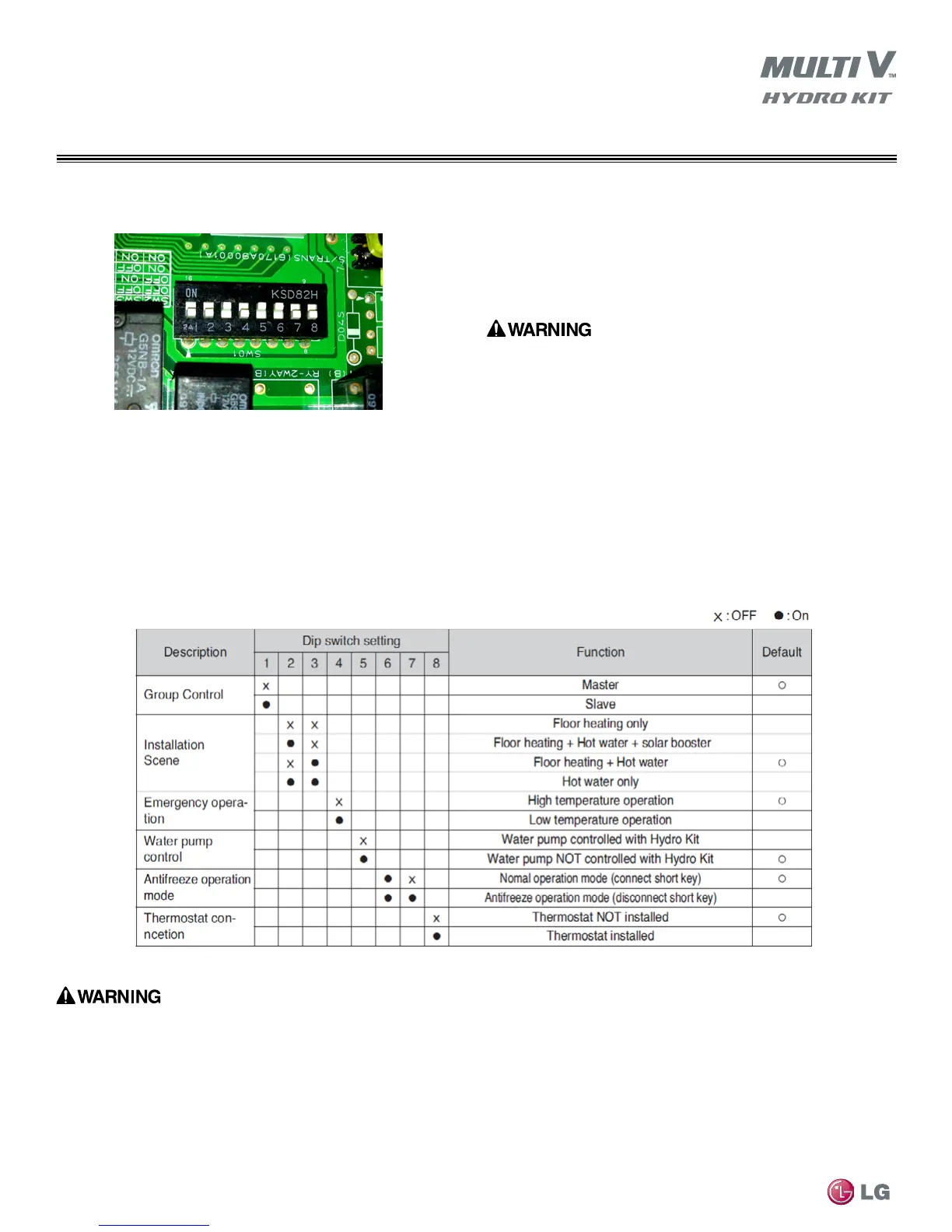

Table 12: Hydro Kit Medium Temperature DIP Switch Settings and Description
