ART COOL

| 11

Art Cool

Gallery

'XHWRRXUSROLF\RIFRQWLQXRXVSURGXFWLQQRYDWLRQVRPHVSHFL¿FDWLRQVPD\FKDQJHZLWKRXWQRWL¿FDWLRQ

/*(OHFWURQLFV86$,QF(QJOHZRRG&OLIIV1-$OOULJKWVUHVHUYHG³/*´LVDUHJLVWHUHGWUDGHPDUNRI/*&RUS

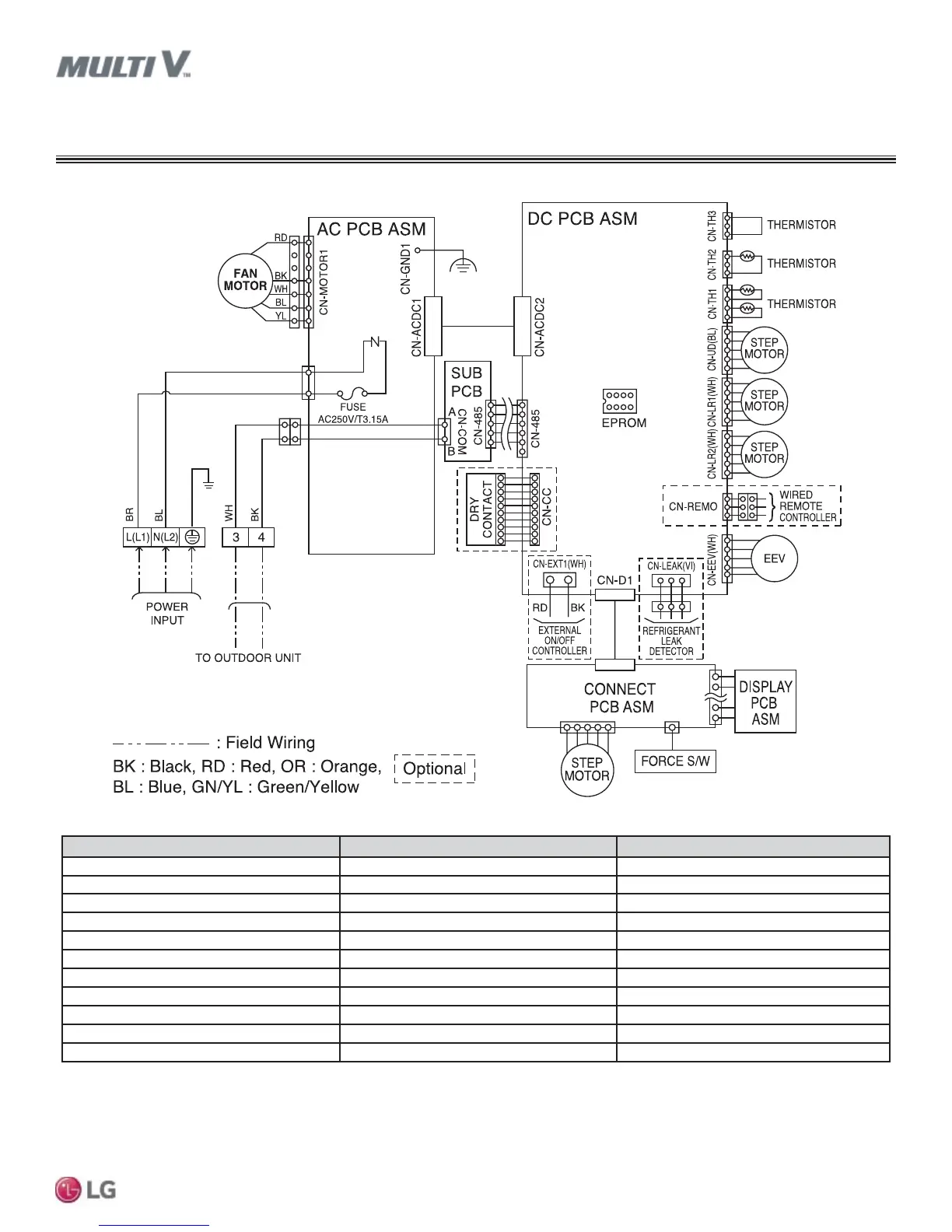

Electrical Wiring Diagram

SF Frame

Figure 3: ARNU093SFA4 and ARNU123SFA4 Wiring Diagram.

ART COOL

GALLERY

PCB Connection Purpose Function

CN-TH3 Pipe out thermistor Pipe out thermistor connection

CN-TH2 Pipe in thermistor Pipe in thermistor connection

CN-TH1 Return air thermistor Return air thermistor connection

CN-UD Step motor Step motor output

CN-LR1 Step motor Step motor output

CN-LR2 Step motor Step motor output

CN-REMO Wired remote controller Wired remote controller connection

CN-EEV EEV output EEV control output

CN-EXT1 External on/off controller External on/off controller connection

CN-CC Dry contact Dry contact connection

CN-485 Communication Connection between indoor and outdoor units

Table 3: SF Frame Wiring Diagram Legend.

7RHQDEOH*HQHUDWLRQIHDWXUHV RXWGRRUXQLW',3VZLWFKQRPXVW EHVHWWR21 3OHDVHUHIHUWR WKH0XOWL9,90XOWL9:DWHU,90XOWL96

(QJLQHHULQJ0DQXDOIRUDGGLWLRQDOLQIRUPDWLRQ
