STANDARD WALL-MOUNTED

Refrigerant Flow Diagram

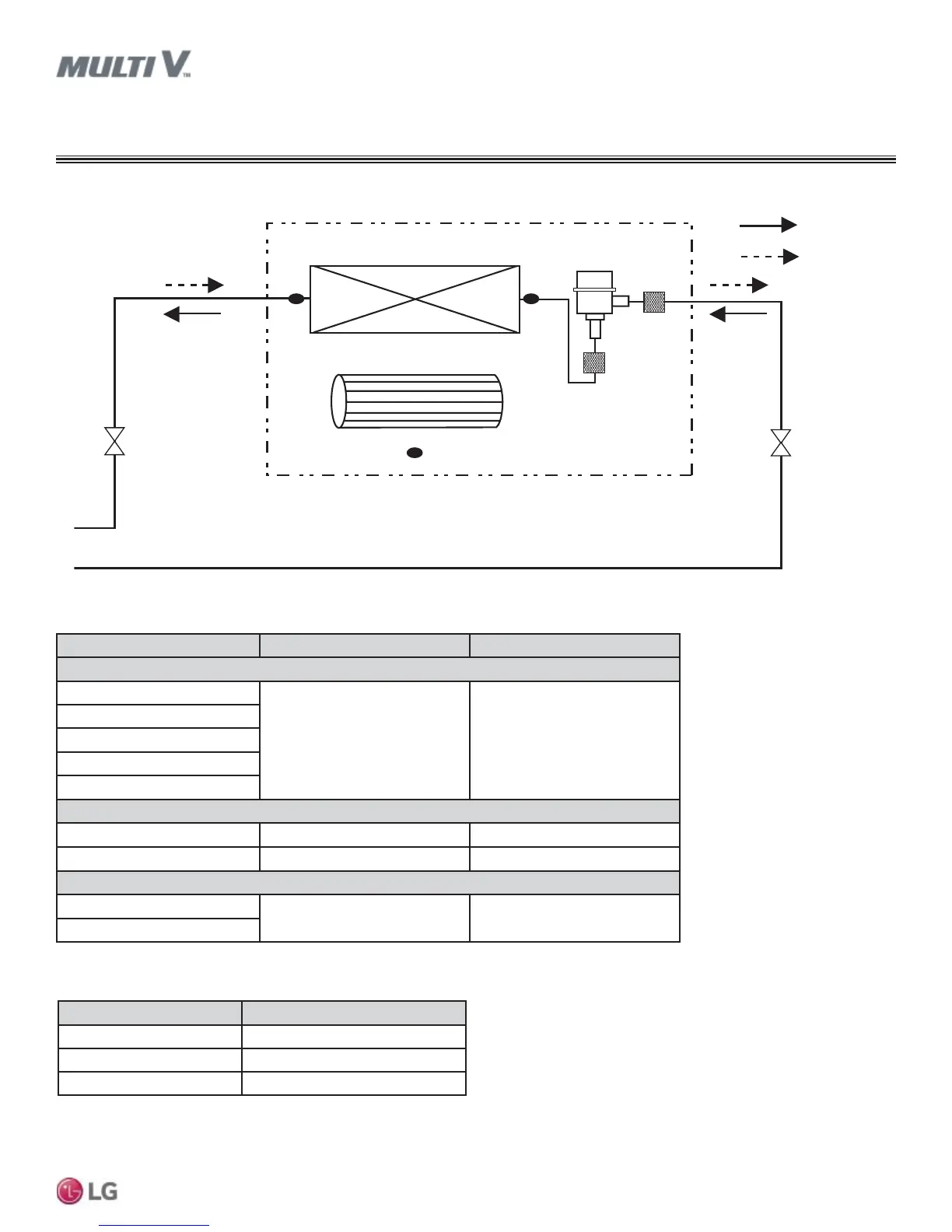

Figure 33: SB, SC, SV Frame Piping Diagram.

6%6&69)UDPHV

Model Liquid (inch) Vapor (inch)

6%)UDPHV

ARNU053SBL4

1/4 Flare 1/2 Flare

ARNU073SBL4

ARNU093SBL4

ARNU123SBL4

ARNU153SBL4

6&)UDPHV

ARNU183SCL4 1/4 Flare 1/2 Flare

ARNU243SCL4 3/8 Flare 5/8 Flare

69)UDPHV

ARNU303SVA4

3/8 Flare 5/8 Flare

ARNU363SVA4

Thermistor Description

TH1 Return air thermistor

TH2 Pipe in thermistor

TH3 Pipe out thermistor

Table 27: SB, SC, SV Frame Refrigerant Pipe Connection Port Diameters.

Table 28: SB, SC, SV Frame Thermistors.

Heat Exchanger

C.F.F

lndoor unit

EEV

Heating

Cooling

Filter

TH3

TH2

TH1
