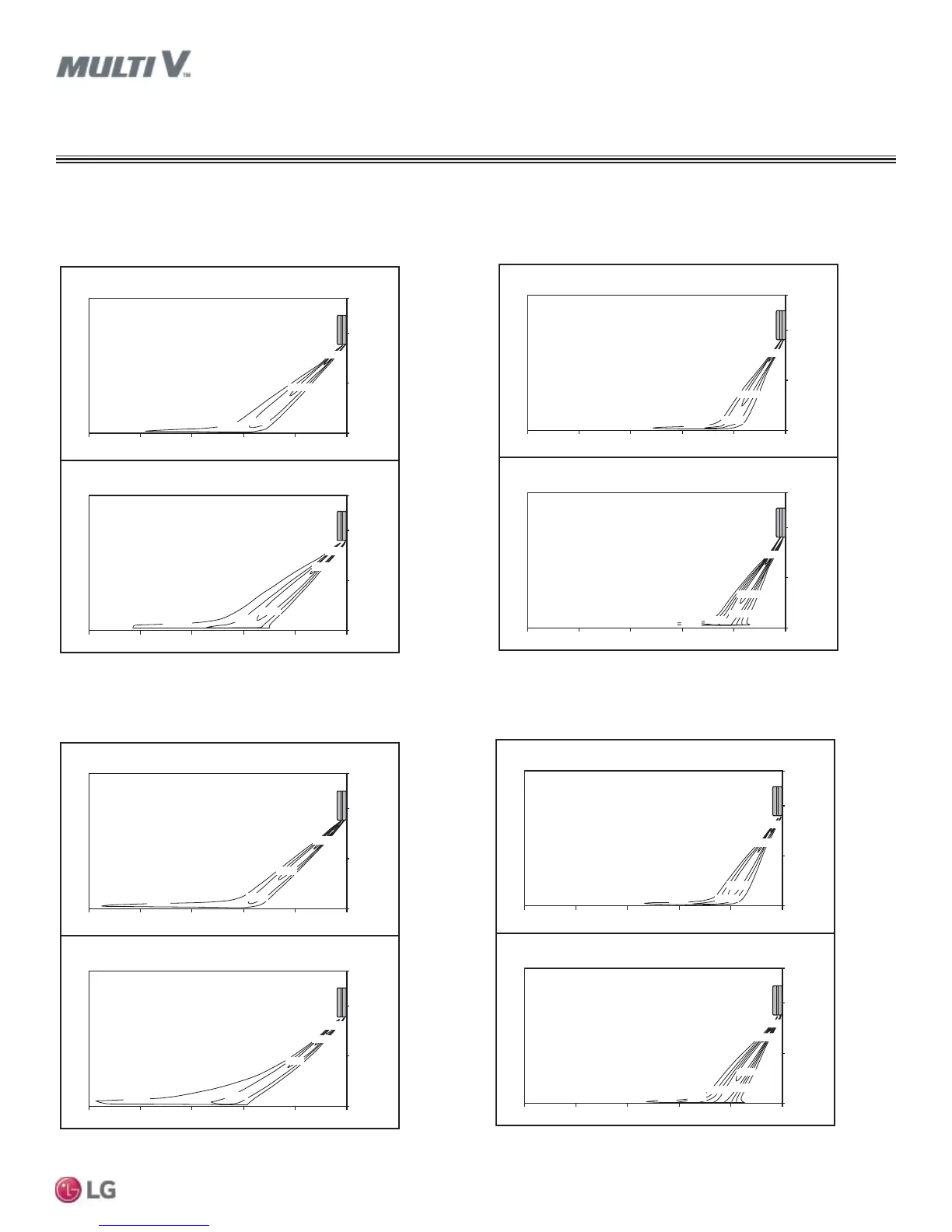

$LU9HORFLW\7HPSHUDWXUH'LVWULEXWLRQ
ARNU093SFA4, ARNU123SFA4
Figure 8: ARNU093SFA4.
Figure 9: ARNU123SFA4.
ART COOL
TM
GALLERY
Cooling
Discharge angle: 40°
Heating
Discharge angle: 50°
0.5(1.6)
1.0(3.3)
1.5(4.9)
2.0(6.6)
17(62.6)
19(66.2)
15(59)
11(51.8)
13(55.4)
Air velocity (m/s [ft./s])
Temperature (°C [°F])
2.7m (8.9 ft.)
2m (6.6 ft.)
1m (3.3 ft.)
0m (0)
5m (16.4 ft.) 4m (13.1 ft.) 3m (9.8 ft.) 2m (6.6 ft.) 1m (3.3 ft.)
0m (0)
2.7m (8.9 ft.)
2m (6.6 ft.)
1m (3.3 ft.)
0m (0)
5m (16.4 ft.) 4m (13.1 ft.) 3m (9.8 ft.) 2m (6.6 ft.) 1m (3.3 ft.)
0m (0)
0.5(1.6)
1.0(3.3)
1.5(4.9)
2.0(6.6)
33(91.4)
37(98.6)
35(95)
39(102.2)
41(105.8)
43(109.4)
Air velocity (m/s [ft./s])
Temperature (°C [°F])
2.7m (8.9 ft.)
2m (6.6 ft.)
1m (3.3 ft.)
0m (0)
5m (16.4 ft.) 4m (13.1 ft.) 3m (9.8 ft.) 2m (6.6 ft.) 1m (3.3 ft.)
0m (0)
2.7m (8.9 ft.)
2m (6.6 ft.)
1m (3.3 ft.)
0m (0)
5m (16.4 ft.) 4m (13.1 ft.) 3m (9.8 ft.) 2m (6.6 ft.) 1m (3.3 ft.)
0m (0)
Cooling
Discharge angle: 40°
35(95)
33(91.4)
37(98.6)
39(102.2)
41(105.8)
43(109.4)
45(113)
0.5(1.6)
1.0(3.3)
1.5(4.9)
2.0(6.6)
2.5(8.2)
Air velocity (m/s [ft./s])
Temperature (°C [°F])
2.7m (8.9 ft.)
2m (6.6 ft.)
1m (3.3 ft.)
0m (0)
5m (16.4 ft.) 4m (13.1 ft.) 3m (9.8 ft.) 2m (6.6 ft.) 1m (3.3 ft.)
0m (0)
2.7m (8.9 ft.)
2m (6.6 ft.)
1m (3.3 ft.)
0m (0)
5m (16.4 ft.) 4m (13.1 ft.) 3m (9.8 ft.) 2m (6.6 ft.) 1m (3.3 ft.)
0m (0)
Heating
Discharge angle: 50°
0.5(1.6)
1.0(3.3)
1.5(4.9)
2.0(6.6)
19(66.2)
17(62.6)
15(59)
13(55.4)
11(51.8)
Air velocity (m/s [ft./s])
Temperature (°C [°F])
2.7m (8.9 ft.)
2m (6.6 ft.)
1m (3.3 ft.)
0m (0)
5m (16.4 ft.) 4m (13.1 ft.) 3m (9.8 ft.) 2m (6.6 ft.) 1m (3.3 ft.)
0m (0)
2.7m (8.9 ft.)
2m (6.6 ft.)
1m (3.3 ft.)
0m (0)
5m (16.4 ft.) 4m (13.1 ft.) 3m (9.8 ft.) 2m (6.6 ft.) 1m (3.3 ft.)
0m (0)
