3-13
NO OPERATION OF MD (DRIVING THE SERVO MOTORS)
When no sound output in the CD function, you can not listen to music reading data from
a CD disc if the servo motors in MD don’t work. This step is for checking the TRAY
OPEN/ CLOSE MOTOR among them.
5-3. TRAY OPEN / CLOSE MOTOR
5-3-1. Solution
Please check and replace IC407, IC408 on MAIN board.
5-3-2. How to troubleshoot (Countermeasure)
1) Check MOT_OPEN & MOT_CLOSE signals from Pin K4 & L4 of IC501 to IC408.
If no signal, check +1.8 V & + 5 V to IC408.
2) Check LOAD± from IC408 to CN405 for driving the tray open / close motor. It is about 3.85 Vp-p.
If no signal, check +5 V to IC408. If it has any trouble, replace it with a new one.
3) Check if the FFC cable is solidly connected between CN405 and MD.
4) Check the MD.
If the tray motor is sort-circuit or has any trouble, it can not open or close the tray.
Please check the function after changing another MD.
IC408
(Bottom)
LO+
Pin4 to CN405
LO-
Pin2 to CN405
MOT_ CL OS E
MOT_ OP EN
LO+(RED)
LO-
MOT_OPEN
7pin of IC408
MOT_CLOSE
6pin of IC408

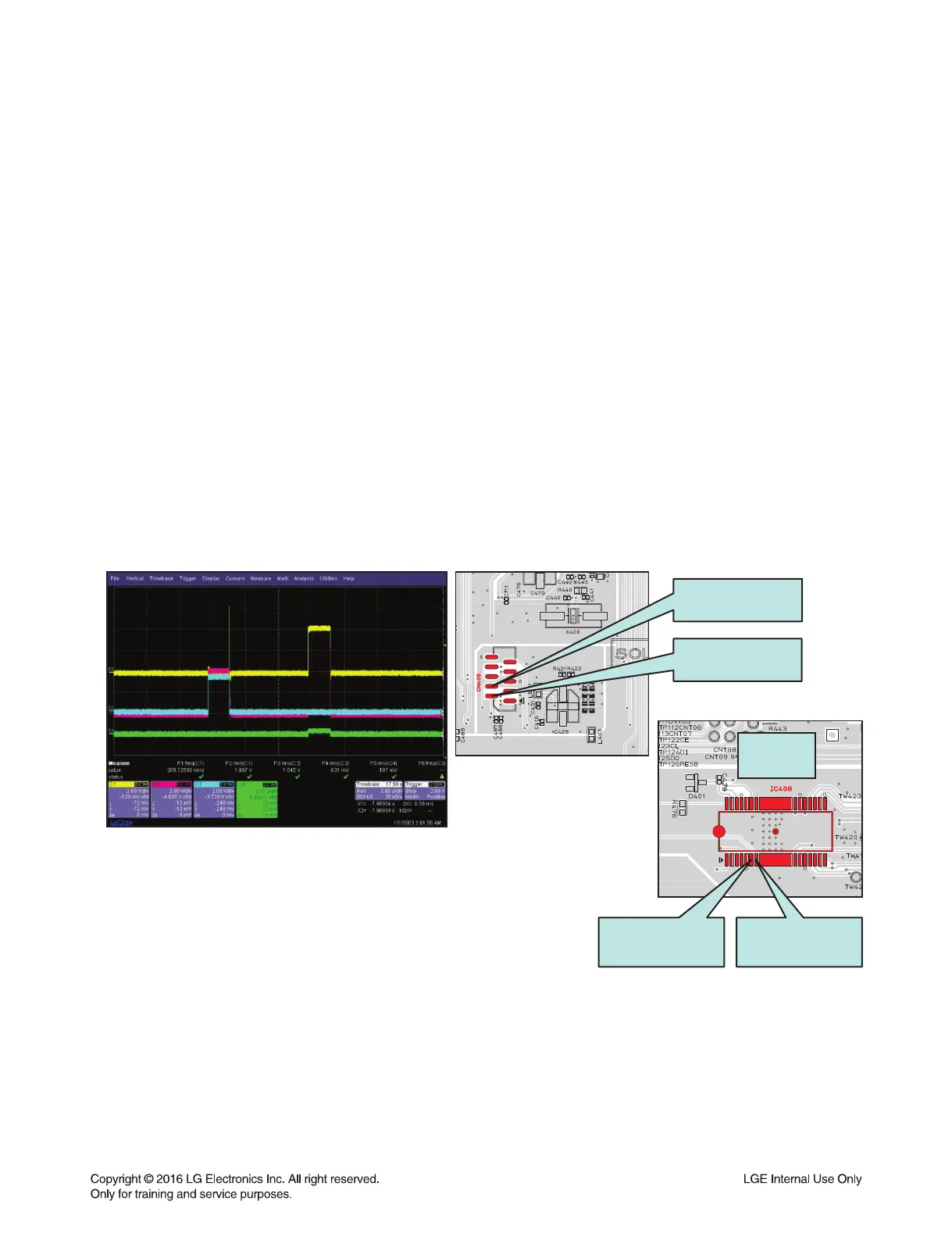

< Waveform for driving TRAY
open/close motor >
< Signal check point >
ONE POINT REPAIR GUIDE
5-3-3. Service hint (Any picture / Remark)
To Next Page
