Disassembly, assembly and repairing of main parts

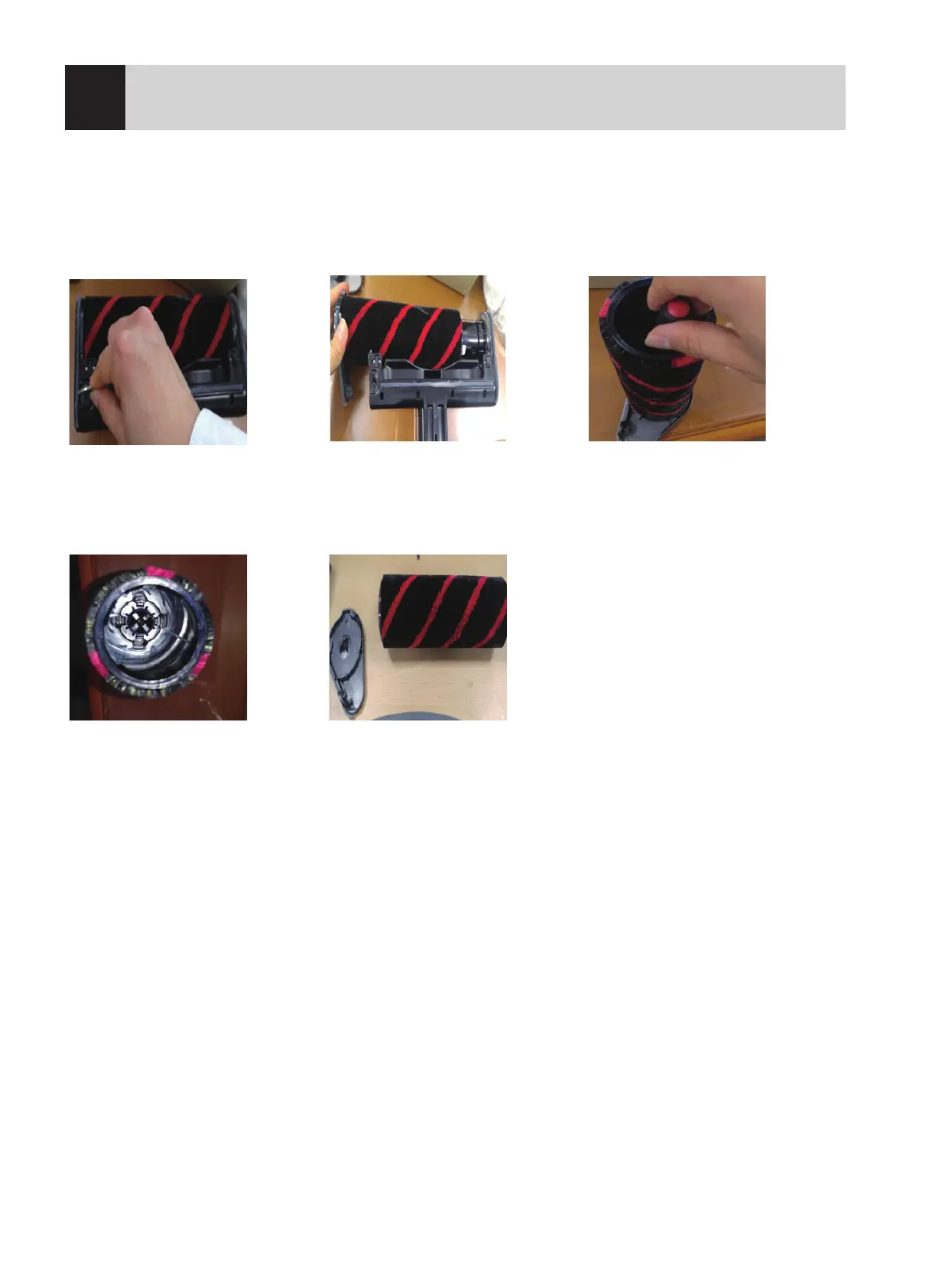

4. Disassembling the inlet roller(floor inlet)
(1) Remove the inlet lever with
a coin.
(2) Push the left bump up
and remove the roller to
the left.
(3) Use a long phillips
screwdriver to remove the
screw in the center.
(4) Refer to the figure for
the exact location of the
screw.
(5) When the screw is
removed, the roller is
separated from the bump.
(6) Reassemble the whole part
in the reverse sequence.
