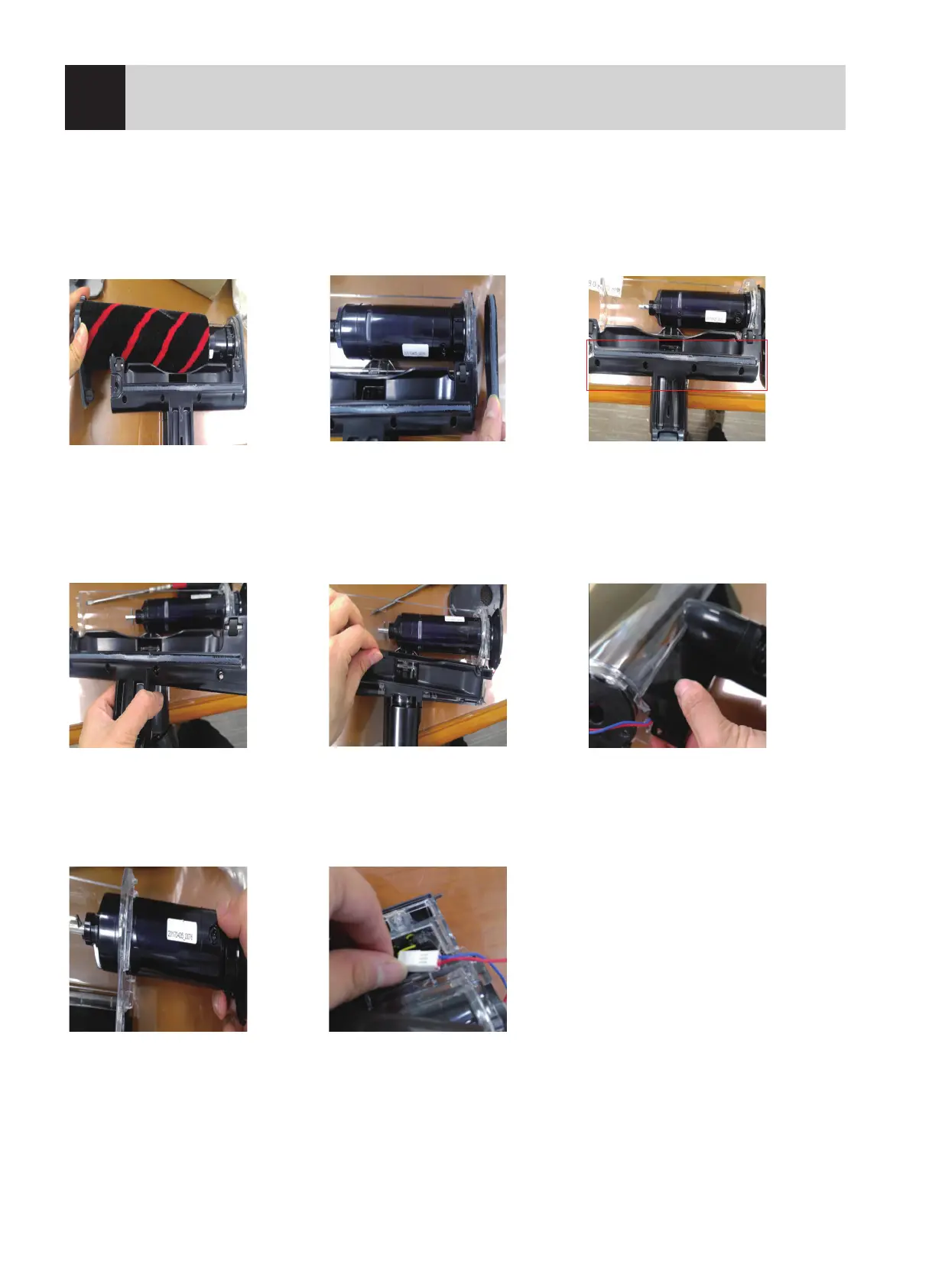

5. How to disassemble the inlet motor(floor inlet)
(1) Disassemble the inlet
roller (Refer to how to
disassemble the inletroller
in details)
(2) Remove the cover of the
right bump with a hand.
(3) Remove 4 screws in the
red circle.
(4) Remove the cover below
the inlet after removing
the 4 screws.
(5) Remove the bump in the
figure with a hand.
(6) Remove the top cover of
the inlet.
(7) Remove the inlet motor.
(8) Remove the motor
harness connector and
replace the motor.
(9) Reassemble the whole part
in the reverse sequence.
