4. TROUBLE SHOOTING
- 125 -
4.18 Headset path
MSM6281 HPH_R, HPH_L → R802, R801 → CN801 (MMI Connector)

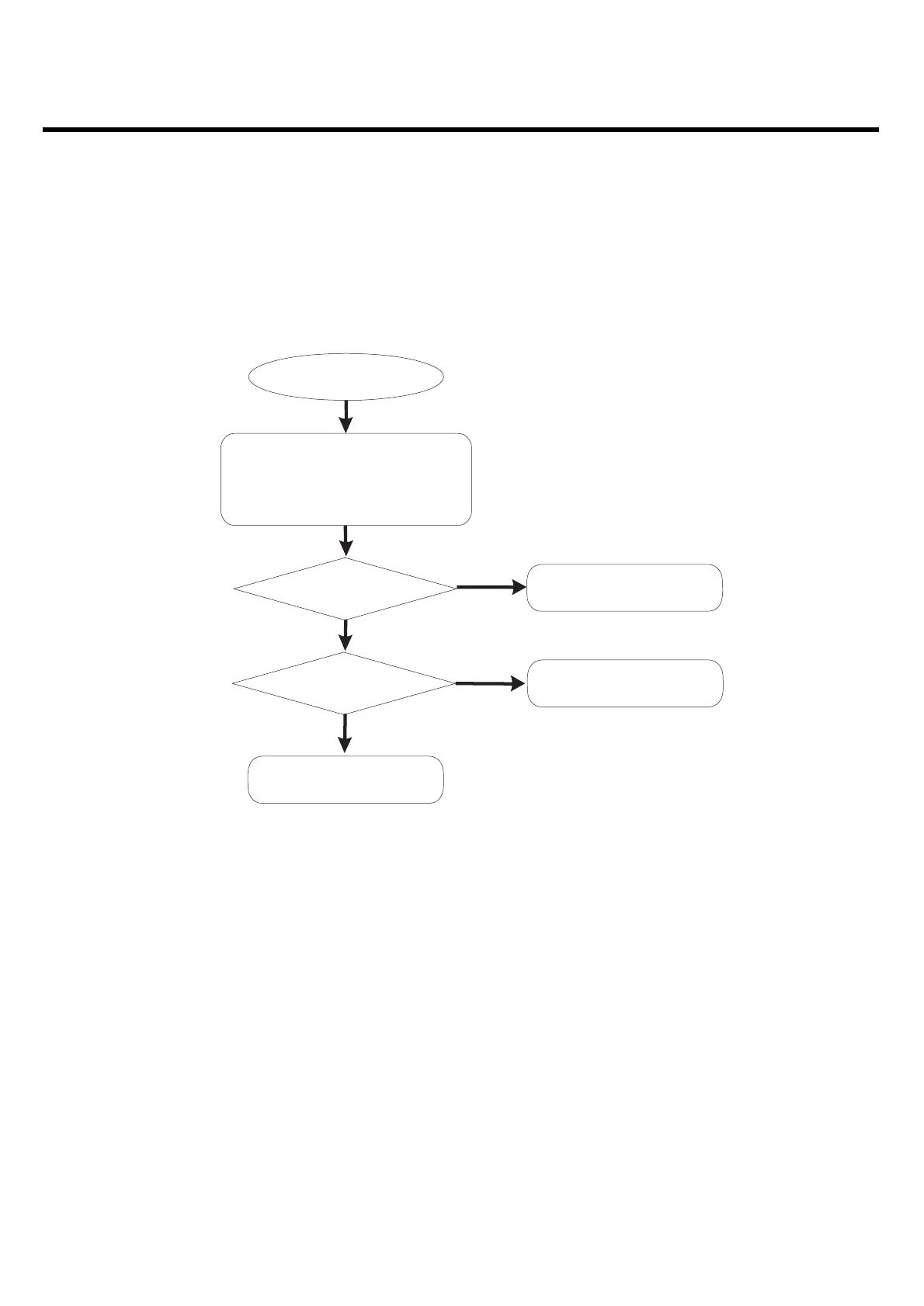

Start
Conne ct the phone to network
equipme nt and setup c all.
Setup 1 KHz tone out
and in sert h eadset.
Can you he ar the tone ?
Change the Headset
YES
NO
END
Sine wave appears at
R802, R801?
Change the Main boa rd
YES
NO
