LG CU920 - Speaker Phone Audio Path Troubleshooting

- 129 -
4. TROUBLE SHOOTING

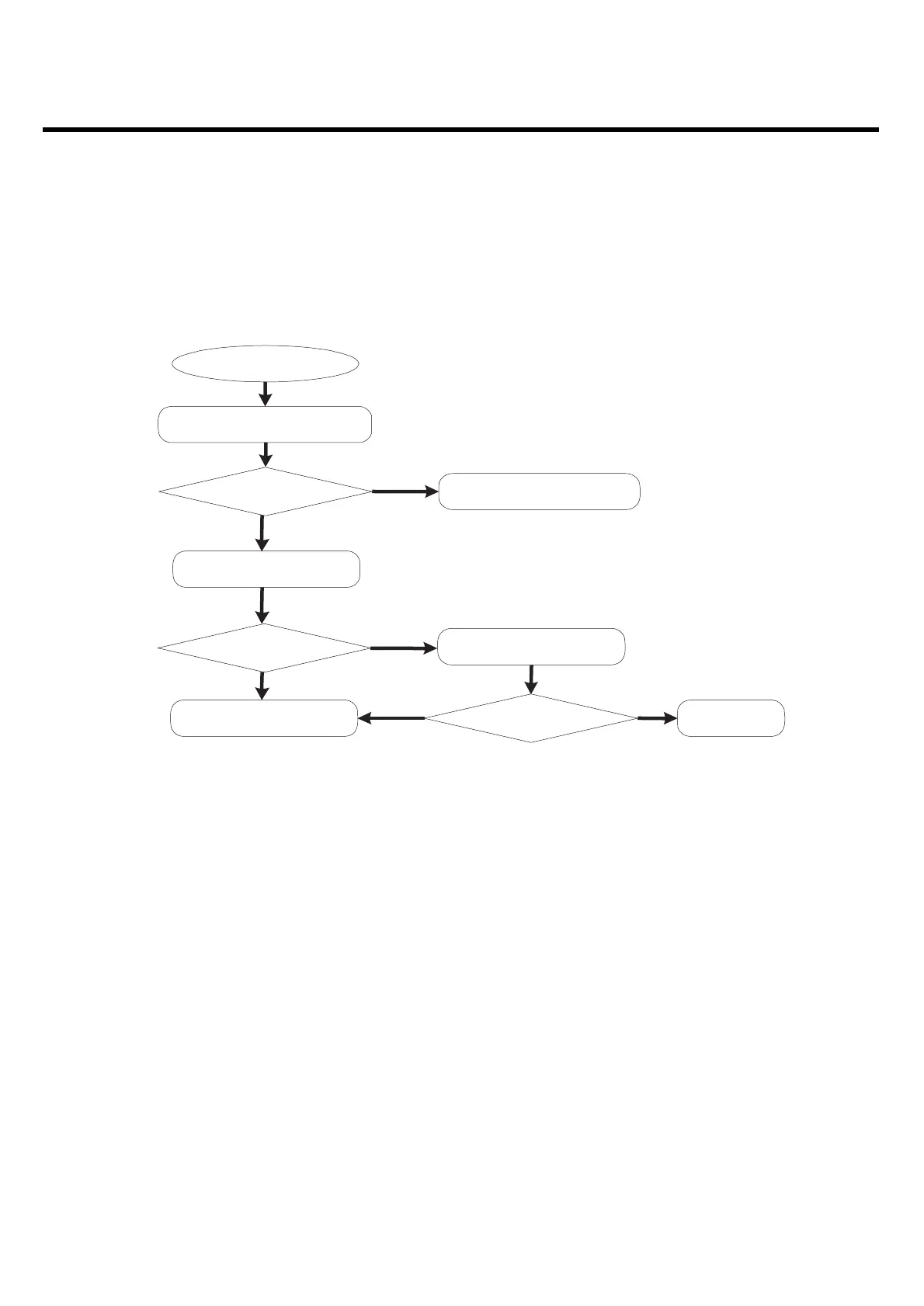

4.20 Main microphone
MIC101 → C936 MIC1P(MSM6281)
LGE Internal Use Only Copyright © 2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes
Start
Change main board
NO
Make a call
Change the MIC
NO
YES
Change the Main boa rd
Make sound t o MIC
Work w ell?
END
YES
NO
YES
Sine wave appears at
C936?
MIC_BIAS(C937)
is 1.8V
