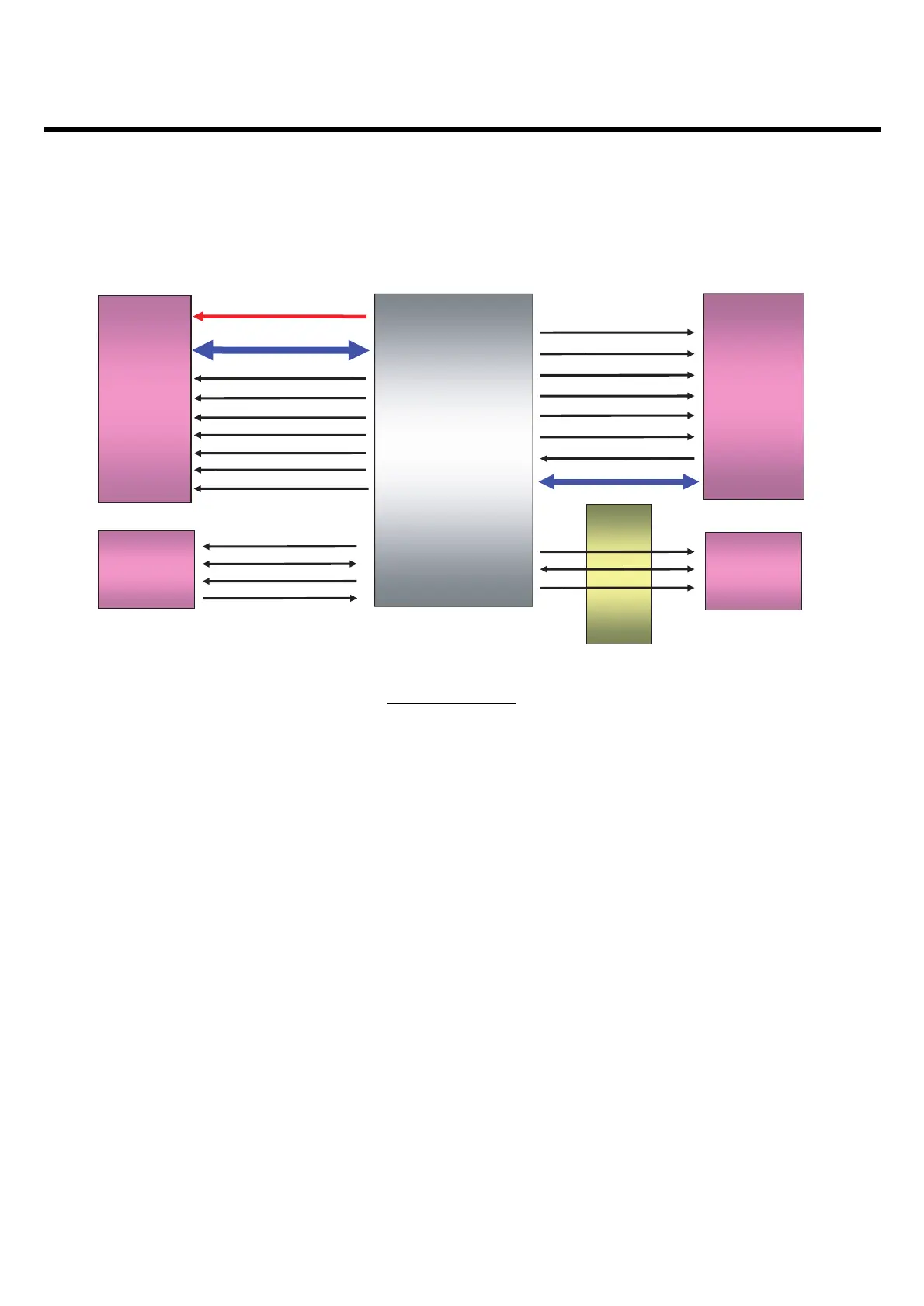

6. BLOCK DIAGRAM
LGE Internal Use Only Copyright © 2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes
PMIC
MSM6281
SDRAM
1Gb
(128MB)
NAND
2Gb
(256MB)
DATA[3 1:0]
ADDRESS[15:0]
WE*
CS*
CAS*
RAS*
CLK_EN
CLK
DQM[3:0]
NAND_CS*
NAND_RE*
NAND_WE*
NAND_CLE
NAND_WP*
NAND_ALE
NAND_READY
DATA[7: 0]
USIM
SIM_RESET
SIM_IO
SIM_CLK
EBI1 EBI2
TFLASH
TFLASH_CMD
TFLASH_DATA
TFLASH_CL K
TFLASH_DECT_
N
Memory interface
