3. TECHNICAL BRIEF

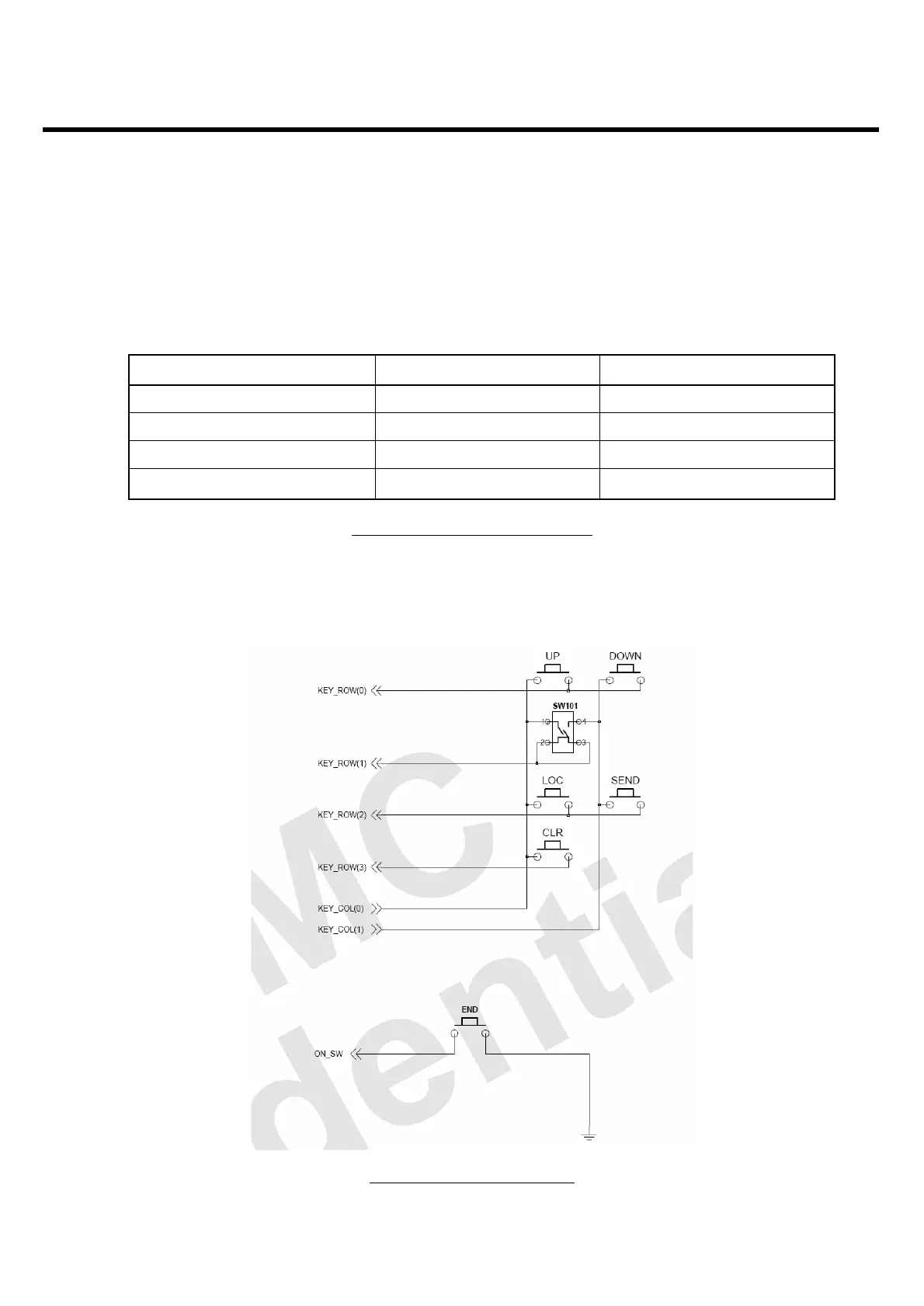

3.10.4 Key Pad
There are 15 main key buttons on touch screen, 3 multi-function keys and 4 side keys in Figure.
Shows the Keypad circuit. ‘END’ Key is connected to PMIC(PM6650). KEY(Side Volume Up/Down,
OK, Send, Clear, Zoom In/shutter)
LGE Internal Use Only
Copyright © 2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes
Figure. Main Keypad Circuit
KEY(Side Volume Up/Down, OK, Send, Clear, Zoom, In/shutter)
Table. Key Matrix Mapping Table
COL(0) COL(1)
ROW0 UP DOWN
ROW(1) CAMERA Auto Focus CAMERA RECORD
ROW(2) LOCK SEND
ROW(3) CLR N/A
To Next Page
