LG CU920 - WCDMA Block Troubleshooting Steps

To Next Page

To Previous Page

LGE Internal Use Only

Only for training and service purposes

4.7.2 Checking WCDMA PAM Control Block

PAM control signal

1. PWR_DET : UMTS Tx Power Detected value (Check R102)

2. TX_AGC_ADJ : UMTS RTR6275 Tx Amp Gain Control

3. +VPWR : UMTS PAM Main Voltage (3V < +VPWR < 4.2V)

4. PA_ON1 : Enable W850 band (C152)

5. PA_ON2 : Enable W1900 band (C168)

6. PA_R1 : Control signals that step the active PA mode and bias

4. TROUBLE SHOOTING

- 98 -

WCDMA Dual PAM(W850 & W1900)

+VPWR

WCDMA Dual

Tx Saw Filter

W850

Couple

W1900

Coupler

PA_ON1:

W850Enable

(Check C152 )

PA_ON2: W1900 Enable

(Check C168 )

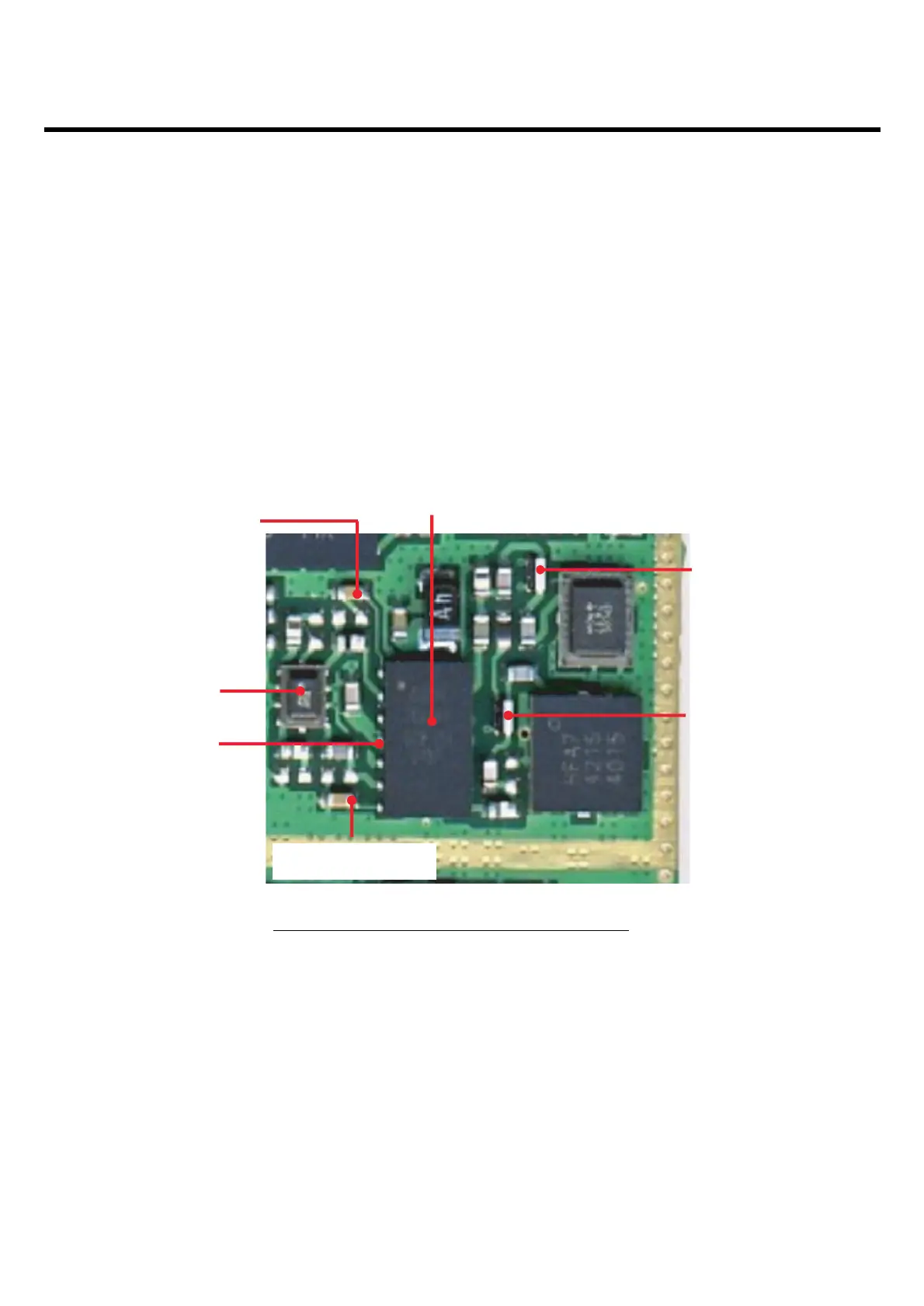

Fig. 4.7.2.1 Test point of the WCDMA PAM Block
