LG DS80QY.DDEULLK Service Manual

Copyright © 2022 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
2-102-9
C
B
B
C
A
A
952
A45W
A54W
955
953
951
954
A900

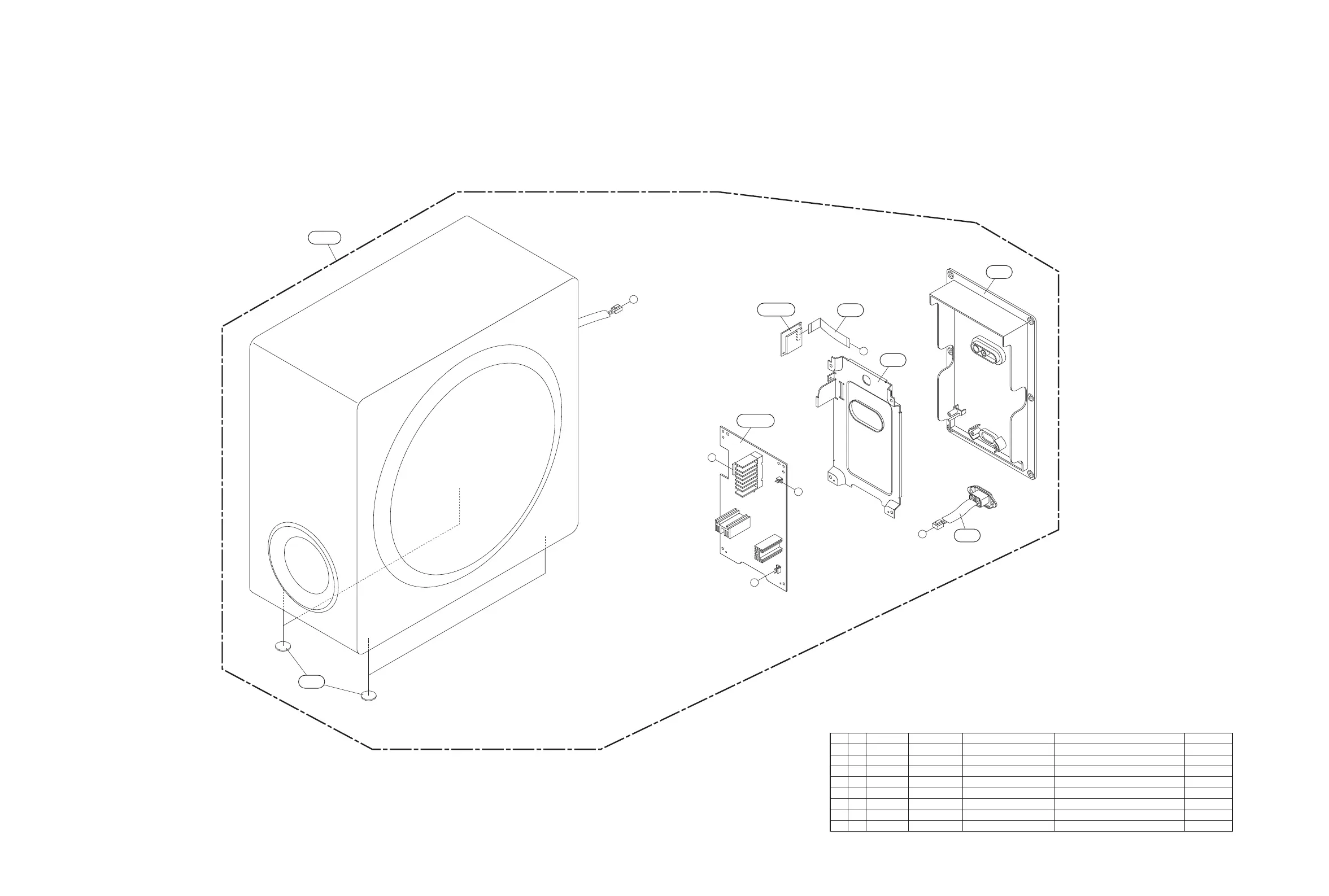

2. WIRELESS SUBWOOFER (SPQ8-W) SECTION
• Wireless subwoofer parts list
RUN DATE : 3-February-2022
S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION NAME
A900 TCG37551402 Active Woofer SPQ8-W S90QY.DUSALLK(new color
Woofer System
A45W EBR35847001 PCB Assembly SQ Woofer AMP+SMPS TOTAL ASSY AMP+SMPS Board
A54W EAT65179301 Module,RF Full Module(RxTx) WL1SB21_ETWADYEC02_1:2_IA9QH5 Wireless Board
951 AGL30109401 Panel Assembly,Rear SPQ8-W all Panel Rear Rear Panel
952 MDP64332401 Foot CUTTING SILICON HOME THEATER S Foot
953 EAD62131542 Cable,FFC 26P050D-H01-0F01A-T 70 70MM 0. Cable,FFC(26p)
954 EAG63233208 Socket,Power DAC-18JN08 2P STRAIGHT WIRE BK Power Socket
955 MDQ66754501 Frame PRESS SECC 1.0 SPQ8-W PRESS Fr Frame
