ONE POINT REPAIR GUIDE
1. POWER ON ERROR
Fundamental power check points.
1-1. 12 V
1) Check 12 VA at WL708.
2) If 12 V is not checked at the point, then find PVDD at pin2 of WIC703.
3) 1), 2) is NG, replace rear kit board.
1-2. 3.3 VA
1) Check 3.3 VA at WL707.
2) If 3.3 VA is not checked at the point, then find 12 VA at pin3 of WIC705.
3) 1), 2) is NG, replace rear kit board

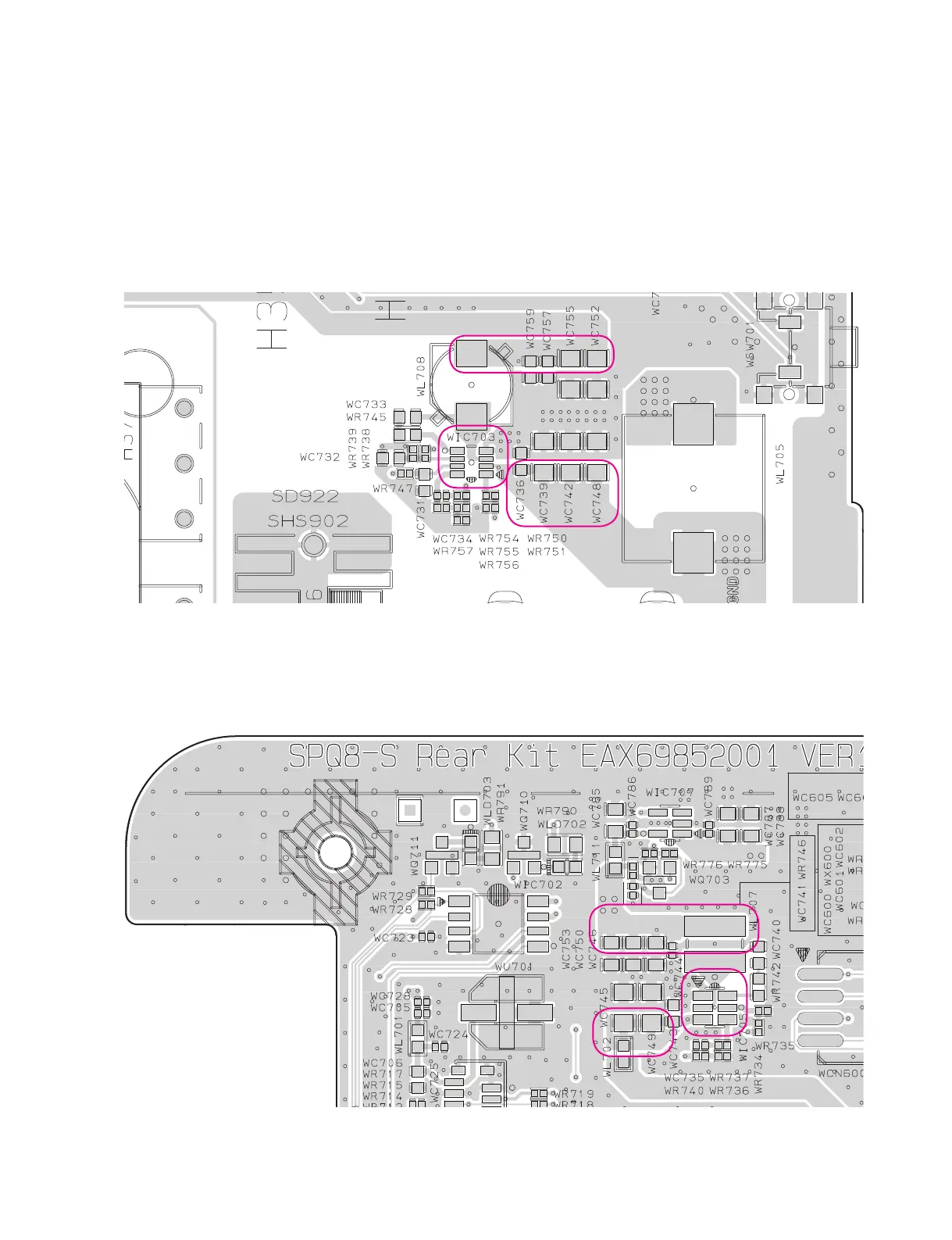

< Rear kit board top view >
< Rear kit board top view >
WIC703
WIC705
3.3 VA
12VA
PVDD
12 VA
