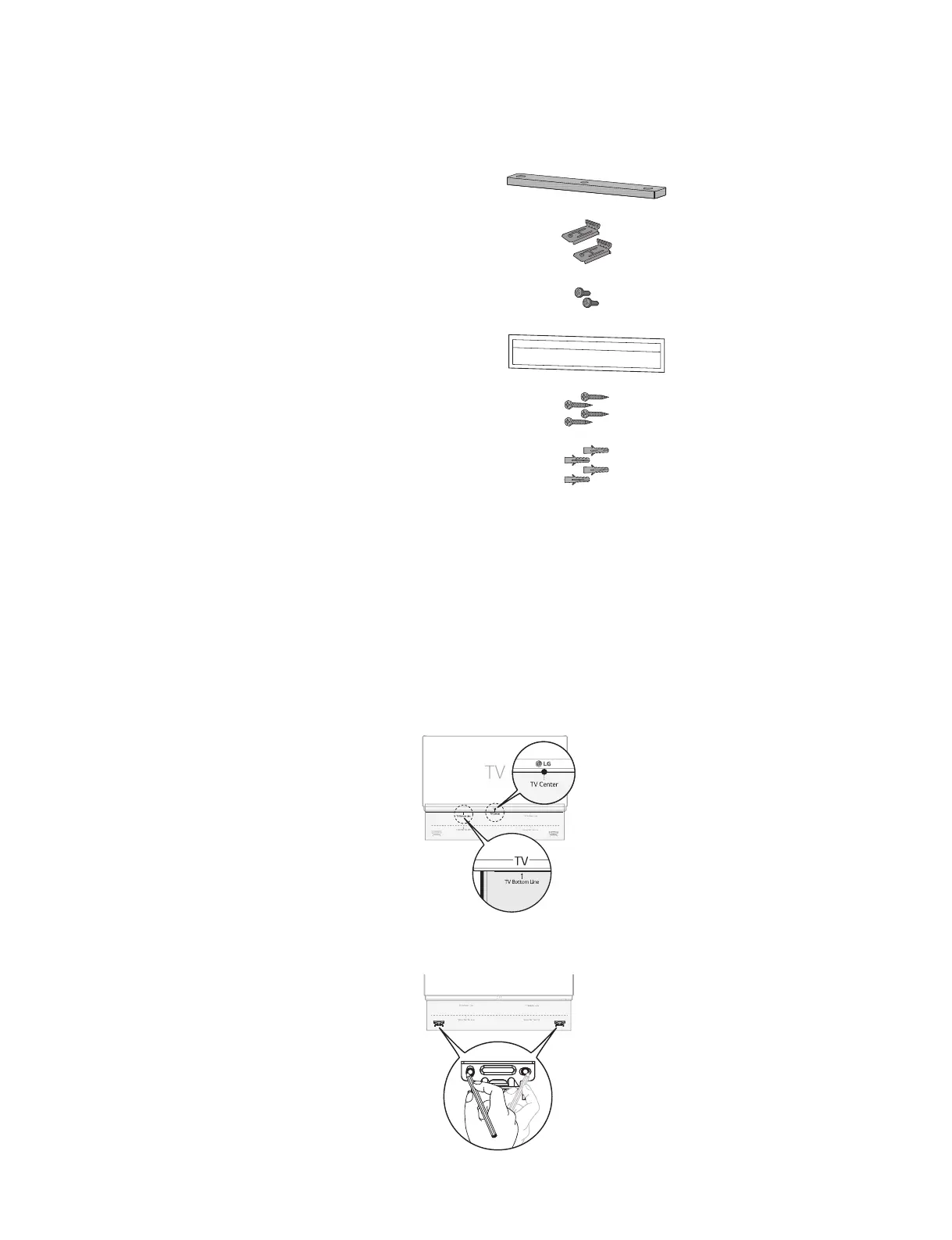

1. Components for mounting the product
1) Sound bar
2) Wall bracket
3) Sound bar screws
4) Wall bracket installation guide
5) Bracket screws
6) Wall plugs
Note :
• Screws and Wall Plugs are not supplied for mounting the product. We recommend the Hilti (HUD-1 6 x 30)
for the mounting.
2. Mounting the Product to a Wall
1) Find the wall bracket installation guide in the product package.
2) Align the “TV Bottom Line” on the wall bracket installation guide with the bottom of the TV, and attach it to the wall.
Align the center of the wall-mounted TV with the part marked “TV Center” in the installation guide.
3) With a pen, mark screw holes on the installation guide where the wall brackets will be attached.
MOUNTING THE PRODUCT TO A WALL
