LG DVX641 - Connecting to an Amplifier; Connecting Audio Cable; Connecting COAXIAL (Digital Audio) Cable

Connecting 11
Connecting
2
Connecting to an
Amplifier

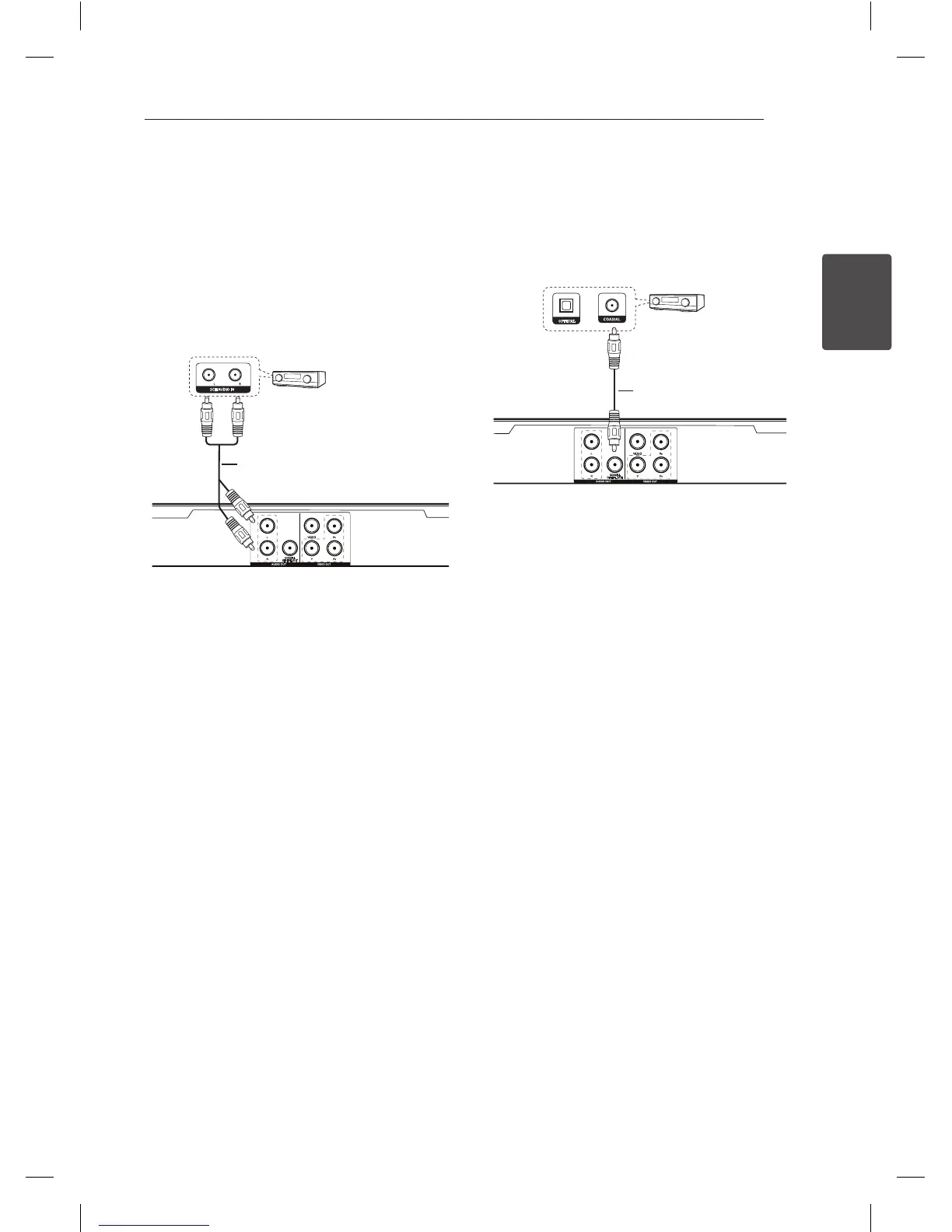

Connecting Audio cable
Connect the AUDIO OUT on the unit to 2CH AUDIO
IN on amplier with Audio cable, such as AUDIO
Left/Right with white/red
Connecting COAXIAL (digital
audio) cable
Connect the COAXIAL (digital audio out) on the
unit to Digital Audio IN (COAXIAL) on amplier with
COAXIAL cable.
OPTICAL
y
If your TV is not capable of handling 96 kHz
sampling frequency, set the [Sample Freq.]
option to [48 KHz] on the setup menu (See page
12).
y
If your TV is not equipped with Dolby Digital
and MPEG decoder, set the [Dolby Digital] and
[MPEG] options to [PCM] on the setup menu
(See page 12).
Audio Cable
Amplier/
Receiver
Rear of the Unit
Coaxial Cable
Amplier/
Receiver
Rear of the Unit
