LG F09MT - Operation; Parts and Functions

9
OPERATION
EN

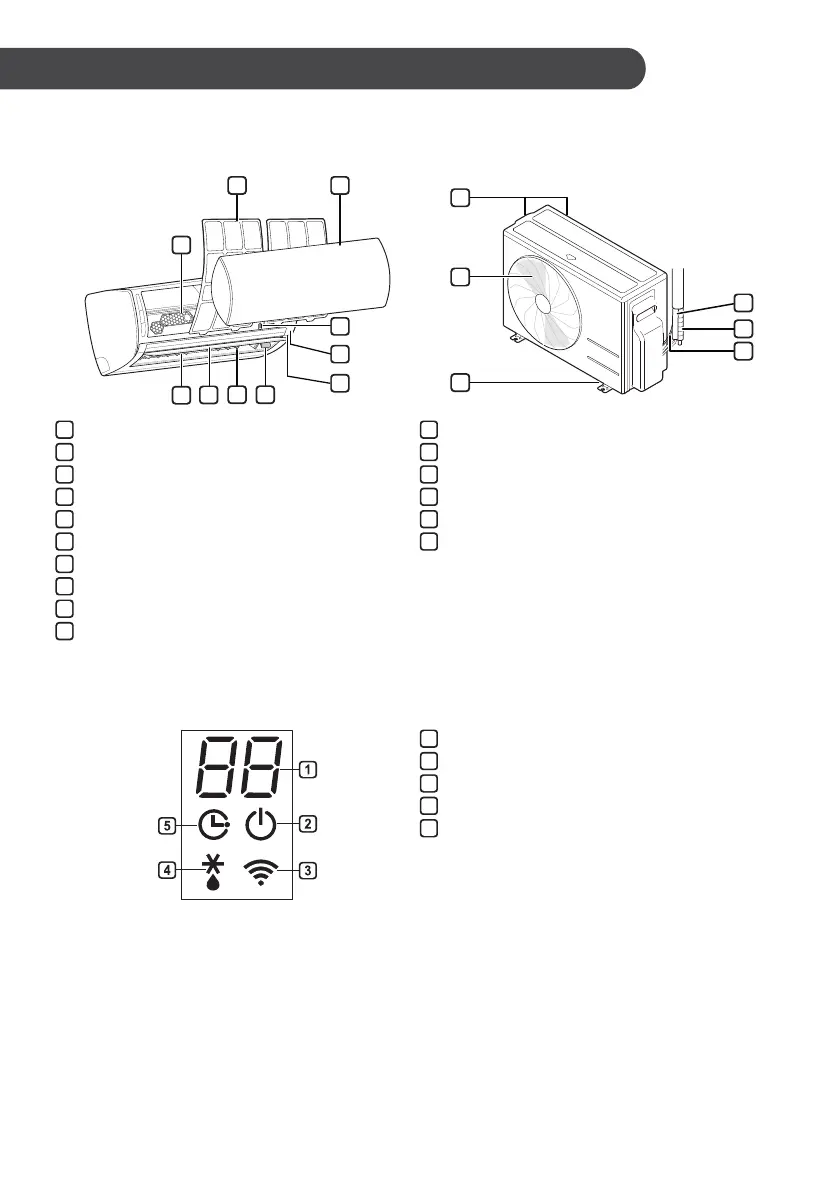

Parts and Functions
Indoor Unit Outdoor Unit
1
2
3
4
5
6
7
8
9
10
1
2
3
4
5
6
On/Off Button
Signal Receiver
Operation Lamp
Ionizer
Air Deflector (Vertical Louver)
Air Deflector (Horizontal Vane)
Air Outlet
Micro Dust Filter
Air Filter
Front Panel
1
2
3
4
5
6
7
8
9
10
Refrigerant Pipes
Drain Hose
Connection Wire
Mounting Feet
Air Outlet Vents
Air Intake Vents
1
2
3
4
5
6
Indoor Unit Display
Set-Point / Room Temperature
On/Off
Wi-Fi
Defrost / Pre-Heat Operation
Timer
1
2
3
4
5
