DISASSEMBLY
- 10 -
1. TILT/SWIVEL & BACK COVER REMOVAL
1) Set the monitor face downward.
2) Carefully remove the Tilt/Swivel by pulling it upward.
3) Remove two screws (a).
4) Release the latch (c). (See Figure. 1 and Tip Spec.)
5) Slide the Back Cover away from the Front Cabinet of the monitor.
Tip
C
B
A
Tip Spec.
A(Width) : 5.0~15.0mm
B(Depth) : 0.6~0.9mm
C(Height) : 12.0mm
(a)
(a)

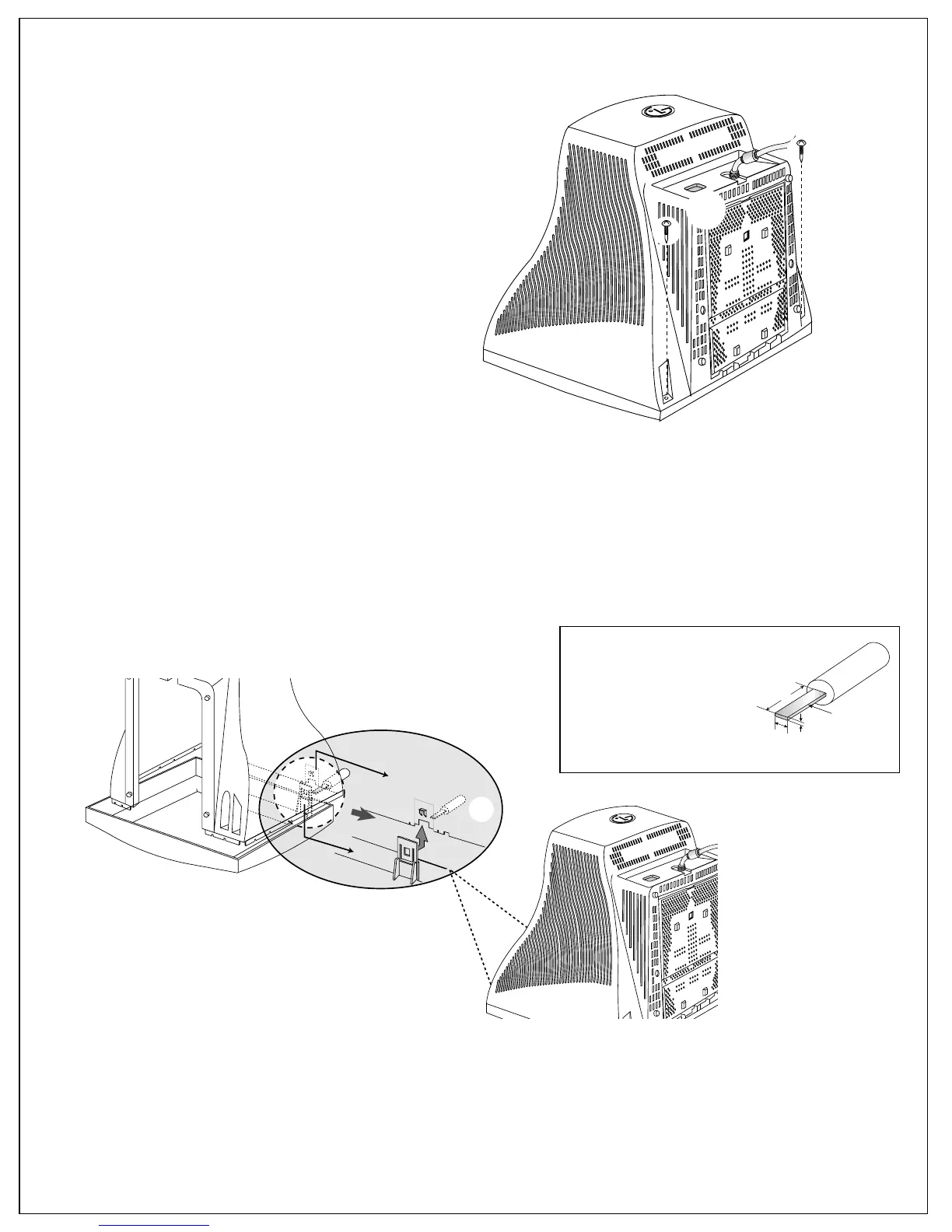

Figure.1
