LG Flatron M1721A - ADC Adjustment for RGB-PC Input; RGB-PC Signal ADC Calibration; Service On-Screen Display (OSD); Service OSD Menu Functionality

- 15 -
3. RGB-PC input ADC
■ Signal equipment display
Output Voltage : 730 mVp-p
Impress Resolution : SXGA (Model No.45 at MSPG925L)
Pattern : Gray pattern that left & right is black and center is white signal
(Pattern No.28 ant MSPG925L)
1) If Source change from AV2 to RGB-PC, Monitor executes auto intelligent.
Do not ADC In this condition.
2) Execute ADC after AC power off/on.
3) IN-START selection of Service Remote Controller
4) AUTOADC Selection
5) Right button selection in Auto Gain
Then, Value of Offset and Gain may change.
Service Menu
Auto ADC
Reserved
Option 1
Option 2
Option 3
Reset All
XXXX. XX. XX
NTSC - XX
LOC Ver XX. XX. XX
Sedna Ver XX. XX. XX
24 NG
Option 4
DCXO NG BRIFE NG
HD NG AV NG
Auto Gain
BRIFE
Green Gain
BRIFE - USA
BRIFE - KOR
Blue Gain
Red Offset
Green Offset
Blue Offset
Red Gain
00
00
00
00
00
00
00
00
00
(730mVp-p)

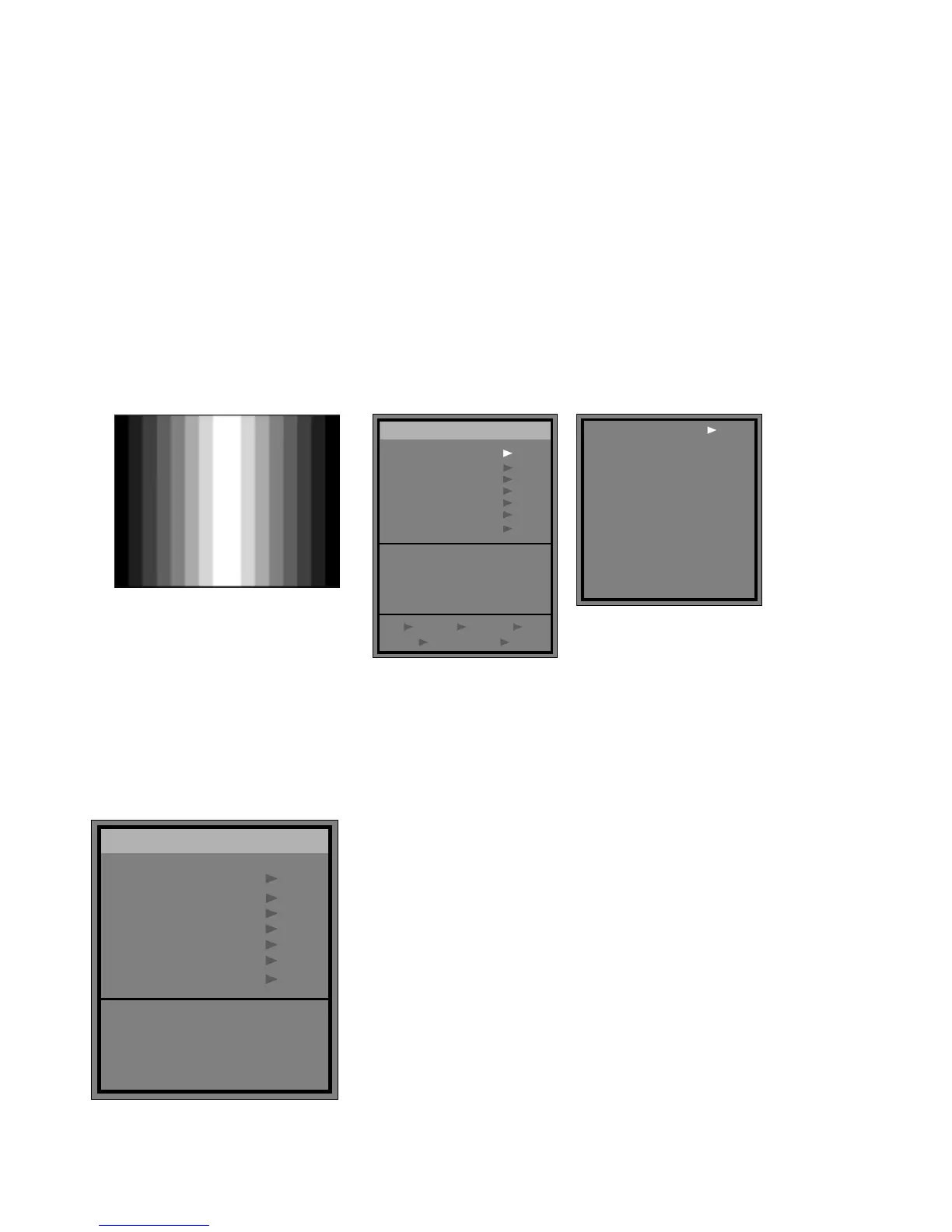

ADC Adjustment Pattern (No.28)
Service Main Menu
Auto Gain
SERVICE OSD
Service Menu
Auto ADC
Reserved
Option 1
Option 2
Option 3
Reset All
200X. 0X. 0X
NTSC - XX
0X. 0X
LOC Ver X. XX. XX
Sedna Ver X. XX. XX. XX
Option 4
■ Description of operation
- Auto ADC : Adjust Auto ADC and Adjust RGB Gain/Offset
- Option 1 : Adjust Tuning
- Option 2 : Adjust Sound
- Option 3 : Adjust Country, Language
- Option 4 : Adjust etc..
- Reset All : Default setting
