LG Flatron M1721A - EDID Data Adjustment; EDID Port Configuration; EDID Data Read;Write Procedure

EDID ADJUSTMENT
- 12 -
Windows EDID V1.0 User Manual
Operating System: MS Windows 98, 2000, XP
Port Setup: Windows 98 => Don’t need setup
Windows 2000, XP => Need to Port Setup.
This program is available to LCD Monitor only.

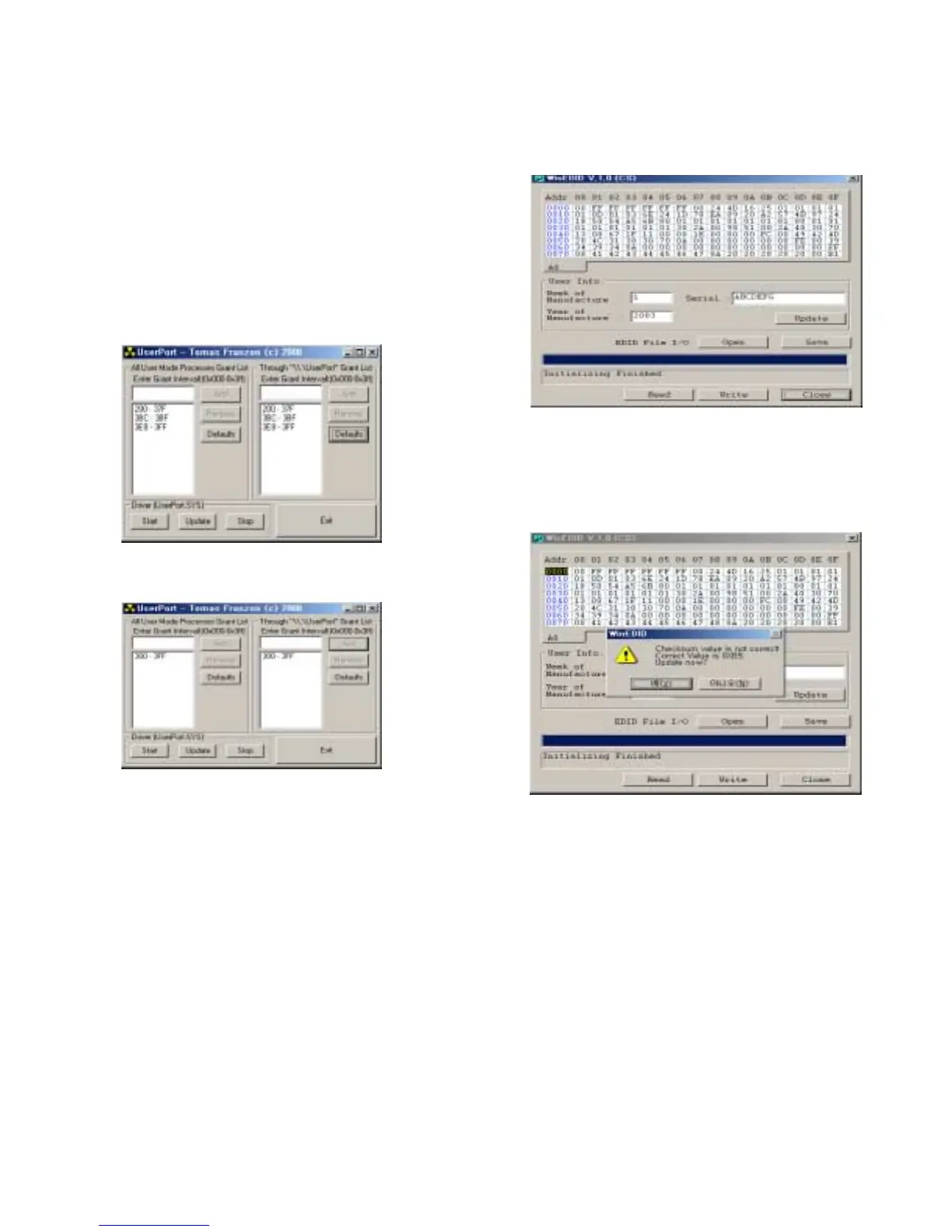

1. Port Setup
a) Copy “UserPort.sys” file to
“c:\WINNT\system32\drivers” folder
b) Run Userport.exe
c) Remove all default number
d) Add 300-3FF
e) Click Start button.
f) Click Exit button.
2. EDID Read & Write
1) Run WinEDID.exe
2) Edit Week of Manufacture, Year of Manufacture,
Serial Number
a) Input User Info Data
b) Click “Update” button
c) Click “ Write” button
※※
If you don't write EDID, check below
1. Enter "SVC Menu" (refer 14page)
- Enter "Etc"
- Enter "Write Protect
1 : EDID protection (No write)
0 : EDID wirte
- Write EDID
2. Escape " SVC Menu" and push "In-stop" Button on SVC-Remote controller.
