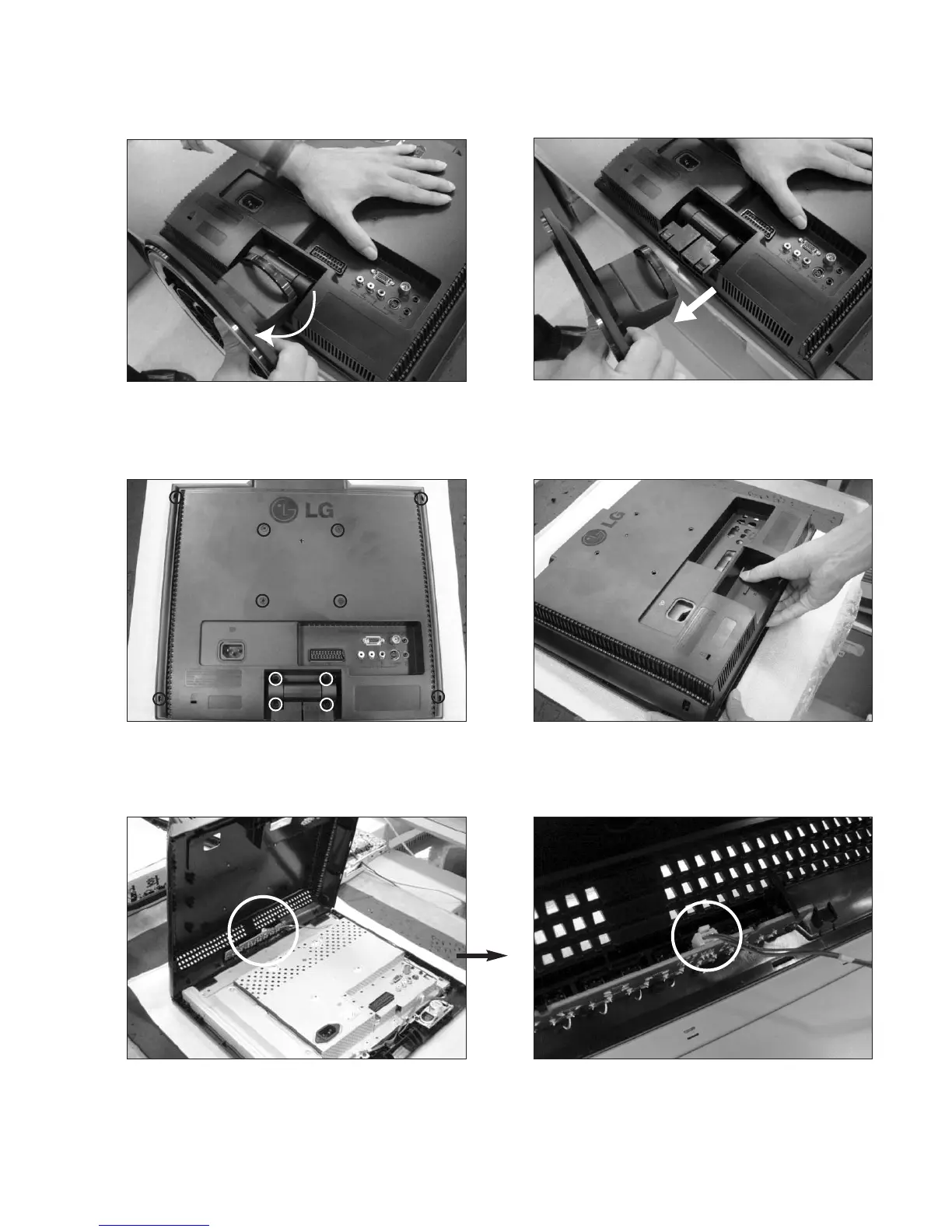

DISASSEMBLY
- 8 -
Hold the stand body & stand base.
1. Let the all latches are separated
2. Disassemble back cover.
Separate body & stand base.
Remove the screws.
# 1
# 4
# 2
# 3
Disassemble Connector.
# 5
