LG HM031M User Manual

18 _ Air-to-Water Heat Pump
Part 1. Monobloc Unit

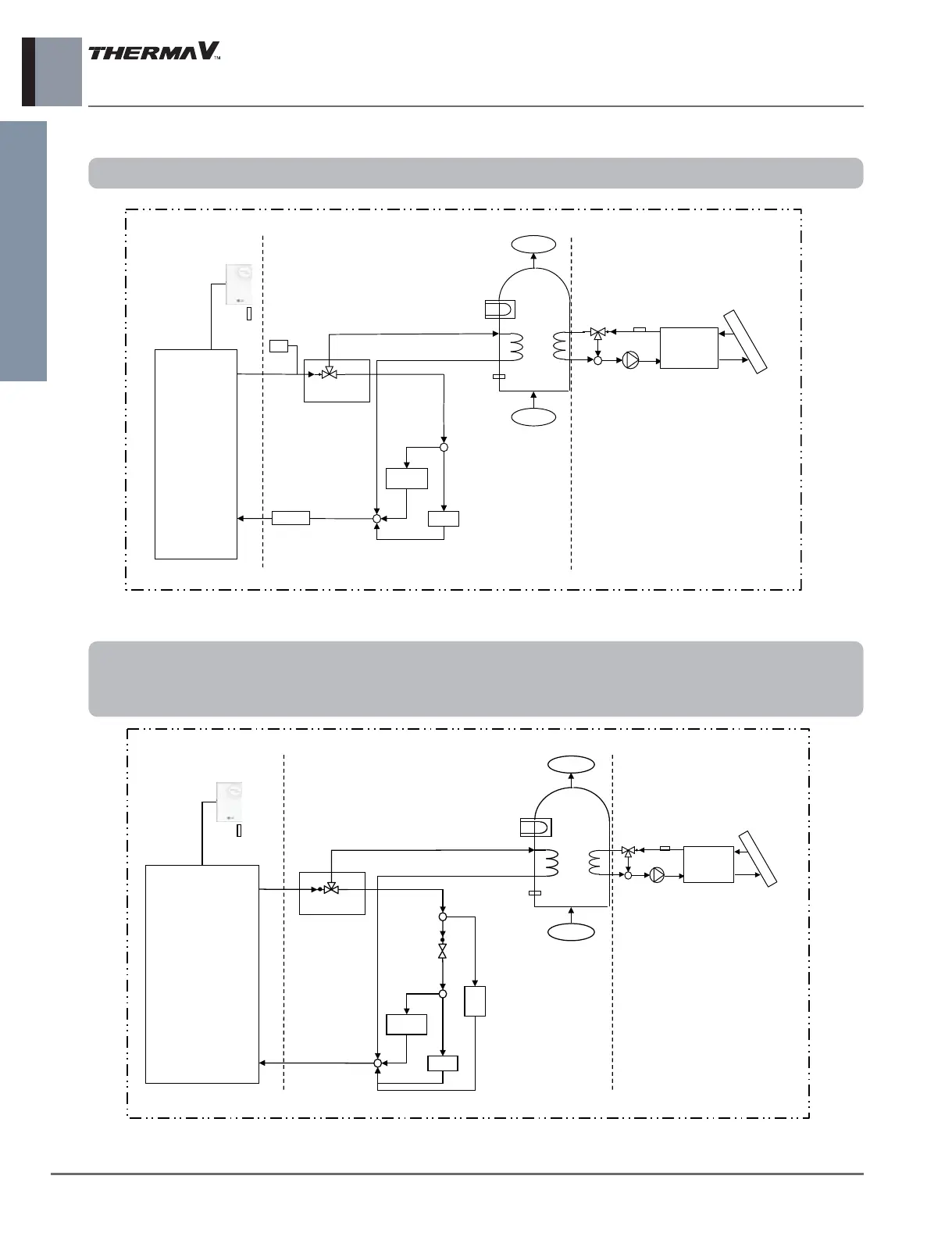

7. Piping Diagram
n
Field Installation
EXP / TANK
Under-floor
Heating
Radiator
City Water
Shower
W / TANK
3WAY V / V_1
Unit
(Monobloc )
B / HT
<Field Installation>
Th11
Remote Room
Temperature Sensor
(accessory)
<LG Supply>
<Accessory>
Domestic Hot
Water Tank
is installed.
(Domestic Hot
Water Tank kit
is necessary)
<Basic Installation>
❈ Field installation parts are not provided in product
Th12
Solar thermal
component
W/PUMP_2
3WAY V / V_2
Solar thermal system
Solar panel
Th13
Solar thermal system is connected.
(Solar thermal kit is necessary)
** Electric Heater for monoenergetic operation
cannot be connected to Product.
Heat pump has to be designed for monovalent use!
Strainer
❈ Remark
Models : AHBW036H0 [HM031M]
Fan
Coil
Unit
Under-floor
Heating
Radiator
3WAY V / V_1
2WAY V / V
Unit
(Monobloc)
<Field Installation>
Th11
Remote Room
Temperature Sensor
(accessory)
<LG Supply>
<Accessory> Solar thermal system is connected.
(Solar thermal kit is necessary)
Domestic Hot Water Tank
is installed.
(Domestic Hot Water Tank
kit is necessary)
<Basic Installation> Field installation parts are not provided in product
❈
City Water
Shower
W/Tank
Th12
B / HT
Solar thermal
component
W/PUMP_2
3WAY V / V_2
Solar thermal system
Solar panel
Th13
❈ Remark
Models : AHBW056A0 [HM051M] / AHBW076A0 [HM071M] / AHBW096A0 [HM091M]
AHBW126A0 [HM121M] / AHBW146A0 [HM141M] / AHBW166A0 [HM161M]
AHBW128A0 [HM123M] / AHBW148A0 [HM143M] / AHBW168A0 [HM163M]
h Remark: Make sure installation direction & wiring connection method refer to installation manual, wiring diagram
when install the 3 way valve.
h Remark: Make sure installation direction & wiring connection method refer to installation manual, wiring diagram
when install the 3 way valve.
