5. Lifting Method
Air-to-Water Heat Pump _ 6
Part 2. Desing and installation

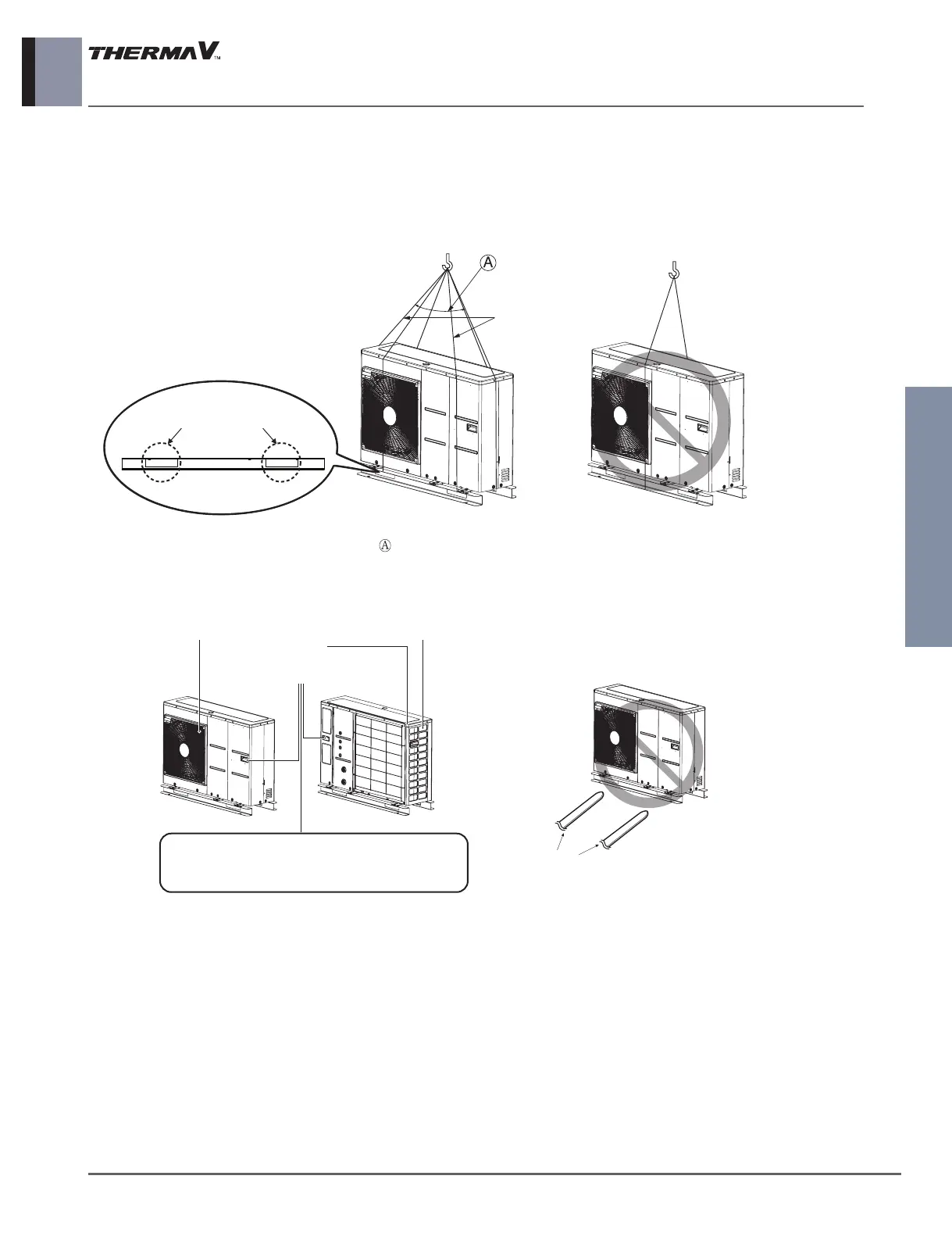

• When carrying the suspended unit, pass the ropes between legs of base panel under the unit.
• Always lift the unit with ropes attached at four points so that impact is not applied to the unit.
• Attach the ropes to the unit at an angle Ⓐ of 40° or less.
• Use only accessories and parts which are of the designated specification when installing.
Sub line
40º or less
Locking points for
transportation ropes
Air outlet grille Intake hole
Corner
Handle
Forklift
Always hold the unit by the corners, as holding
it by the side intake holes on the casing may
cause them to deform.
Be very careful while carrying the unit.
- Do not have only one person carry the unit if it is more than 20 kg (44.1 lbs).
- PP bands are used to pack some products. Do not use them as a mean for transportation because they are dangerous.
- Do not touch heat exchanger fins with your bare hands. Otherwise you may get a cut in your hands.
- Tear plastic packaging bag and scrap it so that children cannot play with it. Otherwise plastic packaging bag may suffocate
children to death.
- When carrying the unit, be sure to support it at 4-points. Carrying and lifting the unit with 3-point support may make it
unstable, resulting in a fall.
