Air-to-Water Heat Pump _ 39
Part 1. Monobloc Unit
12. Controller

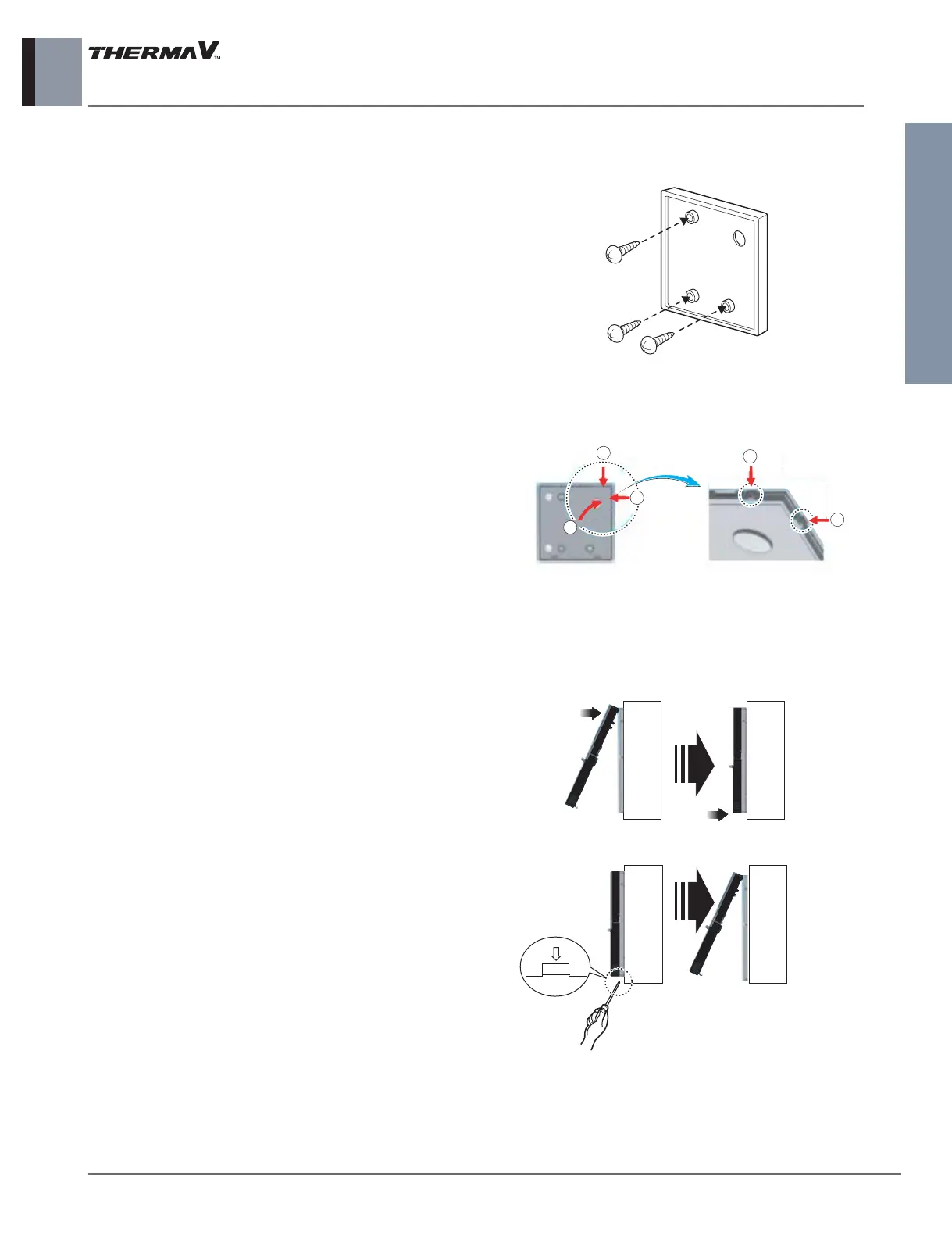

Installation of Remote Controller
1. Please fix tightly using provided screw after placing
remote controller setup board on the place where you
like to setup.
- Please set it up not to bend because poor setup could
take place if setup board bends.
Please set up remote controller board fit to the reclama-
tion box if there is a reclamation box.
2. Can set up Wired remote controller cable into three
directions.
- Setup direction: the surface of wall reclamation, upper,
right
- If setting up remote controller cable into upper and right
side, please set up after removing remote controller
cable guide groove.
h
Remove guide groove with long nose.
①
Reclamation to the surface of the wall
②
Upper part guide groove
③
Right part guide groove
3. Please fix remote controller upper part into the setup
board attached to the surface of the wall, as the pic-
ture below, and then, connect with setup board by
pressing lower part.
- Please connect not to make a gap at the remote con-
troller and setup board’s upper and lower, right and left
part.
When separating remote controller from setup board,
as the picture below, after inserting into the lower
separating hole using screw driver and then, spin-
ning clockwise, remote controller is separated.
- There are two separating holes. Please individually sep-
arate one at a time.
- Please be careful not to damage the inside
components when separating.
To Next Page
