Copyright © 2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
2-15

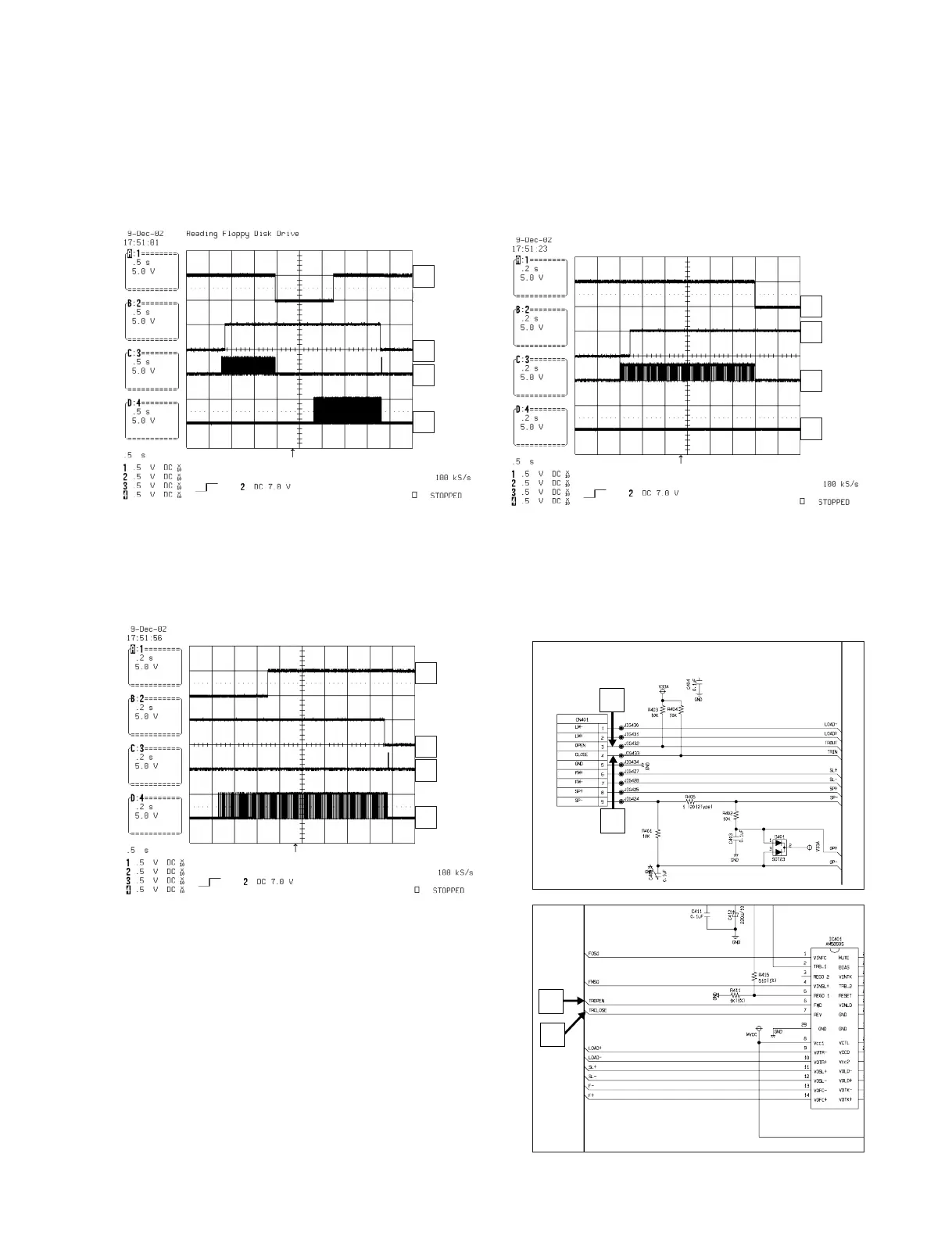

3) Tray open waveform
FIG 3-3
3. TRAY OPEN/CLOSE SIGNAL
1) Tray open/close waveform
FIG 3-1
2) Tray close waveform
FIG 3-2
2
1
3
4
1
2
3
4
1
2
3
4
1
2
3
4
