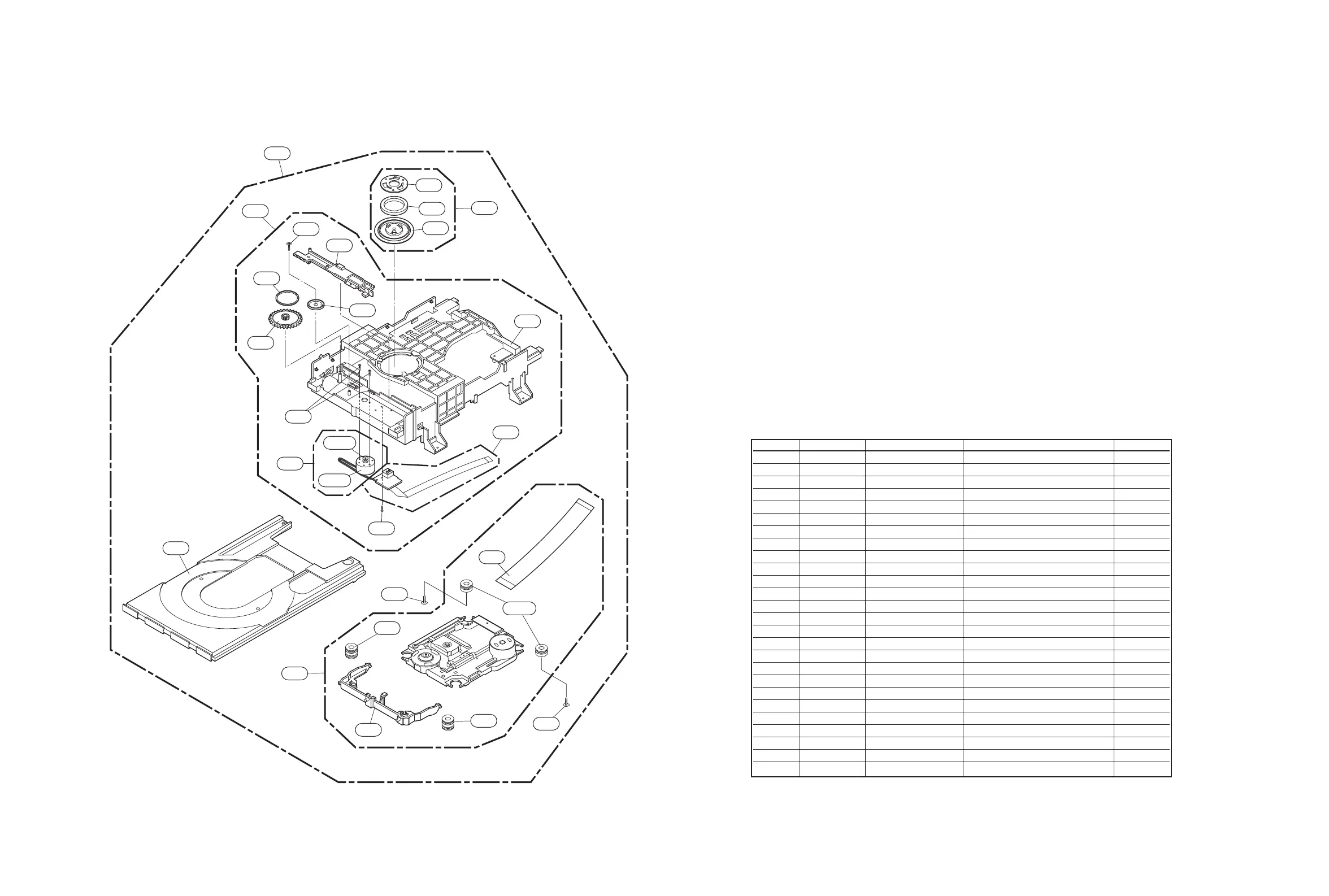

• DECK MECHANISM EXPLODED VIEW(DP-12TV)
012
010
012
012A
019
442
442
A26
A02
A01
A03
001
002
003
439
018
013
017
014
020
016
440
015
015B
015A
435
026
LOCA. NO. LG PART NO. DESCRIPTION SPECIFICATION REMARKS
A26 6721RJD100H Deck Assembly,Audio HOME THEATER DP-12TV (HZ) IM T NSP
A01 ACA34280801 Clamp Assembly DECK/MECHA DP-12/13 ferrite ty
A02 3041R-T010J Base Assembly DP-12T LOADING (HZ)
A03 3041R-T011L Base Assembly SLED DP-12TV (HZ)
001 MGJ38556601 Plate PRESS SECC 0.8 dp-13 PRESS upp NSP
002 RAB30611501 Magnet,Ferrite FERRITE 50G NSP
003 MBU38556801 Clamp MOLD POM DECK/MECHA dp-13 MOLD NSP
010 6850R-JW16B Cable,FFC 1.0-23-160-E-5x10x5x10-0.035x0
012 MCQ41263801 Damper MOLD BUTYL RUBBER DECK/MECHA D
012A MCQ38556901 Damper EXTRUSION BUTYL RUBBER DECK/ME
013 4400R-0006B Belt MOLD RUBBER DECK/MECHA DP2-5,
014 4470R-0154A Gear COMPLEX DVD DECK/MECHA DP8 PUL
015 4681R-A015A Motor Assembly,DC DVD dp-9 loading
015A 4680R-E008A Motor,DC RF-300EA-1D390(80MM) 2V 90MA 2
015A EAU36590901 Motor,DC FC08I20TLG-1 2V 100MA 0A 1.37K ALTERNATE
015B 4560R-0008A Pulley MOLD POM DVD MD MOLD -
016 6871R-9297J PCB Assembly DP-12T LOADING/FEEDING BACK SI
017 4470R-0176A Gear MOLD POM DVD DP-9 LOADING MO
018 4974R-0067A Guide MOLD POM DVD DP-9C UP/DOWN MOL
019 MDQ39573201 Frame MOLD ABS XR-401 UP/DOWN FRAME
020 MAM39573001 Base MOLD ABS XR-401 MAIN BASE MOLD
026 3390R-0033A Tray MOLD ABS DVD DP-9T(9T-SLIM) MO
435 1SZZR-0011A Screw,Customized MACHINE
439 1SZZR-0075A Screw,Customized - + 1.7MM 10MM SWRCH FZW SIN
440 1SZZH-1007B Screw,Customized + D2.0 6MM SWRCH16A/ZNBK 4MM 1
442 FAB30124101 Screw,Taptite 1szzr-0064 PWH + B 2.6MM 7MM S
NSP : Non SVC Parts
