DETAILS AND WAVEFORMS ON SYSTEM TEST AND DEBUGGING

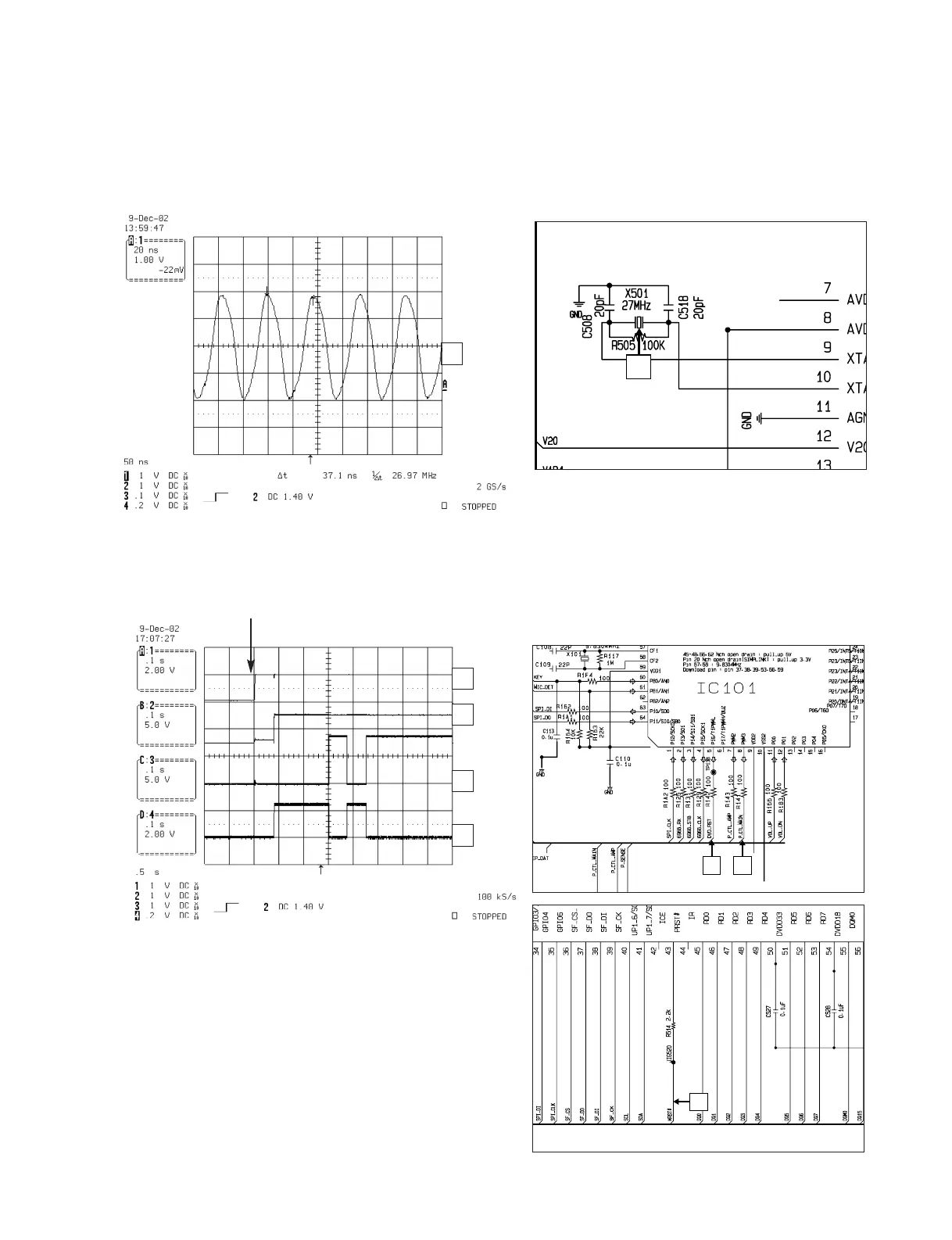

1. SYSTEM 27MHz CLOCK,RESET,FLASH R/W SIGNAL
1)
MT1389/L
main clock is at 27MHz(X501)
1
3 2
4
FIG 1-1
2)
MT1389/L
reset is high active.
Power Cord in
FIG 1-2
1
1
2
3
4
1
2
3
4
IC501
