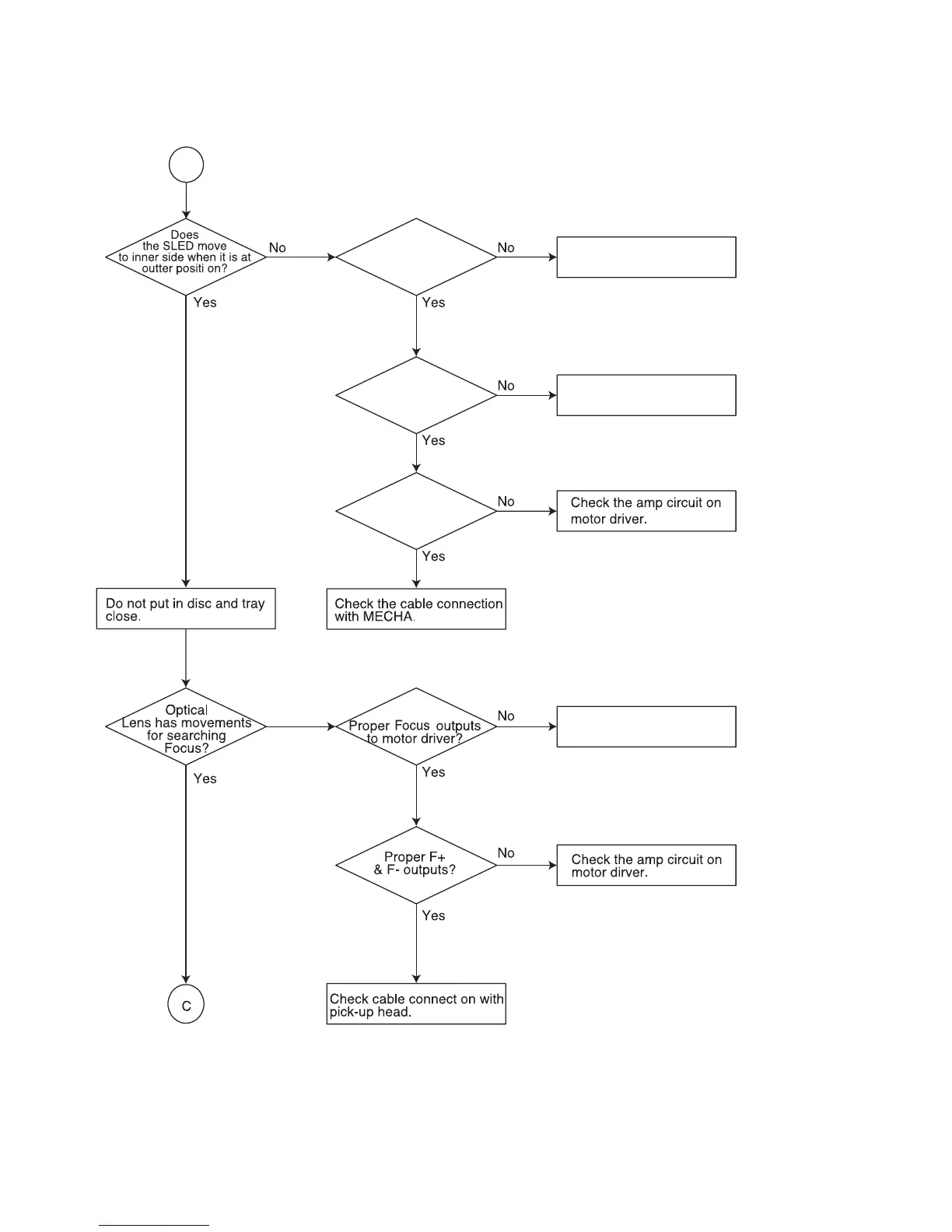

3-5
B
Motor
Driver DRV_MUTE
pin is High?
Motor
Driver DRV_MUTE
pin is High?
SLED+ and
SLED- output
properly?
Check the connection line of
DRV_MUTE
Check the related circuit of
SLEGN
Check Focus connection on
ES8381 and motor driver.
Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
