C
ES8381.

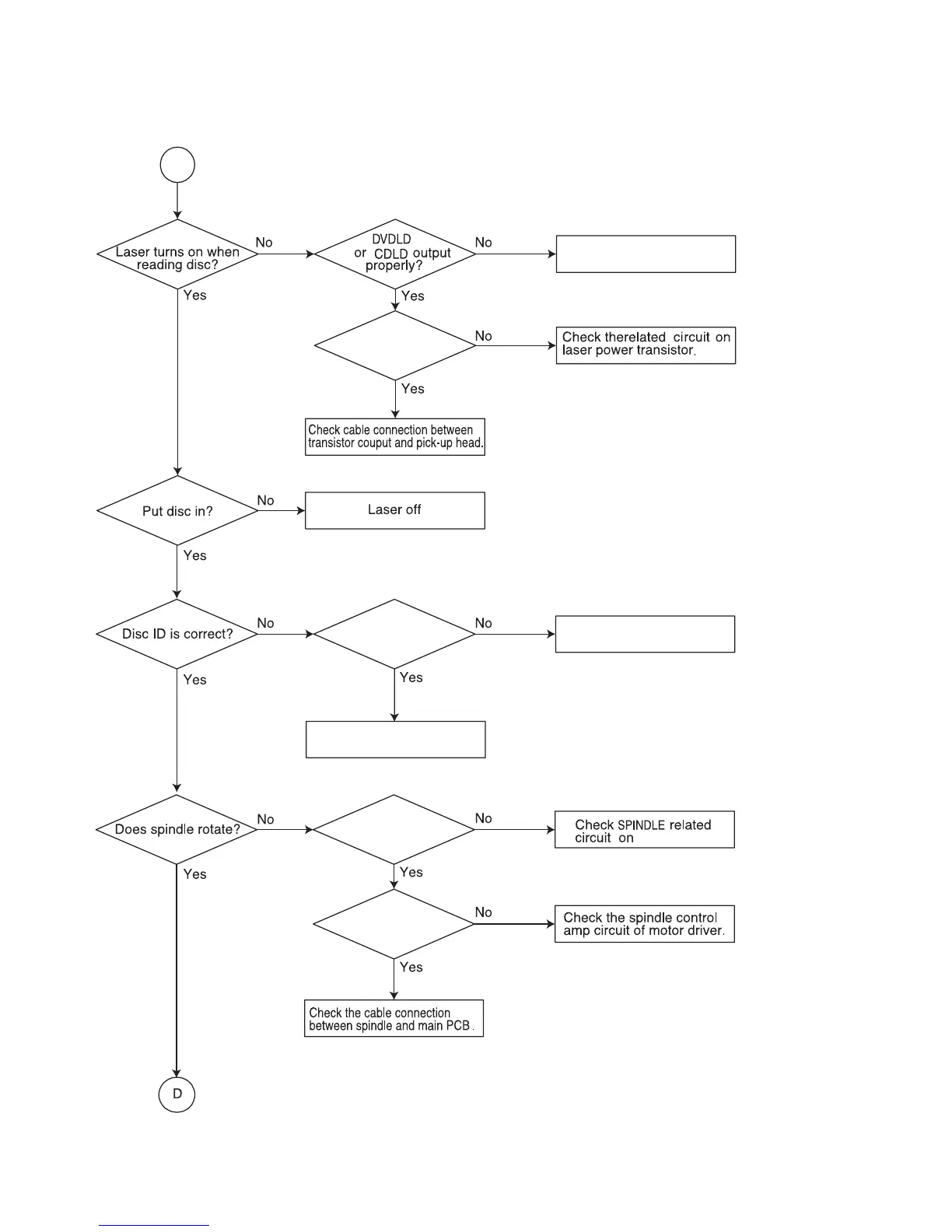

Check the laser power circuit on
ES8381 and connecting to
power transistor.(Q405, Q406)
Collector
voltage of power
transistor is OK?
(Q405, Q406)
Proper
RF signal on ES8381
Proper
SPINDLE signal on
ES8381
SPNP
SPNN output
properly?
Check the related circuit on
ES8381 RF signal.
Check the RF connection
between IP9009 and ES8381.
Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
To Next Page
