LG HT963SA-DP Service Manual

2-22
Copyright © 2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
1)
FL+ : TP611 -> R705
FL- : TP612 -> R710
2)
FR+ : TP609 -> R718
FR- : TP610 -> R722
3)
RL+ : TP603 -> R775
RL- : TP604 -> R780
4)
RR+ : TP601 -> R788
RR- : TP602 -> R792
5)
C+ : TP605 -> R731
C- : TP606 -> R736
6)
W+ : TP607 -> R767
W- : TP608 -> R762

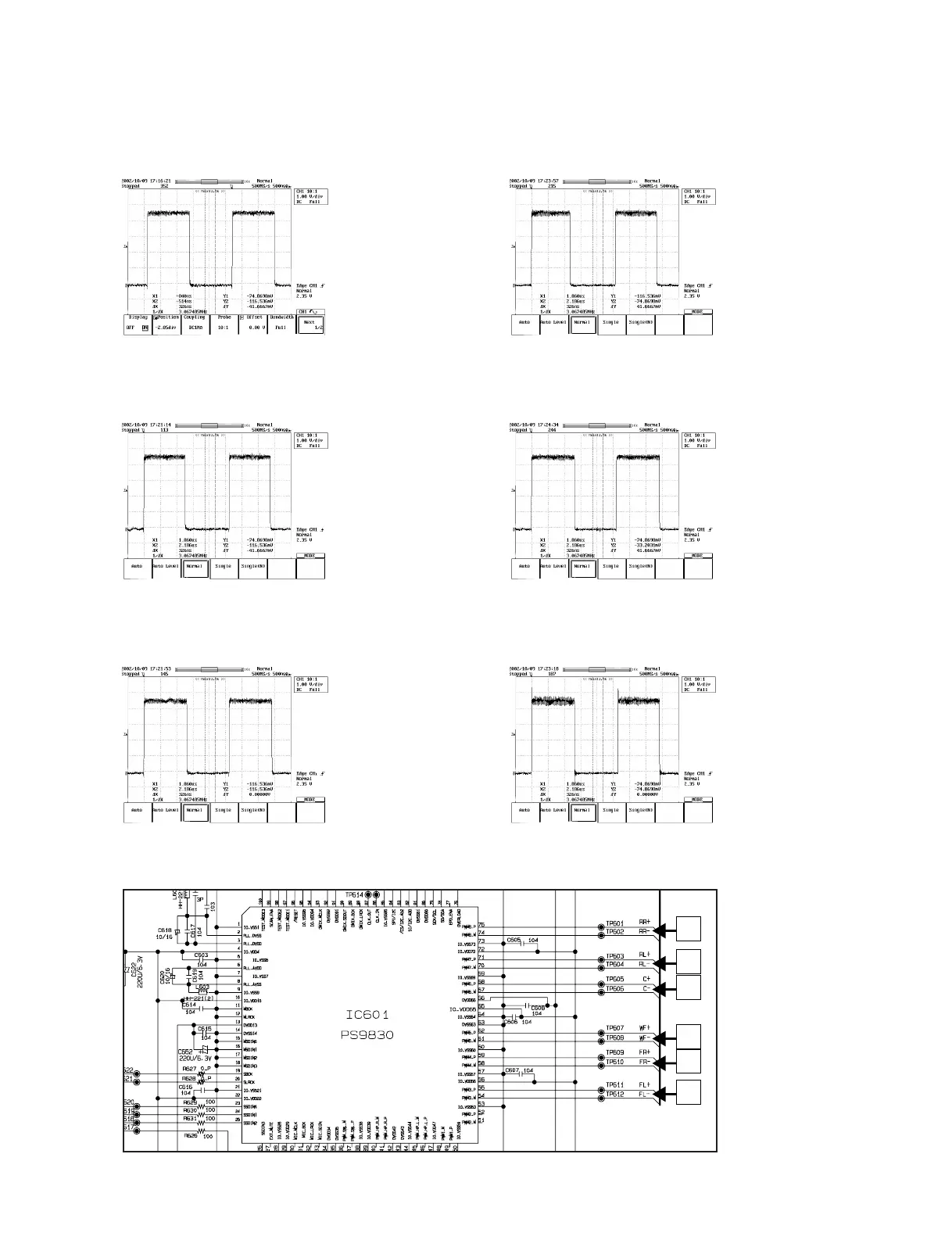

13. DVD & AMP WAVEFORMS
4
3
5
6
2
1
