LG HT963SA-DP Service Manual

4-4
Copyright © 2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only

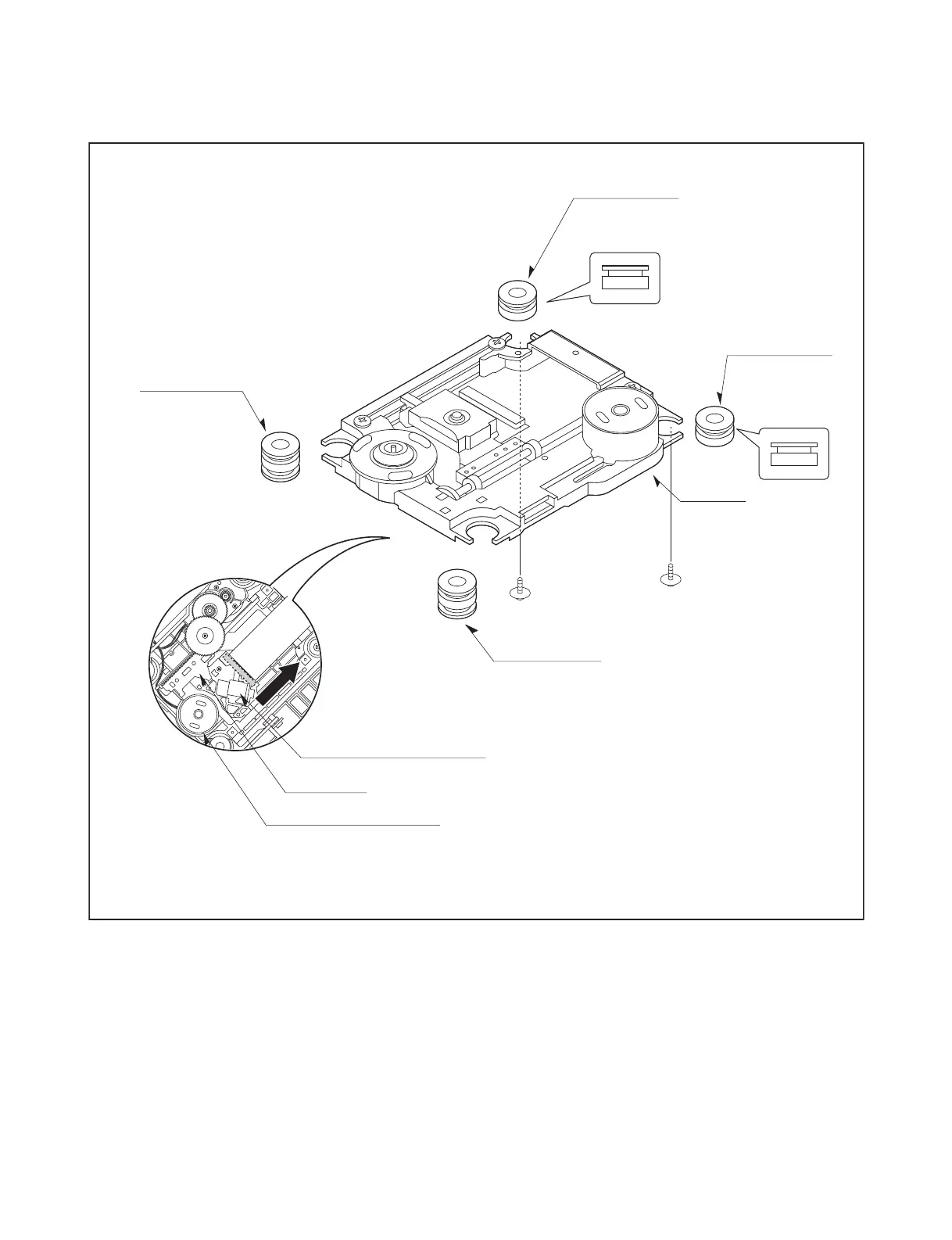

3. Base Assembly Sled (Fig. 4-3)
1) Release 4 Screw(S2).
2) Disconnect the FFC Connector(C1)
3-1. Gear Feed
3-2. Gear Middle
3-3. Gear Rack
1) Release the Scerw(S3)
4. Rubber Rear (Fig. 4-3)
BASE PU
RUBBER DAMPER
RUBBER DAMPER
RUBBER DAMPER
Distinguish upper and
lower sides
(Assemble with care)
Distinguish upper and
lower sides
(Assemble with care)
RUBBER DAMPER
GEAR RACK
GENERAL PICK UP ASSEMBLY
SPINDLE MOTOR ASSEMBLY
Fig. 4-3
(S2)
(S2)
