LG HT963SA-DP Service Manual

2-13
Copyright © 2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only

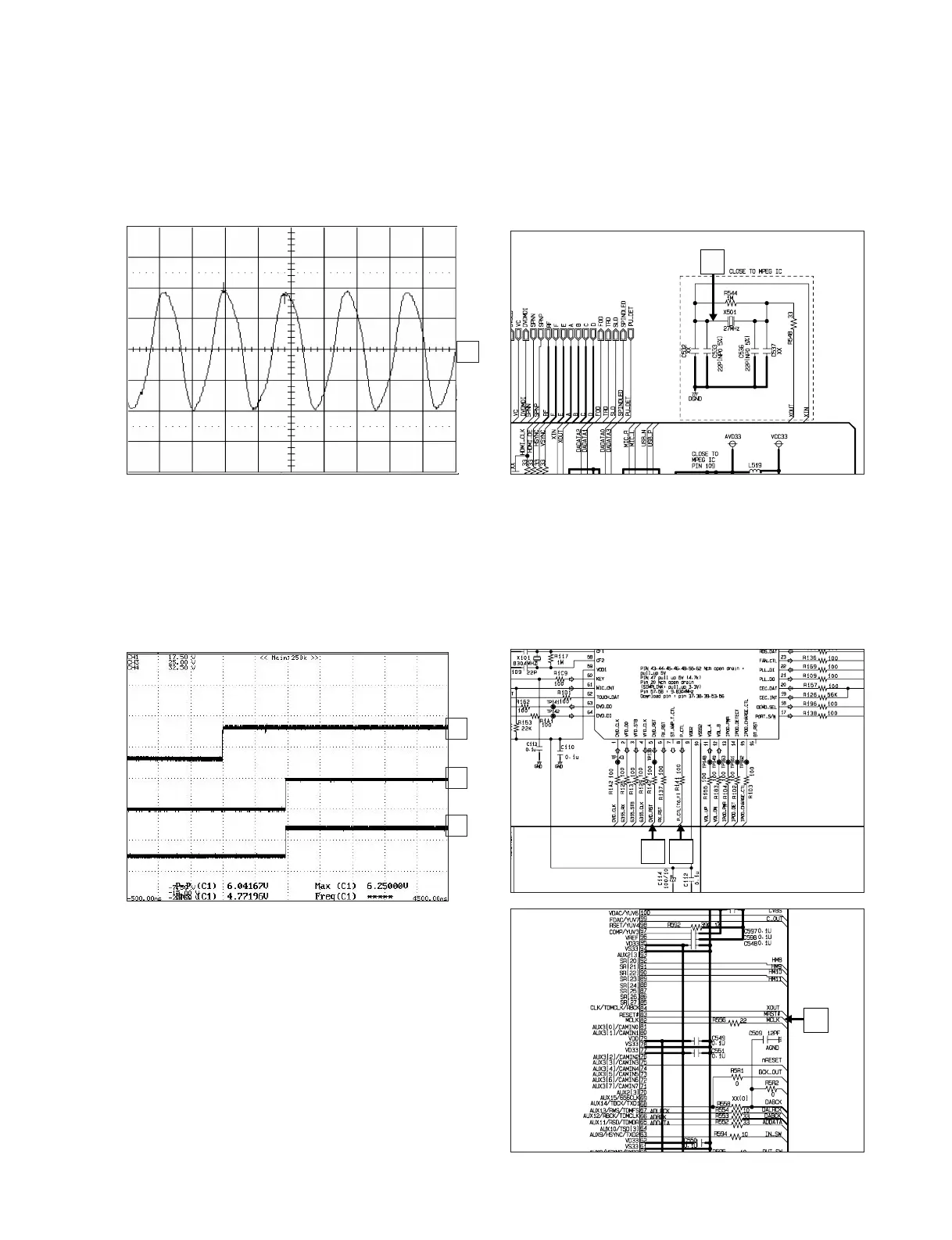

DETAILS AND WAVEFORMS ON SYSTEM TEST AND DEBUGGING
1. SYSTEM 27MHz CLOCK,RESET,FLASH R/W SIGNAL
1) ES8391 main clock is at 27MHz(X501)
FIG 1-1
1
1
2) ES8391 reset is high active.
FIG 1-2
2 1
1
2
3
IC101
3
IC501
PWR_CTL
DVD_RESET
MRST#
