LG LAS751M - Circuit Diagrams

2-402-39
A
1
2
3
4
5
6
7
8
9
10
11
12
B C D E F G H I J K L M N O P Q R ST
MICOM
EAX66427803_Rev1.0(0) MAIN(#1)
2015.07.29
CIRCUIT DIAGRAMS

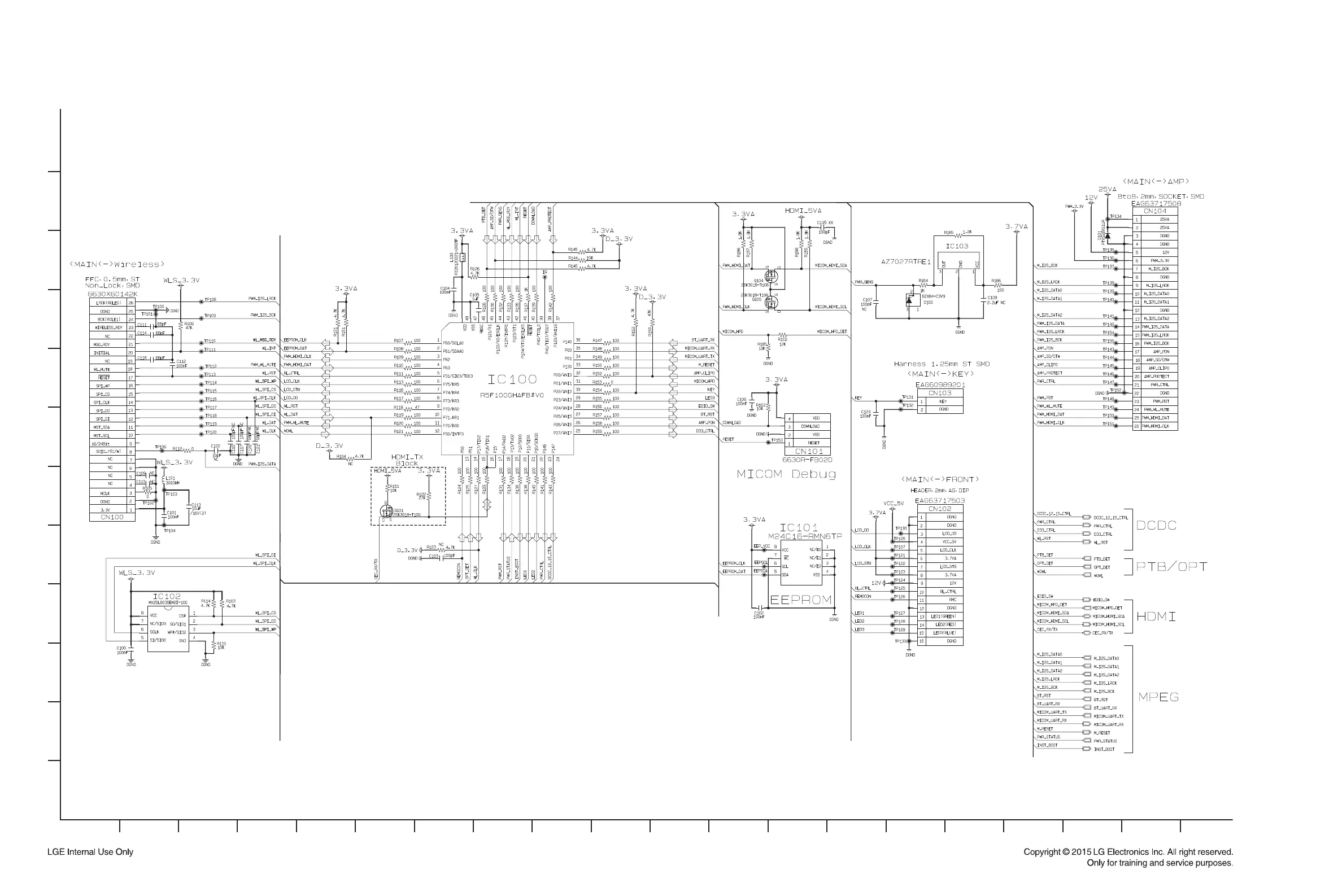

1. MAIN - MICOM CIRCUIT DIAGRAM
