LG LAS751M - Amp - Pwm Circuit Diagram

LG LAS751M
91 pages
Save Page as PDF
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
2-502-49
A
1
2
3
4
5
6
7
8
9
10
11
12
B C D E F G H I J K L M N O P Q R ST
PWM
EAX66367203_Rev1.0(0) AMP(#1)
2015.07.29

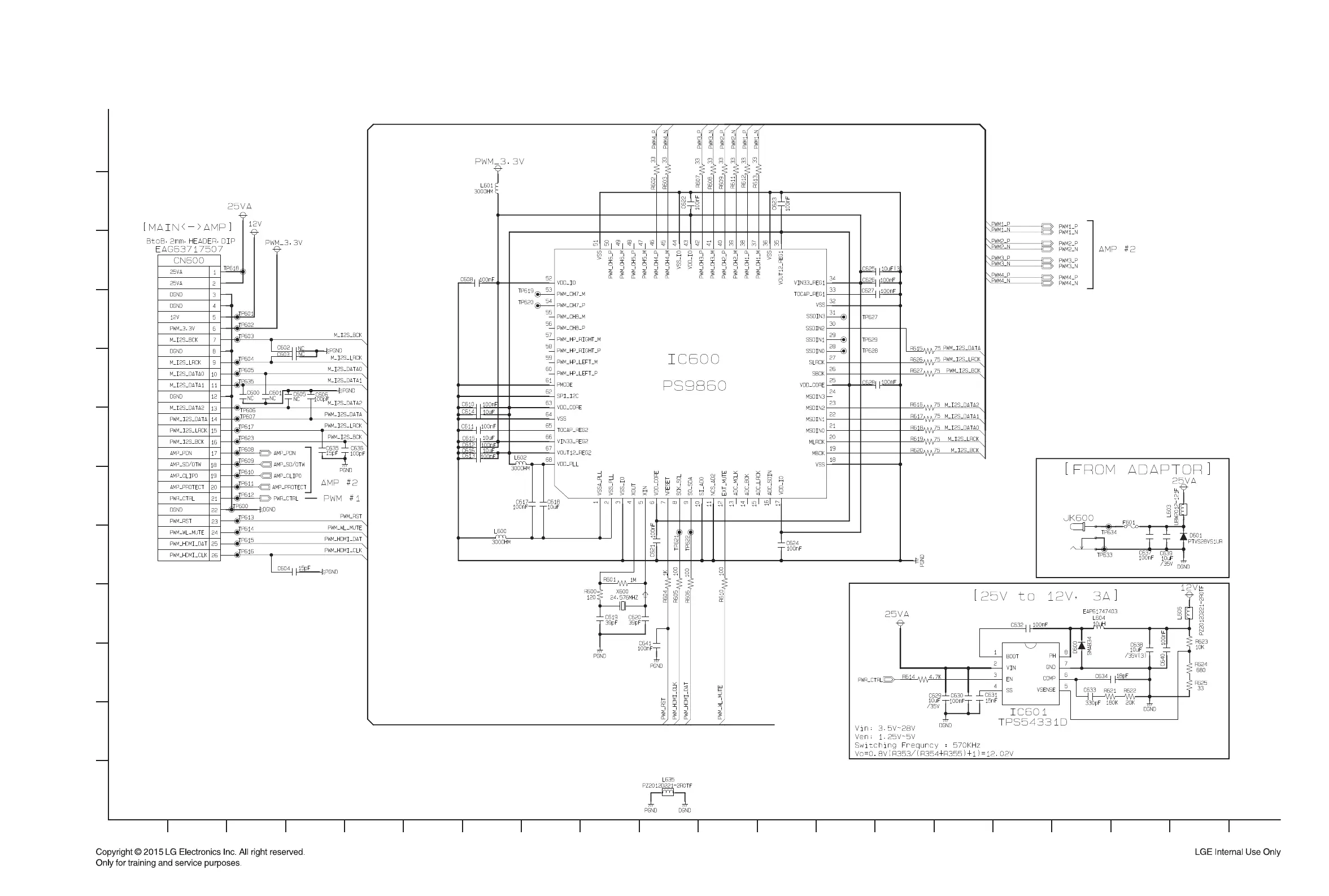

6. AMP - PWM CIRCUIT DIAGRAM
