Connecting 13
Connecting
2
Positioning the system

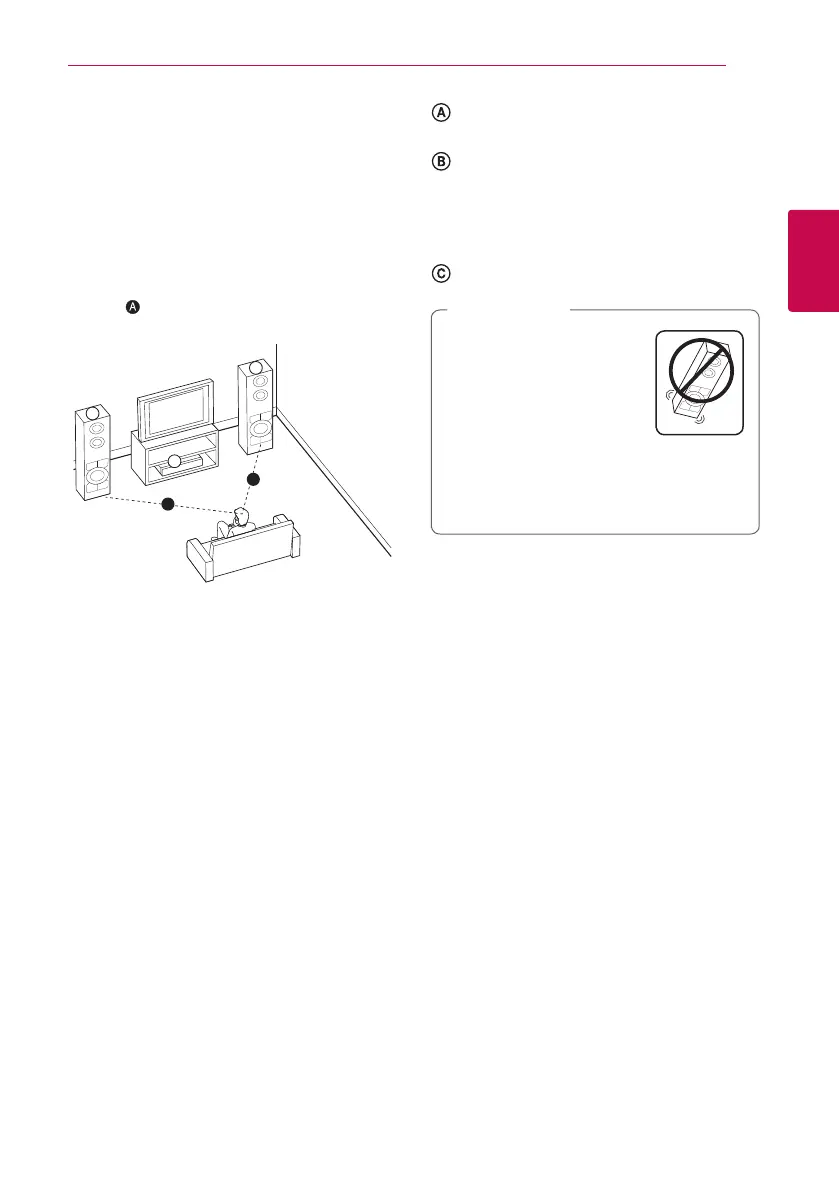

The following illustration shows an example of
positioning the system. Note that the illustrations
in these instructions differ from the actual unit for
explanation purposes.
For the best possible surround sound, all the speakers
other than the subwoofer should be placed at the
same distance from the listening
position ( ).
F
B
A
A
B
C
Front and Surround (Rear) speaker with built
in subwoofer (L)
Front and Surround (Rear) speaker with built
in subwoofer (R)
Place the speakers to the sides of the monitor
or screen and as ush with the screen surface as
possible.
Unit
y
Do not stack the speakers
and be careful that the
speaker should not fall down.
Otherwise it may result in the
speaker malfunction and
causing personal injury and/
or property damage.
y
Make sure to install the speaker with other
people in order to prevent it from falling and
causing injuries to the installer.
>
Caution

LG LHD687 Specifications

General

Audio decoders	Dolby Digital
RMS rated power	1250 W
Audio output channels	4.2 channels
Audio formats supported	LPCM
Total Harmonic Distortion (THD)	25 %
3D	No
Video upscaling	Yes
Video formats supported	MPEG, MPEG1, MPEG2, XVID
Analog signal format system	NTSC, PAL
Disc types supported	CD, CD-R, CD-RW, DVD, DVD+R, DVD+RW, DVD-R, DVD-RW
Playback disc formats	MP3
Optical disc player type	DVD player
Product color	Black
Equalizer modes	Bass Blast, Standart
Power consumption (typical)	145 W
Supported radio bands	PLL
Preset stations quantity	50
Front speaker impedance	3 Ω
Front speaker sensitivity	82 dB
Front speaker woofer diameter (imperial)	3 \
Wireless satellite speakers	-

Weight and Dimensions

Main unit dimensions (WxDxH)	360 x 58 x 298.5 mm
Front speaker dimensions (WxDxH)	233 x 998 x 300 mm
