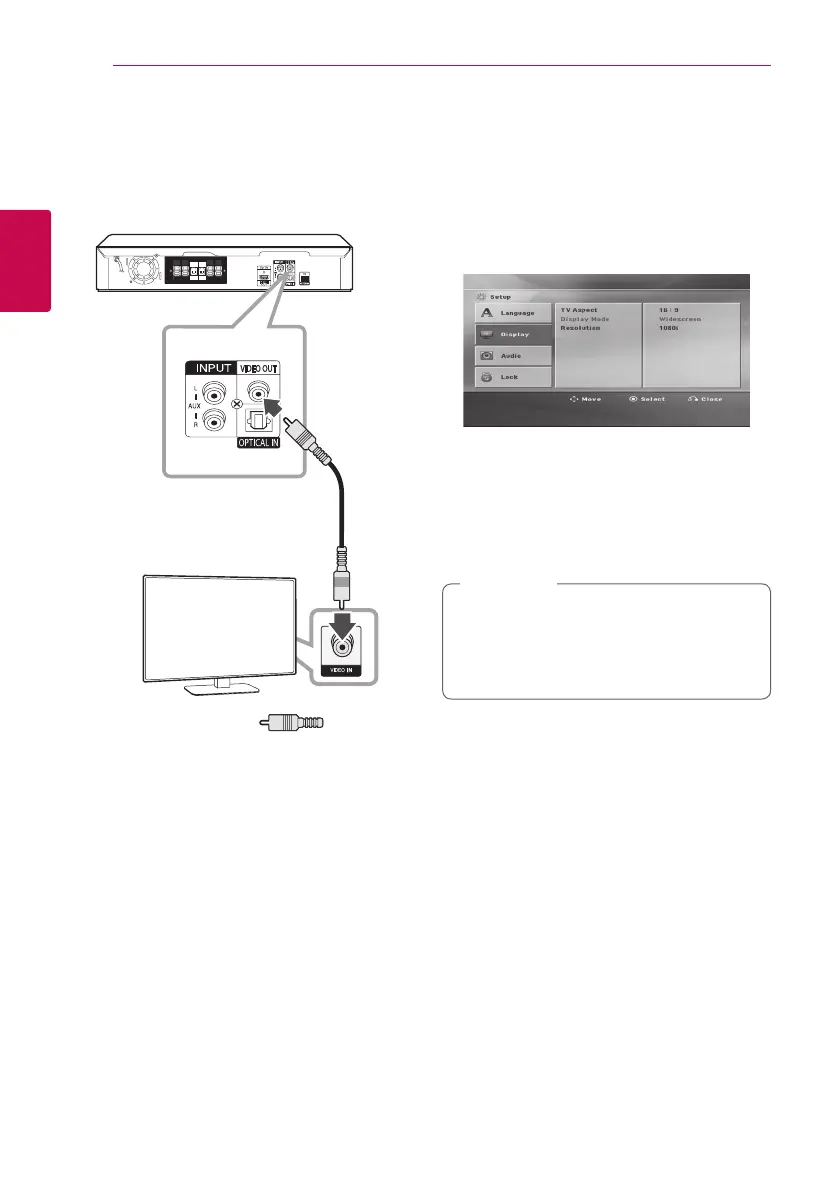

Video Connection
Connect the VIDEO OUT jack on the unit to the video
in jack on the TV using a video cable.
You can hear the sound through the system’s
speakers.
Yellow
Resolution Setting
The unit provides several output resolutions for HDMI
OUT.
You can change the resolution using [Setup] menu.
1. Press
n
HOME.
2. Use
A/D
to select the [Setup] and press
b
ENTER. The [Setup] menu appears.
3. Use
W/S
to select [Display] option then press
D
to move to the second level.
4. Use
W/S
to select the [Resolution] option then
press
D
to move to the third level.
5. Use
W/S
to select the desired resolution then
press
b
ENTER to confirm your selection.
If your TV does not accept the resolution you
have set on the unit, you can set resolution to
480p (or 576p) as follows:
Press
Z
STOP for more than 5 seconds.
,
Note

LG LHD687 Specifications

General

Audio decoders	Dolby Digital
RMS rated power	1250 W
Audio output channels	4.2 channels
Audio formats supported	LPCM
Total Harmonic Distortion (THD)	25 %
3D	No
Video upscaling	Yes
Video formats supported	MPEG, MPEG1, MPEG2, XVID
Analog signal format system	NTSC, PAL
Disc types supported	CD, CD-R, CD-RW, DVD, DVD+R, DVD+RW, DVD-R, DVD-RW
Playback disc formats	MP3
Optical disc player type	DVD player
Product color	Black
Equalizer modes	Bass Blast, Standart
Power consumption (typical)	145 W
Supported radio bands	PLL
Preset stations quantity	50
Front speaker impedance	3 Ω
Front speaker sensitivity	82 dB
Front speaker woofer diameter (imperial)	3 \
Wireless satellite speakers	-

Weight and Dimensions

Main unit dimensions (WxDxH)	360 x 58 x 298.5 mm
Front speaker dimensions (WxDxH)	233 x 998 x 300 mm
